Electrocautery-induced electrical interference on the electrocardiogram is mainly due to very high-frequency currents (radiofrequency range) of 800,000 to 1 million Hz (800–1,000 KHz).
What is tremor artifact?

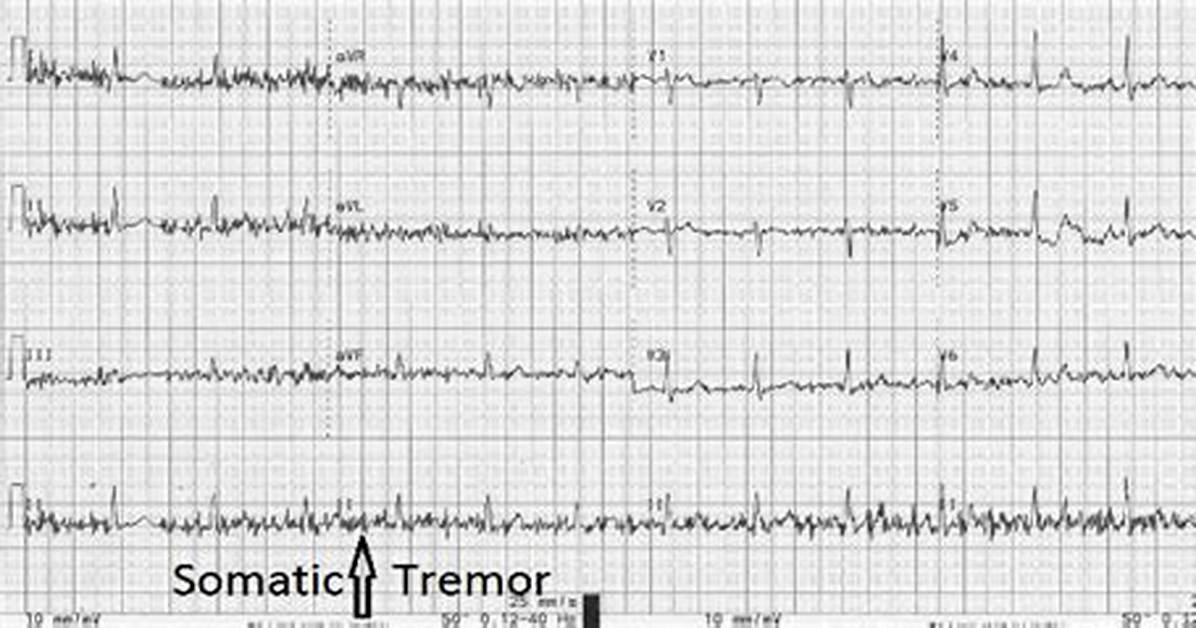

Muscle tremor artifact
Muscle tremor (or tension) artifact is a type of motion artifact. Usually it’s happening because your patient is cold and shivering. However, it can also happen when patients prop themselves up by their arms.
What causes artifacts on ECG?
Causes of electrical artifacts on ECGs are manifold. External artifacts are usually caused by line current, which has a frequency of 50 Hz or 60 Hz. Internal electrical artifacts can be caused by tremors, muscle shivering, hiccups or, as in the present case, medical devices.
How do I fix my wandering baseline?
Baseline wander is a low-frequency noise of around 0.5 to 0.6 Hz. To remove it, a high-pass filter of cut-off frequency 0.5 to 0.6 Hz can be used. Powerline interference (50 or 60 Hz noise from mains supply) can be removed by using a notch filter of 50 or 60 Hz cut-off frequency.
What are baseline ECG abnormalities?
Common new-onset abnormalities in subjects with normal baseline ECGs included sinus bradycardia, prolonged QT interval, non-specific T wave changes, R wave transition abnormalities, and sinus tachycardia.
What can interfere with an EKG?
Exercise or smoking before the test. Certain medicines. Electrolyte imbalances, such as too much or too little potassium, magnesium, or calcium in the blood.
What are three 3 reasons why the laboratory may reject ECG tracing?
Skin. Impedance.Muscle. Movement.Electrical. Continuity.Electrodes. Cabling.Interference. Equipment.
Why is it called 60 cycle interference?
Sixty-cycle noise usually originates from an external source, such as lights, motors, alternating current cables, etc. Noise may also originate from internal resistance within circuits or a broken 60-Hz filter. We had severe 60-Hz interference occurring in several operating rooms not traceable to any external source.
What artifacts is caused by muscle tremors?
When skeletal muscles undergo tremors, the electrical activity can cause the ECG to develop an irregular baseline. These muscle tremors are known to frequently cause ECG abnormalities that may mimic cardiac pathology, including ventricular tachycardia [3] and atrial flutter [4,5].
What does artifact mean on a stress test?
Answer • An artifact, in this context, is anything that can keep the test from being interpreted correctly. People often think of medical tests as definitive — the stress test shows that either you have blockages in the arteries in your heart or you don’t — but it usually is not so clear.
What causes muscle artifacts?
These are typically caused by muscle activity near the head, such as swallowing or head movements, and are characterized by high-frequency activity (> 20 Hz) [1]. Because muscle activity arises from different type of muscle groups, muscle artifacts are harder to stereotype than eye artifacts (cf.
How do you get rid of artifacts on ECG?
To remove undesirable artifacts, after creating ECG template, this signal was low pass filtered with cutoff frequency of 50Hz. Since the highest frequency power of the ECG signal is between 0.1 Hz and 45 Hz, cutoff frequency of 50Hz is the best choice.
How do you correct an artifact on an ECG?
Artifact when taking a 12 lead ECG is a very common occurrence, especially in a busy GP practice.
Reducing ECG artifact
Shaving or clipping the patient’s chest hair if present.Rubbing the skin vigorously with a gauze pad.Rubbing the skin with either isopropyl alcohol or soap and water to remove skin oils.
How do you remove motion artifacts from ECG?
An existing method to remove the motion artefact is to employ an accelerometer for measuring the body movement at the same time of ECG detection [5]. However, for non-contact electrode structure of ECG detection, an accelerometer directly attached to the human body is unacceptable.
What does baseline wander mean on ECG?
Baseline wander is a low frequency artifact in the ECG that arises from breathing, electrically charged electrodes, or subject movement and can hinder the detection of these ST changes because of the varying electrical isoline (Figure 1(a)).
Which arrhythmia is viewed as a common disruption in rhythm?
Atrial fibrillation
This disorganized heart rhythm occurs in the upper chambers of the heart. It’s the most common arrhythmia. Atrial fibrillation, or AFib, occurs when many unstable electrical impulses misfire and may result in the atria quivering out of control.
What is interrupted baseline?
interrupted baseline artifact is caused by. metal tip of lad wire becoming detached from alligato clip, broken patient cable. to correct interrupted baseline artifact. replace patient cable or attach metal tip of lead wire to alligator clip.
