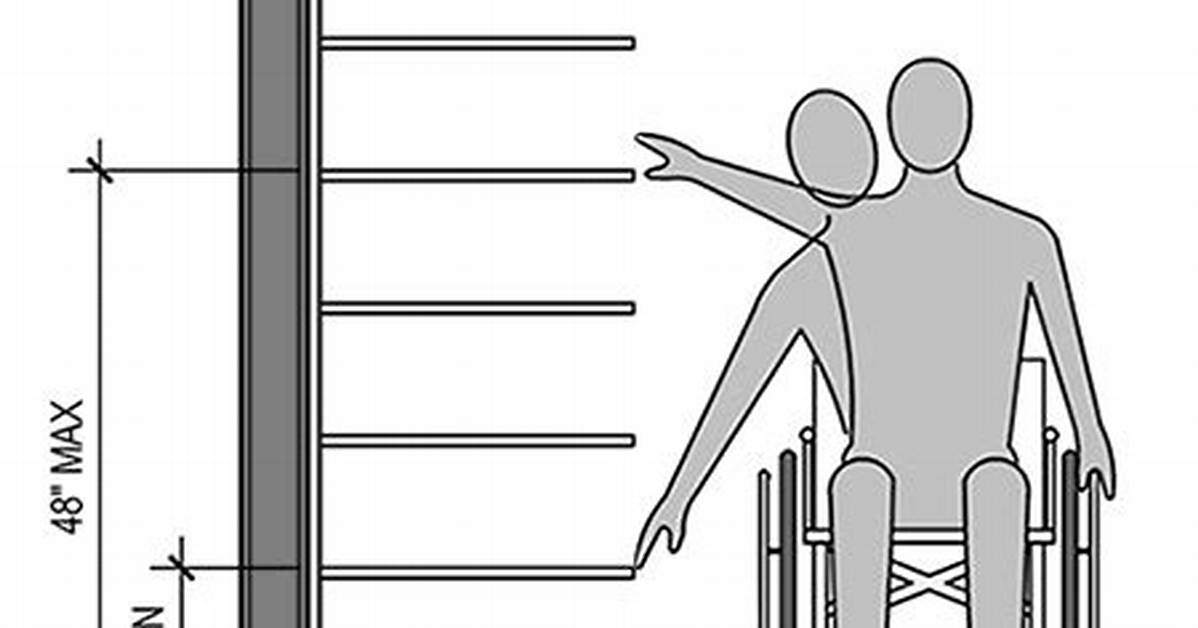

Facing a wall, surface or element — maximum reach height is 48 inches (1220 mm) and minimum low forward reach height is 15 inches (380 mm). Clear floor space 48 inches (1220 mm) deep and 30 inches (760 mm) wide.
How much clearance do you need for a wheelchair?
The minimum clear width for single wheelchair passage must be 32 inches at a point and 36 inches continuously. The space for a wheelchair to make a 180-degree turn must be a clear space of 60 inches in diameter or a T-shaped 30 inches by 48 inches of turning space.
What is ADA clearance?
The Americans With Disabilities Act sets guidelines that facilities in California must follow to make hallways wheelchair accessible. It requires that halls measure no less than 36 inches wide for commercial establishments, and the halls must provide a clearance space for turns.
What is ADA knee clearance?
Where knee clearance is required under an element as part of a clear floor space, the knee clearance shall be 11 inches (280 mm) deep minimum at 9 inches (230 mm) above the finish floor or ground, and 8 inches (205 mm) deep minimum at 27 inches (685 mm) above the finish floor or ground. 306.3.
What is ADA switch height?
There are many wall mounted controls whose heights should be taken into consideration including light switches, thermostat controls, elevator controls, doorbells, automatic door openers, etc. The ADA requires that light switches be placed anywhere from 15 to 48 inches.
What is the minimum ADA aisle width?
ADA Compliant Commercial Spaces
This means you must be sensitive to handicapped needs by reducing clutter, rearranging furniture, and making your aisles wide enough so there are no barriers to access. Generally, the minimum width of a clear aisle must be 32 inches or more to allow a general wheelchair to pass through.
What is the ADA mounting height for a receptacle?
Adult Unobstructed Reach Requirements
The receptacle height range for an unobstructed front or side reach is 15 inches minimum from the floor to 48 inches maximum.
How much space is required for a forward approach in a wheelchair?
For a forward approach, where the depth of the alcove is equal to or less than 24 inches (610 mm), the required clear floor space is 30 inches (760 mm) wide by 48 inches (1220 mm) deep.
What is the height of a handicap sink?
A sink should be mounted at a maximum 34” above the floor to the top rim with clear floor space underneath to allow for a forward approach. It is important to provide a knee clearance of 27” in height to the sink underside for at least an 8” depth.
How wide should a path be for a wheelchair?
Passageways should be wide enough to allow double buggies and/or wheelchairs to pass (i.e. at least 1.8 m wide in circulation routes).
What is the minimum space requirement for a person in a wheelchair as it applies to clear floor space needed for a kitchen sink or appliance?
A clear floor space at least 30 inches (762 mm) by 48 inches (1219 mm) that allows a parallel approach by a person in a wheelchair shall be provided at the range or cooktop.
Can a wheelchair fit through a 24 inch door?
Recommended Door Width for wheelchair Access
Most wheelchairs measure 24 to 27 inches wide from wheel to wheel. so as for a wheelchair to be operated and move freely through a door, the doorway should be a minimum of 32 inches in breadth .
Can a wheelchair fit through a 30 inch door?
A: Most wheelchairs have an average seat width of about 18in-22in and wheel-base of 23in-26in, so those sizes can fit through standard doorways that are 30-32″.
What is the most current ADA code?
The current accessibility code in the United States is the 2010 ADA Standards for Accessible Design. This code is governed by the US Department of Justice.
What is maximum slope for ADA ramp?
The maximum slope of a ramp in new construction shall be 1:12. The maximum rise for any run shall be 30 in (760 mm).
What is ADA accessible mean?
ADA compliance is short for the Americans with Disabilities Act Standards for Accessible Design. What that means is that all electronic information and technology—i.e, your website—must be accessible to those with disabilities. ADA compliance is often confused with 508 compliance.
