A Lally column is a round or square thin-walled structural steel column oriented vertically to provide support to beams or timbers stretching over long spans.

How much weight can a lally column support?

Lally columns typically range from about 3 feet to 14 feet tall. The shorter the column, the greater the weight it will support. For example, a 6 foot long, 4-inch diameter column has a maximum weight rating of up to 21,300 pounds. Increasing the length of the column drops its weight rating to 10,200 pounds.

What are lally columns what are its characteristic and how they are applied in the construction?

A lally column is an height adjustable, thin walled steel column typically of cylindrical cross section used to support construction elements. This kind of column can adjust to meet height requirements by means of a screw-out top plate or courtesy of a telescopic arrangement of inner members.

How much does it cost to have a lally column installed?

How Much Does a Lally Column Cost? Installing a Lally column starts at $2,500.

Can you screw into a lally column?

Or you can drill and screw to the column. They might be hard to find but a long ‘Tek’ type screw could work. Alternatively anything that you can predrill and screw using some type of thread cutting screw would work. Or you can drill yourself a hole and tap it to 1/4″ or 5/16″ and use a machine bolt.

Does a lally column need a footing?

Typically, lally columns are installed on top of a footing, and the basement floor is later poured to encapsulate the column. With my situation I already had existing footings, and the floor was in great shape. I only needed new permanent support columns.

Why are lally columns filled with concrete?

Normally, a lally column is filled in with concrete. The concrete in turn helps improve the structural stability of the lally column by providing compressive resistance. In addition, the concrete helps prevent local buckling in the lally column.

Should lally columns be filled with concrete?

The lally column itself should be made of steel and filled with concrete. On top of that, there should be a thick piece of steel with a cup welded onto it for the lally columns to go into. That piece of steel should be attached to the beam above.

How do you install a permanent Lally column?

Determine where you need the support of a lally column. Mark the beam at that spot. Dig the floor hole 2 feet deep using the shovel. Set up the hydraulic jack and post right next to where the column will go and lift the beam slightly, not more than 1/4 inch. Set the column in place on the footing.

Can I move a support post in my basement?

It is possible to move and/or remove support posts, but it is not at all simple to do. First, the size of the beam above the posts is calculated by the weight above and the distance between the supports for the beam. If you move a post, you will most likely have to strengthen or totally replace the beam above.

Can you remove a Lally column?

After a bit of research, I found that Lally columns can be safely removed with the assistance of a structural engineer and some steel reinforcement.

Are Lally columns hollow?

In proper modern construction Lally columns are not hollow, they’re filled with concrete – which resists bending under load.

What is the meaning of Lally?

Definitions of lally. support column consisting of a steel cylinder filled with concrete. synonyms: lally column. type of: support column. a column that supports a heavy weight.

Do basements need support posts?

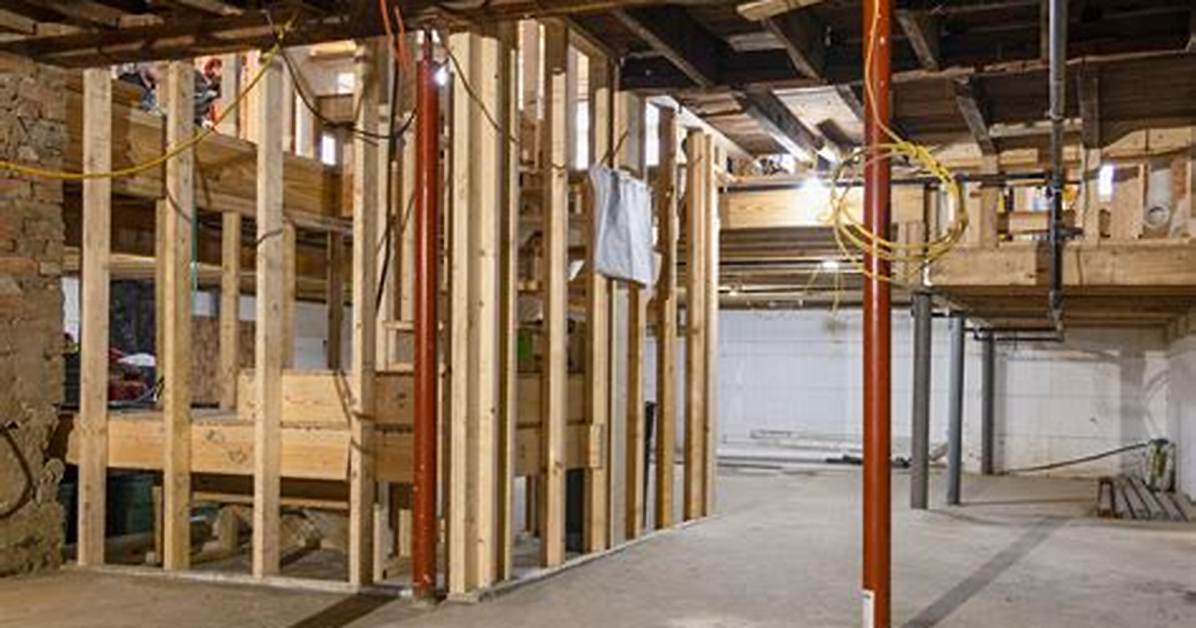

Basement support beams are essential since they serve a critical function. In addition to foundation walls, they hold up the inside weight of your house. You can see the ends of the basement support beams situated in the foundation wall and held up by at least one support post called lally columns.

Do all basements have support posts?

Are Basements Support Posts Necessary? Yes. Support posts act as support to structural beams, which are the horizontal bars where the walls and the floor joists of the house are attached. Basement columns also serve as supplemental tools when you’re renovating your basement and you need to move beams or foundations.

Can adjustable Lally columns be permanent?

Lally columns are non-adjustable, round-shaped steel pipes, often filled with high-strength concrete to provide support for extended horizontal structural members. Most importantly, they are permanent and there are clear, well-defined standards for their load-bearing capacities.
