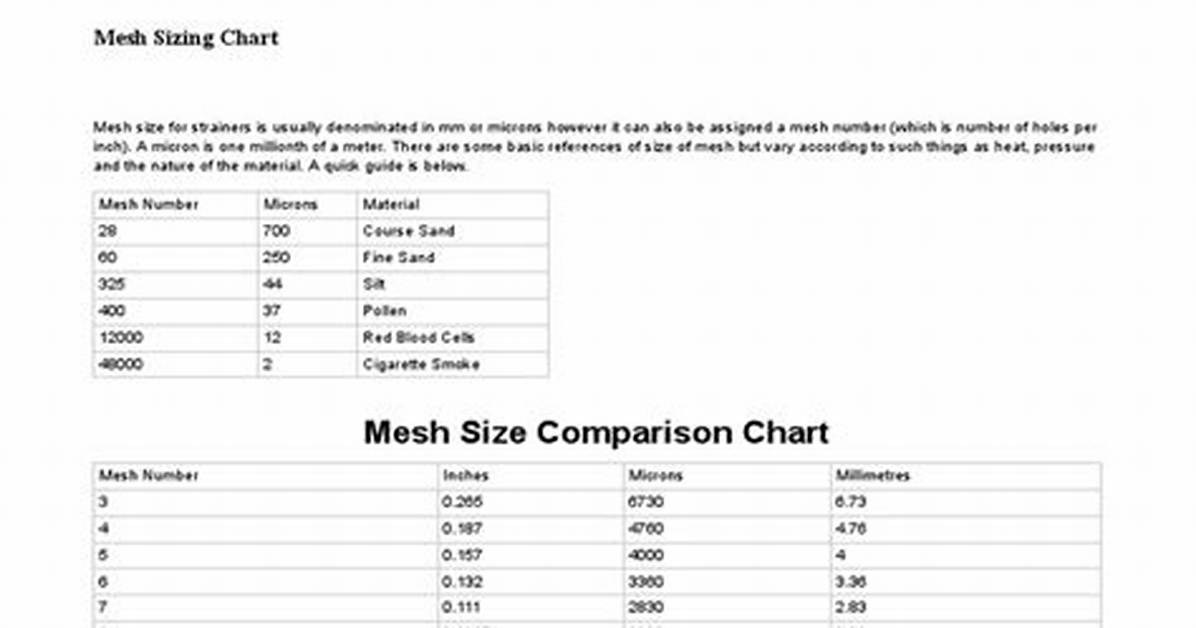

What does mesh size mean? Count the number of openings in one inch of screen (United States mesh size). The number of openings is the mesh size. So a 4-mesh screen means there are four little squares across one linear inch of screen. A 100-mesh screen has 100 openings, and so on.

How do you calculate mesh size?

Figuring out the mesh number is simple. All you do is count the number of openings in one linear inch of screen. This count is the mesh number. A 4-mesh screen means there are four little square openings across one inch of screen.

What does 200 mesh mean?

In ceramics, this refers to the particle size of a powder. A 200 screen has 200 wires per inch. The openings between the wires measure 74 microns (the width of a typical human hair).

What is 80 mesh sieve?

80 mesh is a medium size U.S. Standard mesh size with a 0.0070″ (180μm) nominal sieve opening with a typical wire diameter of 0.125mm. Die-formed frames assure a proper fit, superior quality and performance, guaranteeing that the American Society for Testing Materials (ASTM) specifications are always met.

What is the meaning of 50 mesh screen?

U.S. Mesh Size (or U.S. Sieve Size) is defined as the number of openings in one square inch of a screen. For example, a 36 mesh screen will have 36 openings while a 150 mesh screen will have 150 openings.

What does 43T mesh mean?

43T = approx 110 US. 140. 105. 55T = approx 140 US.

What does 120 mesh mean?

A 120 mesh screen means the openings are much smaller and that there are 120 openings per inch. The higher the mesh number, the bigger the particles that are allowed to pass through the strainer.

What is micron size?

A micron is a unit of measure in the metric system. It equals one-millionth of a meter and one-thousandth of a millimeter. It is a shorten word for micrometer. Micrometers measure things that are very small.

What is mesh micron?

Micron refers to the maximum size of a particle that can pass through the filter screen. Smaller microns result in finer filtration. On the other hand, mesh refers to the number of openings in the filter screens whereby larger mesh results in finer filtration.

What is 20×20 mesh?

36 Inch x 100 Ft Tiny Mesh 20 x 20

No-See-Um Screen, sometimes called 20×20 mesh screen is a finer mesh fiberglass to protect against no-see-um, gnats, sand flies, and other tiny insects common in low marshy and coastal areas.

What is a 30 60 mesh screen?

For example, a 30/70 or 30-70 grade would only have particles that are smaller than 30 mesh and larger than 70 mesh. The terms Mesh and Grit are often confused. The terms can be used interchangeably when referring to abrasive grit. A 60 mesh Aluminum Oxide can also be correctly termed a 60 grit Aluminum Oxide.

Is 200 or 400 mesh finer?

If you have 200, then it is 200-mesh and so forth. Therefore, the higher the mesh number, the smaller the particles that are filtered. That means the two measures run in reverse order, so a #10 mesh has openings of 2,000 microns and a #400 mesh has openings of about 37 microns wide.

What is finer 100 micron or 200 micron?

100 micron filter bags are made of 100 micron filter media, it can filter the particles in size larger than 100 micron. 200 micron filter socks are made of 200 micron filter media, it can filter the particles in size larger than 200 micron.

What size is a 200 sieve?

200 mesh is a fine size U.S. Standard mesh size with a 0.0029″ (75µm) nominal sieve opening with a typical wire diameter of 0.05mm.
