Add 36 inches in both directions for ease of traffic flow. For example, if the door overall width is 48 inches, the door requires a minimum of 24 inches in front and behind the door for operation, but for optimal operation, allow 60 inches to the front and to the back.
Can door clearances overlap?
Yes, clear floor or ground spaces and turning space can overlap other required clearances, including other clear floor spaces, door maneuvering clearances, and fixture clearances.
What makes a door pull ADA compliant?
In general, the requirements are a minimum of 32” in width and a maximum of 48” and the door must open to 90 degrees. Section 404 of the ADA states: “Door openings shall provide a clear width of 32 inches (815 mm) minimum.
How much room do you need around a door?
Ideally, there should be a gap of about 1/8 inch at the top and along each side, and about 3/8 inch at the bottom.
What is door swing measurement?
To determine the swing of the door, stand sideways in the doorway with your back to the hinges and look at the door. It’s a right-hand door if the open door is on your right side. The door is left handed if it’s on the left side.
What is the size of a standard inside door?
Standard Size for Interior Doors
The height for all passage doors must be a minimum of 80 inches and the standard width sizes for interior doors are 24”, 28”, 30”, 32” and 36”. The minimum recommended door width to allow persons with disabilities’ to pass through is 36 inches.
What is the radius of a door swing?
One way to determine the radius of your hinge is to get out a ruler or tape measure and measure from the top of the hinge down to where the rounded area of the hinge ends.
Can a door swing into door clearance?
Doors shall not swing into the clear floor space or clearance required for any fixture. Doors shall be permitted to swing into the required turning space.
Can grab bars be in door clearance?
Can elements with knee and toe space overlap the door maneuvering clearance? Grab bars and other elements cannot overlap the door maneuvering clearance but can be located within the 8 inches maximum offset from the face of the door.
Can a door swing in front of toilet?
In a toilet compartment, the door swing cannot overlap the floor clearance of the water closet. If the door swings into the clearance of a water closet inside the compartment will impede maneuvering inside the compartment.

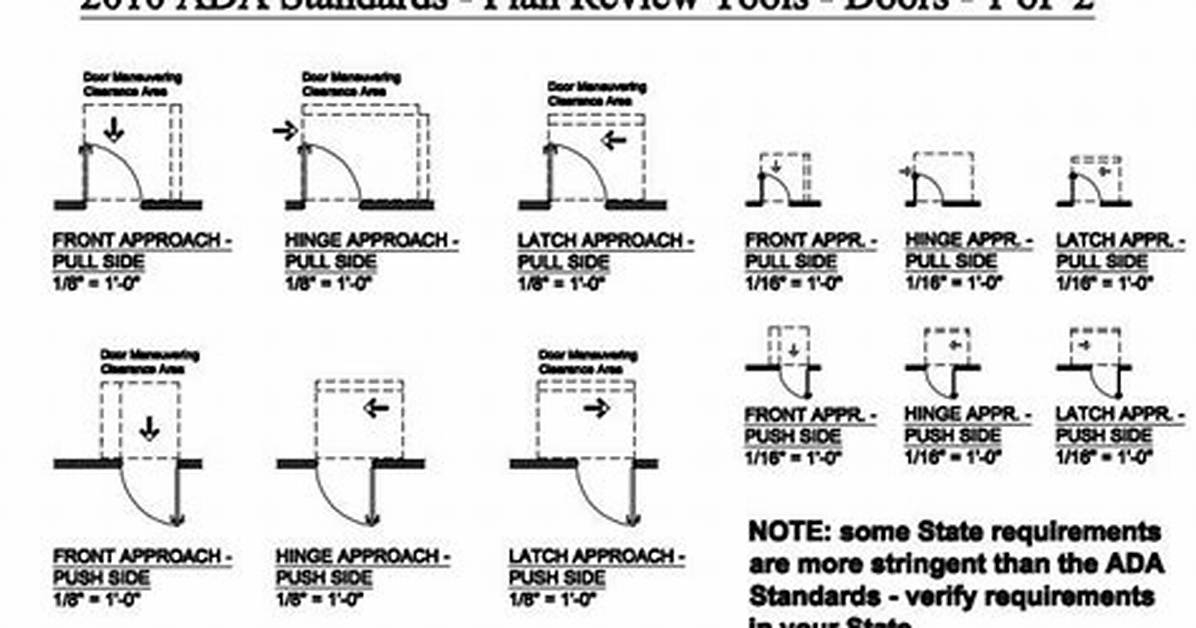

What is the minimum push side clearance at an accessible door?
Figure 25(a) Front Approaches — Swinging Doors.
Front approaches to push side of swinging doors, if not equipped with latch and closer, shall have maneuvering space that is the same width as door opening and extends 48 inches (1220 mm) minimum perpendicular to the doorway.
How wide does a door need to be to be ADA compliant?
Accessible doors should provide at least 32 inches of clear width. Clear width is measured between the face of the door itself and the opposite stop.
What is the ADA height for door handles?
Door Hardware – ADA compliant locks, exit devices, handles, pulls, latches, and other operable parts on doors shall comply – Operable parts of such hardware shall be 34 inches minimum and 48 inches maximum above the finish floor or ground.
How much gap should be under an exterior door?
1.5 inches. I’ve just paid a series of professionals to measure, order, install and paint a pre-hung exterior door. There is a 1.5-inch gap between the threshold and the bottom of the wooden door.
What is the gap between door and frame called?
When two individual windows or a door and window are joined, the seam between the frames of the two units is called the mull, which is short for mullion. In this case, a door jamb has been joined to a window/sidelight jamb.
