If you start your car without a shim, your car may sound like starter cranks and loud sound. You need to use a shim to avoid noises that the starter emits. There may be the many reasons for the starter noise including the starter may be too far or too close to flywheel teeth, loose mounting bolts and much more.
What happens if the starter is too close to the flywheel?

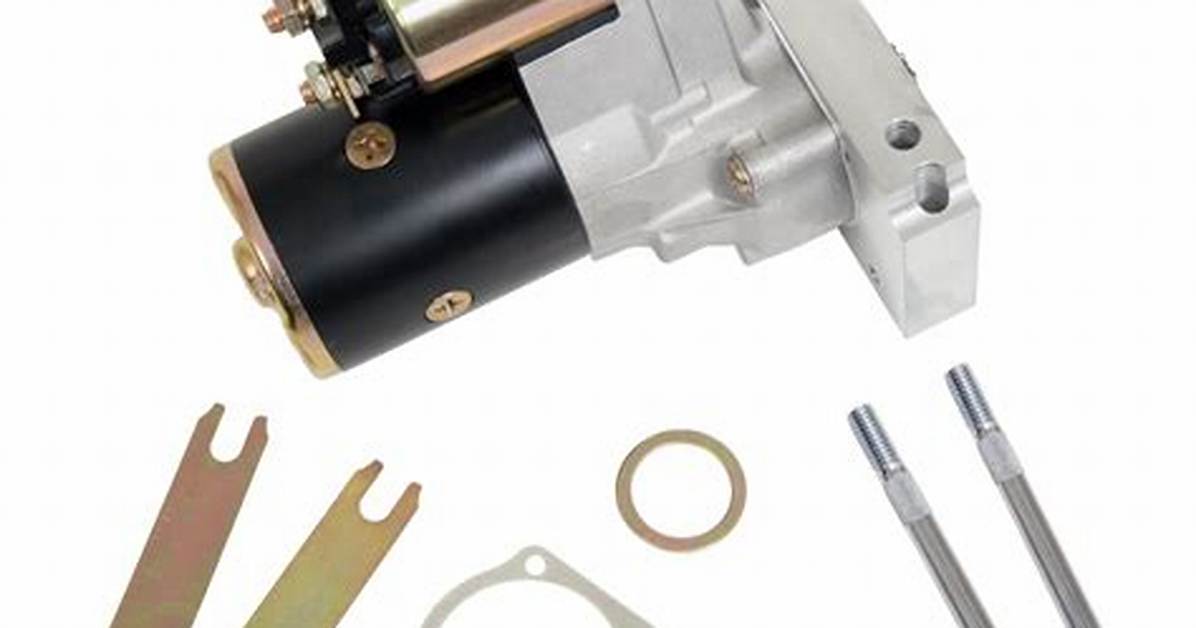

Typically, a new starter will make noise when it’s positioned too close to the ring gear on the flexplate or flywheel. Installing thin, steel shims between the block and starter is the method to eliminate the noise. Another problem that may cause starter noise is an out-of-round flexplate.
How many starter shims is too many?
If you need much more than . 10″ of shims, the nosecone casting is improperly machined. The more shims you install, the more chance you run of the the starter “rocking” while turning the engine and bending your bolts or cracking the bolt holes in the block (even with the front brace installed).
Why does my starter grind sometimes?
So, what is that grinding noise you hear when starting a car? Most likely, if it is true grinding that you hear, the problem is related to the starter. Causes include the starter not lining up correctly with the ring gear on the flywheel, missing or damaged gear teeth, or a faulty solenoid.
Why is my starter making a whining noise?
Freewheeling. Freewheeling occurs when you crank the engine and simply hear a whining noise without the engine cranking. When this occurs, it means the starter is not engaging with the flywheel. This is a worrying situation which could result in having to replace the whole component.
How do I know if my starter is misaligned?
Remove the starter from the vehicle and energize it with jumper cables to determine if the starter drive is properly moving the pinion gear into the cranking position. If the starter engages and cranks the engine, then skips and spins freely, there are two likely causes: Misalignment of the replacement starter.
How far should the starter be from the flywheel?
To insure proper meshing of starter pinion with flywheel ring gear, the distance or gap between the rear face of flywheel ring gear and front face of start pinion must not be more than 1/6” or less than 1/32”.
How many shims does a Chevy starter have?
Note: Do not use more than 3 shims on either side. When installing replacement starter motor: DO NOT use an impact gun or breaker bar to tighten bolts!
Can you shim one side starter?
However, you can put half shims under one side or the other. Outside to move the starter gear closerand shim the inside to move it further away. There is enough good in the worst of us and enough bad in the best of us that it does not behoove any of us to criticize the rest of us.
Why does my car growl when I start it?
A “rumbling growl” suggests a bad bearing on something like the water pump, idler pulley, or alternator, or perhaps something from the road caught behind a pulley. It is very unlikely it has anything to do with with oil pump, since a failure there would destroy the engine very quickly.
Why do I hear a grinding noise when I start my car?
The starter is a gear that helps to crank the engine and start it turning. If you stick the key in the ignition and you hear a grinding noise, it might mean the starter gear is worn. If you hear whining, it means the flywheel is not engaging, and you can damage your engine.
Why is my car making a clicking noise when I try to start it?
It might be a battery or alternator problem.
A rapid clicking noise when trying to start your car could mean there’s something wrong within the electrical system. Perhaps your battery’s dead, or your alternator, which charges the battery, isn’t working correctly.
