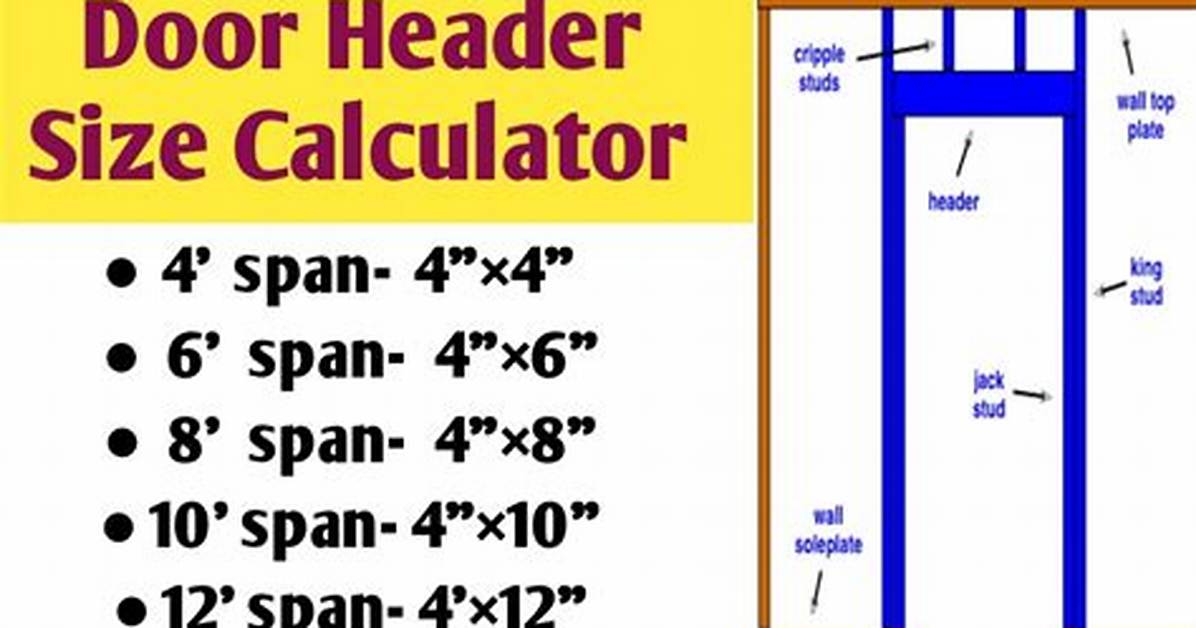

Measure the width of your door frame. Most door frames that are 4 feet wide or less require a 2-by-6 header. Between 4 and 5 feet, the header should be built 2 inches wide and 8 inches long while a larger opening needs a header that is 2-by-12. When in doubt, use 2-by-12-inch headers.
What size header do I need for a 6 foot span?
Since the architects and engineers who designed the houses had calculated that 2×12 headers were deep enough and sturdy enough to span the longest (6-ft.)
What size lumber is used for a door header?
Synopsis: Double 2×12 headers are still the standard for window and door openings, even though the IRC lists other options for headers that save lumber, minimize thermal bridging, and save space for insulation.
What size header do I need for a 10 foot span?
How far can a 4×10 header span:- as per general rules and guidelines, nominal size of a 4×10 header can span upto 10 feet. Thus, 10 feet is maximum allowable span for 4×10 size header. Therefore, for a span upto 10 foot, you needed 4×10 size header. 4×10 size header is needed for a 10 foot span or opening.
What size header do I need for a 36 door?
A typical header width with single jack studs is cut 3″ larger than the rough opening. An example: A 36″ door has a rough opening width of 38″ so your header is cut at 41″.
How do I know what size header to use?
If you are creating an opening no wider than 4 feet, for a door or smaller window, then you need a 2-by-6 header. If you are putting in an opening between 4 and 5 feet wide, then you’ll need two 2-by-8 headers. If the opening will be 5 to 6 feet wide, such as for double doors, then you will need two 2-by-10 headers.
How far can a 2×6 header span?
How far can a double 2×6 header span:- as per general rules and guidelines, a double 2×6 or 4×6 size of header made of #2 grade of Douglas fir- larch can allow span upto 4.5 feet far distance for one floor building and upto 3 feet for 2 floor in load bearing exterior windows & door opening or interior wall when
How do you calculate header beam size?
It went like this: Measure the span in feet and add 2 to that number. The sum will be the height of your double header in inches. For example, if the span is 4 feet, add 2 to 4 for a sum of 6. Therefore, the header would need to be made from doubled 2x6s.
What size header do I need for a 30 inch door?
For example, for a 30-inch door in a 32-inch rough opening, the headers will be 35 inches long to reach between the king studs and set atop the jack studs.
What type of wood is used for door headers?
Make a header by fitting two 2 x 8s around a 1/2-inch piece of plywood. Cut the header to fit between the king studs.
How tall is a door header?
82-1/2 inches also happens to be the standard “header height” for windows and doors. If you’re a novice framer then this is the height of the BOTTOM of the window and door headers.
What size header do I need for a 14 foot span?
What size LVL header size for 14 foot span:- as per general thumb rule and guidelines for a 14 foot span, size of LVL header or GLULAM should be 14 inches deep and 3.5 inches wide, thus you need something like 2- 1.75″× 14″ (2- 1 3/4″× 12″) GLULAM or LVL header to span upto 14 feet.
What size beam do I need to span 12 feet?
Thus, for a 12 foot span, you will need atleast 3-2×10 or 6×10 size of wood beam. For a 12-foot spans, the wood beam has to be at least 10 inches in depth and 6″ in width (3-2×10) used for residential building, wood frame structure or projects.
How far can a 2×10 header span?
How Far Can a 2×10 Beam or Header Span? A 2×10 beam – made up of two 2x10s nailed together – can span up to 11′ without support beneath a deck that is 4′ wide. For a more normal-sized deck, the same beam can span 8′, supporting a deck that is 8′ wide.
What size header is needed for a 18 foot span?
Thus, for a 18 foot span, you will need atleast 3-2×16 or 6×16 size of wood beam.
Do you need a header above a door?
Although essential for structural integrity, adding a header to a door frame may not be necessary. You will need a door header for heavy doors, exterior door frames, and load-bearing walls. Adding a header is only optional for interior door frames on non-load-bearing walls. Deciding for a door frame header is not easy.
