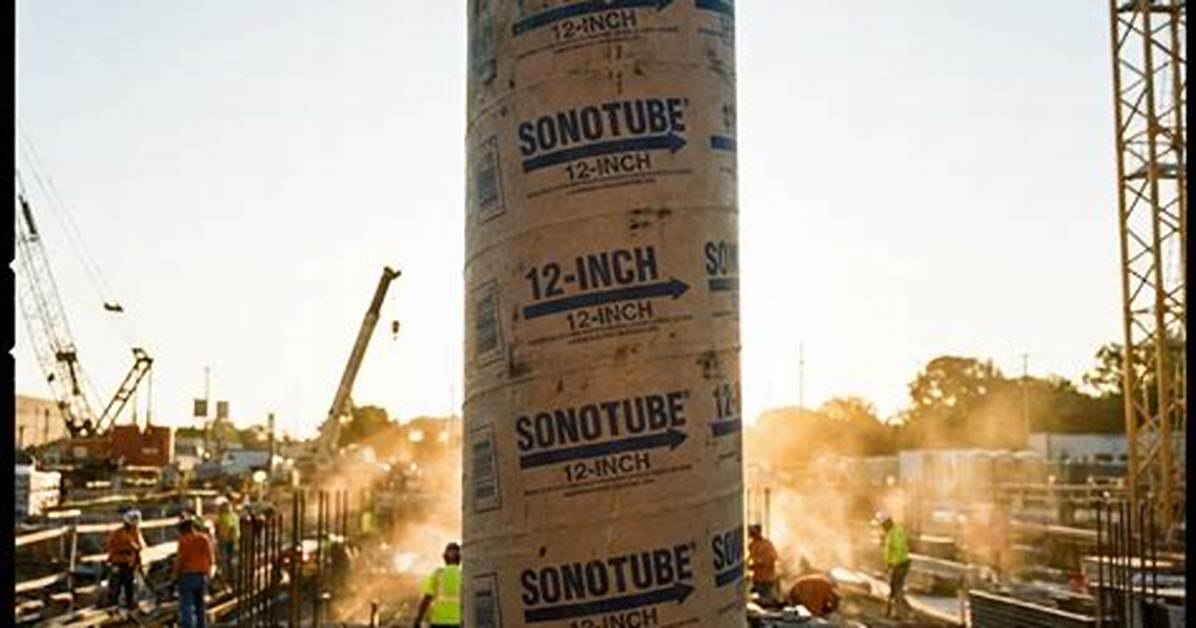

Sonotubes are cardboard tubes in which concrete is poured to create solid concrete, cylinder-shaped pillars. For people looking to install twenty-foot columns, sonotubes serve both a structural and esthetic purpose.
Do you leave sonotube in ground?
Your sonotube should only be below ground level a few inches, just enough into the hole to help hold it. Know how you are bracing your sonotube with 2×4, screws, and stakes.
Do I need rebar in sonotube?
We usually recommend that a minimum of two pieces of #4 rebar be placed vertically in an 8-inch-diameter concrete pier supporting a structure. A larger-diameter pier should have four or more pieces of vertical rebar.
What sizes does sonotube come in?
Quick Overview
Sizes available : 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 26″, 28″, 30″, 36″, 42″, 48″, 60″Rain-resistant technology keeps wet weather from impacting your pour.Easier to setup and brace.Superior strength-to-weight properties prevent blowouts, during concrete form setting.
What can I use instead of sonotube?
Pro Post Foundations screw piles in return, should be considered as your best alternative to concrete sonotubes.
How deep should my sonotube be?
Determine how deep you want your tubes. Dig down to the frost line before pouring the concrete. Frost lines vary depending on your region. Start by assuming you want a 10-inch diameter Sonotube that is about 3 feet deep.
How deep should piers be?
Thickness. The minimum thickness for a pier is 8 inches. The minimum thickness for pier footings is 8 inches or 1-1/2 times the length of the footing projection from the pier, whichever is greater.
Are there Square Sonotubes?
Sonotube Square concrete forms are available in standard lengths up to 20 feet, and in standard square column dimensions ranging from 12 x 12 inches to 24 x 24 inches. Custom sizes are also available for order.
Do I need rebar in deck footing?
Using Rebar for Concrete Deck Footings
Footings with large bearing areas or unstable soil can benefit from adding rebar to prevent cracking. When rebar is placed within a footing, it should be completely encased in concrete by a minimum of 3 inches on all sides.
When should a quick tube be removed?
They can be left in place or stripped away after the concrete has cured for 24 hours. For the easiest removal and the smoothest concrete finish, apply a release agent to the inside of the forms.
