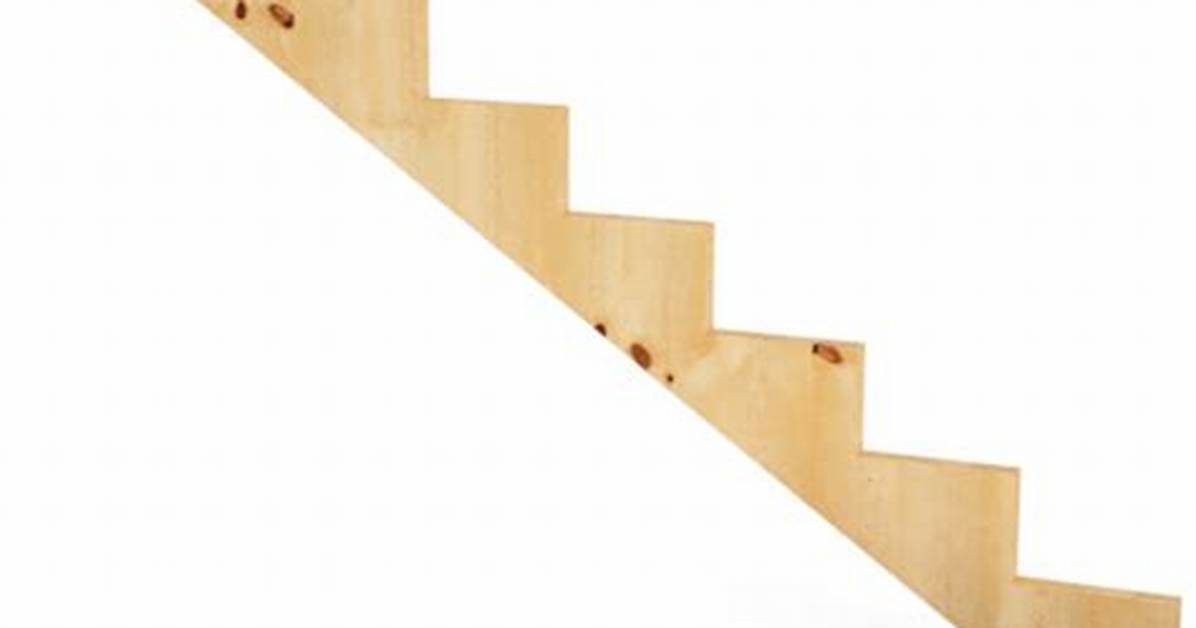

This product is a stringer that will install 8 stairs, with a total height of approximately 54-3/4″ high to the top step.
Do you use 2×10 or 2×12 for stair stringers?
It is acceptable and within building code guidelines to use either 2×10 or 2×12 dimensional lumber to create a set of stairs; however, a stair stringer should not be less than 3.5 inches wide at its narrowest point to provide adequate strength for the load the stairs will be supporting.
How do you calculate stringers?
How do I calculate stair stringers for a deck?
Measure your total rise. Figure out how many steps you will need. Lock in the exact rise per step. Determine the run of each step. Calculate the total run of your staircase. Sketch out your stair stringers using the dimensions you’ve calculated.
How far apart should stair stringers be?
Stringers should be spaced no more than 36 inches apart from each other for maximum stair support, according to the International Association of Certified Home Inspectors. However, local residential codes may vary slightly, so check the building codes before building a staircase.
How do you calculate stair risers?
To determine the number of risers in the staircase take the total height between floors, in inches, and divide by 8.25.
What size lumber is used for stair stringers?
Stringers should always be cut from 2x12s. Notching smaller stock doesn’t leave enough wood to safely carry the loads of a stair. When ordering stringers, allow about 14 inches of stringer length for each step. Look for straight stock with as few knots as possible.
What is a good rise and run for stairs?
The OSHA standard for rise and run of stairs is maximum 9.5″ rise and minimum 9.5″ run (tread depth).
How many stringers do I need for a 36 inch wide staircase?
If cut stringers are used in the stair construction, then at least three stringers are required. Cut stringers should be spaced no more than 18 inches on center. For example, a 36-inch-wide stairway should have three stringers. If the stairway is wider than 36 inches, four stringers should be installed.
What is the formula for calculating stairs?
Divide the overall change in level (overall rise) by 150mm.
450mm / 150mm = 3. This tells us that with a riser of 150mm we will need 3 risers/steps. 450mm / 2 = 225mm. Twice the Rise plus the Going (2R + G) should be between 550mm and 700mm. 2 x 150mm + 275mm = 575mm.
Can you use 2/10 stair stringers?
Pressure-treated or cedar 2×10 or 2×12 can be used depending on the depth of the cut-outs you’ll be using. By code you will need a minimum of 3-1/2″ of material left on the stringer after the cut-outs and that area should also be free of large knots which would weaken the stringer.
Do stair stringers need support?
Yes, the stringers need to be supported along their length, but they can span a few feet too, depending on 1) the width of the stairs, 2) the number of stringers, and 3) size of riser board. 1) The wider the stair the more load will be transferred to the stringers.
What size wood do you use for steps?
Stair treads are the horizontal boards that you step on. Stair treads may be made of a single 2×12, but are often made of two decking boards or 2x6s. A stringer is a wide board, usually a 2×12, that runs at an angle from the landing pad to the deck framing and supports the treads.
How long is a staircase for 8 ceilings?
The total length of a flight of stairs for an 8-foot ceiling is approximately 9-feet long. The total length of a flight of stairs for a 10-foot ceiling is approximately 12-feet long.
How many steps is 4 foot rise?
Use your minimum riser height; if you roundup, this would push the riser under the minimum limit. In Edmonton, the minimum is five inches. Nine rises (round down) with eight steps (minus one). A four-foot high deck can have a range between 6 and 8 steps.
