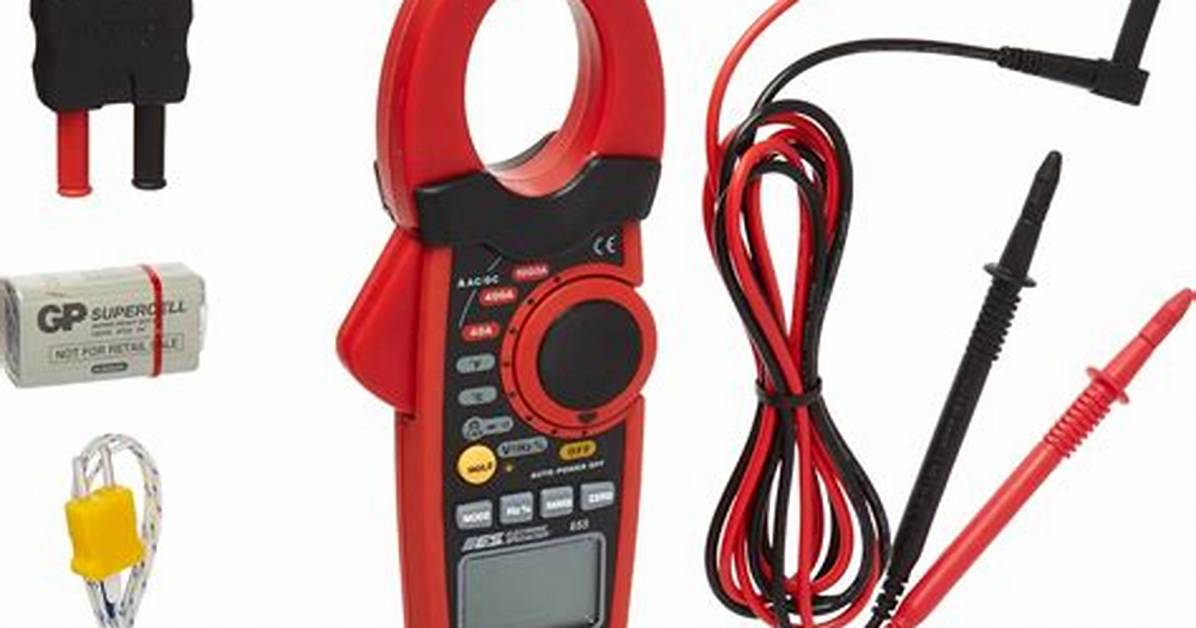

In electrical and electronic engineering, a current clamp, also known as current probe, is an electrical device with jaws which open to allow clamping around an electrical conductor.
What is an amprobe used for?
Amprobe AM-500 DIY-PRO Digital Multimeter
Use it to check for voltage in receptacles, extension cords, light fixtures, batteries, and other electrical circuits. Or check fuses, light bulbs, and continuity of electrical connections.
How does a current probe work?
Basically, current probes sense the current flowing through a conductor and convert it to a voltage that can be viewed and measured on an oscilloscope. The most commonly used technique to measure current is magnetic field sensing of a current carrying conductor.
What is current probe?
Current probes are used to measure control currents for relays in electronic circuits and in evaluation testing of capacitors’ current characteristics. When testing devices with electronic circuits to ensure that they operate as designed, it’s important not to overlook noise waveforms in the high-frequency band.
Is Fluke an amprobe?
As Amprobe is owned by Fluke, the largest instrument manufacturer in the world, you can rest assured that all their products are of the same meticulously high standards.
Is amprobe made in the USA?
Amprobe continued to design, manufacture and distribute products from its Lynbrook, NY location until it was merged to form ATP and relocated to South Florida in late 1999.
Can you check amps with a multimeter?
A multimeter is a great little tool used for testing and checking electrical circuits in your vehicle or electrical devices. The most common use is to check the voltage of electrical circuits, but they can also be used to check the Amperage and Ohms.
How do you check amps with a multimeter?
Insert the Test CD into the source unit. With the A.C. Voltmeter set to ~ AC VOLTS, in a range of 10 to 100 Volts, connect the voltmeter (+) test lead to a single channel of the amplifier (+) output. Connect the voltmeter (-) test lead to the same amplifier channel’s (-) terminal.
What is true RMS meter?
True RMS responding multimeters measure the “heating” potential of an applied voltage. Unlike an “average responding” measurement, a true RMS measurement is used to determine the power dissipated in a resistor. The power is proportional to the square of the measured true RMS voltage, independent of waveshape.
Who invented the clamp meter?
Amprobe invented the first clamp meter in 1948 and has continued to innovate and evolve. Today Amprobe offers several categories of clamp meters – from the rugged CAT IV rated Navigator Series, to the versatile Swivel clamp meters, to the compact mini-clamps.
What is volt meter?
voltmeter, instrument that measures voltages of either direct or alternating electric current on a scale usually graduated in volts, millivolts (0.001 volt), or kilovolts (1,000 volts). Many voltmeters are digital, giving readings as numerical displays.
What is a current probe with a multimeter?
Instruments such as digital multimeters, clamp meters, and current probes are used to measure current. Current probes, which can be used with oscilloscopes to provide optional measurement functionality, can measure DC and AC current.
How accurate are amp clamps?
Current clamps vary widely in accuracy. A high-end current clamp can get better than one percent accuracy, while less expensive current clamps range from five to ten percent accuracy.
Why are current probes so expensive?
Current probes (especially those with ability to measure DC) are much more sophisticated, having to provide flat response over a decent frequency range and being much more susceptible to all sorts of calibration problems and drifts.
