Plateau pressure is thought to reflect pulmonary compliance and can be measured by applying a brief inspiratory pause after ventilation. High peak pressure with normal plateau pressures indicates increased resistance to flow, such as endotracheal tube obstruction or bronchospasm.
Can the plateau be higher than the peak pressure?
Yes. In pressure-regulated modes of ventilation, plateau pressures can be higher than peak pressures if inspiratory efforts of the patient generate larger tidal volumes and significantly negative pleural pressures.
How do you calculate plateau pressures?
Plateau Pressure Calculation
Plateau pressure is largely impacted by lung compliance, which is a measure of the ability of the lungs to expand during inhalation. Lung compliance can be calculated by dividing lung volume by pressure.
How do I lower my plateau pressure?
Lower tidal volume (6 mL/kg per predicted body weight) ventilation is a strategy to reduce plateau pressure and driving pressure, roughly reflecting the level of alveolar overdistension.
What is the difference between PEEP and plateau pressure?
Peak pressure applies when there is airflow in the circuit, i.e. during inspiration. What determines the peak pressure is the airway resistance in the lungs. So it follows that if there is a problem with the airways the peak pressure will rise. Plateau pressure applies when there is not airflow in the circuit.
What is P plateau?
Plateau pressure is the pressure that is applied by the mechanical ventilator to the small airways and alveoli. The plateau pressure is measured at end-inspiration with an inspiratory hold maneuver on the mechanical ventilator that is 0.5 to 1 second.
What is a normal PIP on ventilator?
Normal peak inspiratory pressure (PIP) is 25-30 cm H2O. Peak inspiratory pressure (PIP) should be kept below 20 to 25 cm H2O whenever positive-pressure ventilation is required, especially if pneumothoraces, or fresh bronchial or pulmonary suture lines, are present.

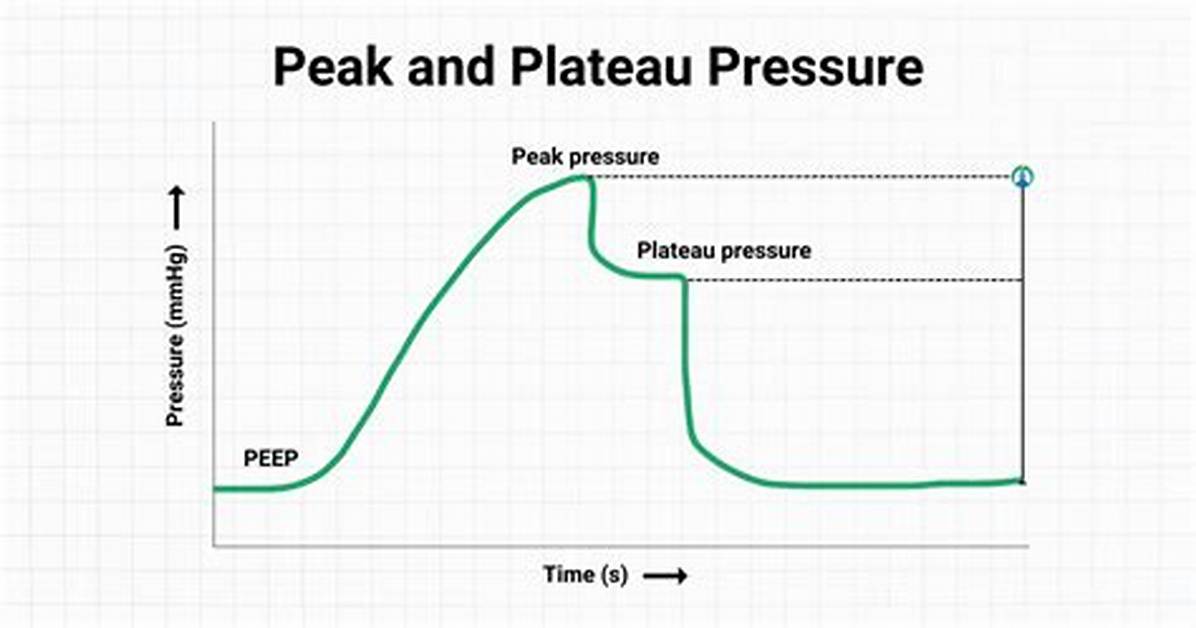

What is the difference between peak pressure and plateau pressure?
Peak pressure: This is the pressure that is generated by the ventilator to overcome BOTH airway resistance AND alveolar resistance. Plateau pressure: This is the pressure that is essentially left over in the lung after the tidal volume has been delivered.
