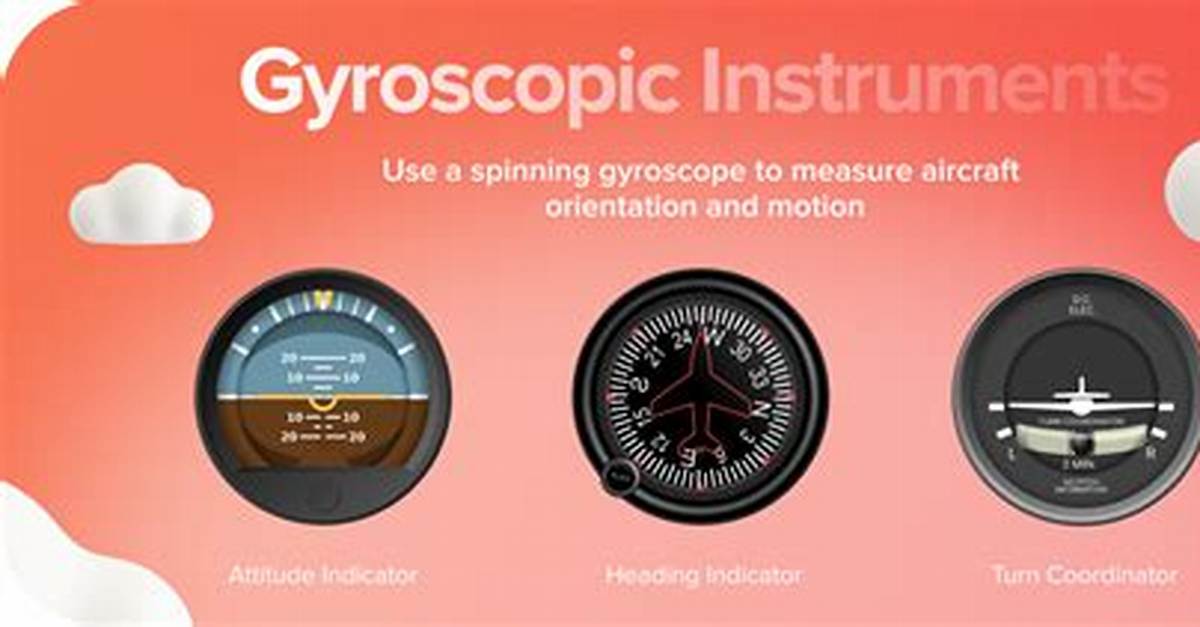

Normal instrument flight relies in part on three gyroscope instruments: an attitude indicator (artificial horizon), a heading indicator (directional gyro, or “DG”) and a turn and slip indicator (“needle and ball,” or “turn and bank,” or “turn coordinator”).
What is the name of a gyroscopic instrument?
The most common instruments containing gyroscopes are the turn coordinator, heading indicator, and the attitude indicator.
How many gyroscopic instruments are there?
While the three main gyro instruments use the same principles, there are significant differences inside the cases. The artificial horizon, for example, contains the gyro wheel spinning on the vertical axis.
How are gyroscopic instruments are powered?
Originally, gyroscopic instruments were strictly vacuum driven. A vacuum source pulled air across the gyro inside the instruments to make the gyros spin. Later, electricity was added as a source of power. The turning armature of an electric motor doubles as the gyro rotor.
Is the magnetic compass a gyroscopic instrument?
Introduction. The gyromagnetic compass is a horizontal gyro slaved to magnetic north by a magnetic field detector (flux valve) usually located in the wing tips of the aircraft away from metal structure.
What are the 6 basic flight instruments?
The Original Aviation 6 Pack
Altimeter.Airspeed Indicator.Vertical Speed Indicator.Attitude Indicator.Heading Indicator.Turn Coordinator.
Do airplanes have gyroscopes?
In aircraft instruments, gyros are used in attitude, compass and turn coordinators. These instruments contain a wheel or rotor rotating at a high RPM which gives it two important properties: rigidity and precession. The rotor or gyro can be electrically or vacuum / pressure driven by a special pump on the engine.
Why are gyroscopes important?
Gyroscopes are devices that measure the speed at which an object is turning. They are needed to help Hubble turn and lock on to new targets. Gyroscopes maintain orientation and provide stability in boats, aircraft and spacecraft based on the principles of angular momentum.
What are the types of gyroscope?
The following are the three types of gyroscopes:
Mechanical gyroscope.Optical gyroscope.Gas-bearing gyroscope.
Do helicopters have gyroscopes?
Since a helicopter’s main rotor acts like a gyroscope, this principle applies to the rotor disc. To understand what this means for a helicopter we need to know the basics of how a rotor disc tilts in the direction commanded by the pilot.
How are gyroscopes used?
Gyroscopes are used in compasses and automatic pilots on ships and aircraft, in the steering mechanisms of torpedoes, and in the inertial guidance systems installed in space launch vehicles, ballistic missiles, and orbiting satellites.
Which of the six main instruments are gyroscopic?
The gyroscopic instruments include the Attitude Indicator (AI), Heading Indicator (HI), and Turn Coordinator.
Pneumatic and Electrical Gyroscopes. Rigidity in Space. Precession. The Attitude Indicator. The Heading Indicator. The Turn Coordinator. The Airspeed Indicator. Altimeter.
What is the importance of gyroscopic flight instruments?
This principle allows the gyro to determine a rate of turn by sensing the amount of pressure created by a change in direction. The rate at which the gyro precesses is inversely proportional to the speed of the rotor and proportional to the deflective force.
What is the properties of gyroscope?
There are two fundamental properties of gyroscopic action: rigidity in space and precession. Rigidity in space refers to the principle that a gyroscope remains in a fixed position in the plane in which it is spinning. An example of rigidity in space is that of a bicycle wheel.
What is difference between gyro compass and magnetic compass?
A gyrocompass is a type of non-magnetic compass which is based on a fast-spinning disc and the rotation of the Earth (or another planetary body if used elsewhere in the universe) to find geographical direction automatically.
What is gyroscope compass?
A Gyro compass is a form of gyroscope, used widely on ships employing an electrically powered, fast-spinning gyroscope wheel and frictional forces among other factors utilizing the basic physical laws, influences of gravity and the Earth’s rotation to find the true north.
How does a gyroscopic compass work?
gyrocompass, navigational instrument which makes use of a continuously driven gyroscope to accurately seek the direction of true (geographic) north. It operates by seeking an equilibrium direction under the combined effects of the force of gravity and the daily rotation of Earth.
