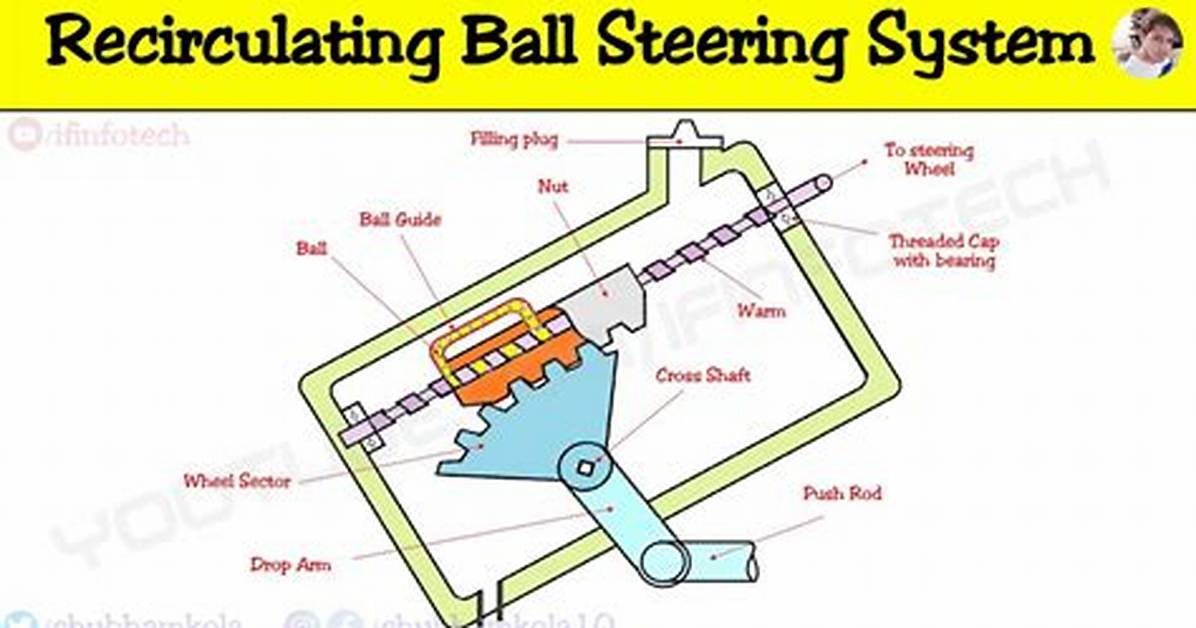

The recirculating ball steering mechanism contains a worm gear inside a block with a threaded hole in it; this block has gear teeth cut into the outside to engage the sector shaft (also called a sector gear) which moves the Pitman arm.
Why is rack and pinion steering better than recirculating ball?
Hemmings also notes that the rack and pinion steering system weighs less than a recirculating ball gearbox, which helps improve gas mileage. Rack and pinion systems are lighter because they don’t require the idler arms, Pitman arms, center links, and tie rod sleeves found in conventional steering systems.
What are the 3 types of steering?
How do the Three Power Steering Systems Differ?
Hydraulic Power Steering.Electro-Hydraulic Power Steering.Electric Power Steering or Motor-Driven Power Steering.
What cars use recirculating-ball steering?
Recirculating-ball steering is used on many trucks and SUVs today. The linkage that turns the wheels is slightly different than on a rack-and-pinion system. The recirculating-ball steering gear contains a worm gear. You can image the gear in two parts.
What are two advantages of mounting the recirculating-ball steering box behind?
There are several advantages to recirculating-ball systems. First, by varying pitman arm length you can easily offer more or less steering travel than a rack-and-pinion system. Second, it is typically less expensive than converting to a rack-and-pinion system, perfect for someone on a budget.
Which is better rack and pinion or power steering?
So there is less friction with the rack and pinion, and the steering feels more responsive and compact, so you get a better driving experience. The rack and pinion system is also lighter and is more efficient than the recirculating ball system.
What is the more common steering system used today?
Rack And Pinion Steering System
The most common steering system, the rack and pinion gets its name from the two gears it uses, the rack (the linear gear) and the pinion (circular gear). This system is used in most cars and is usually not employed in heavy-duty vehicles.
Is rack and pinion steering still used?
While there are several types of steering systems used on the market, the two main ones are recirculating ball steering, which is mostly used for heavy vehicles, trucks and larger SUVs, and rack and pinion steering, which is commonly found on cars, small trucks and SUVs.
Which steering is the best?
Electric power steering provides better fuel economy
This method reduces the amount of weight in the vehicle. Also, the EPS system doesn’t use power from the engine as the hydraulic systems do. Overall, the electric power steering system is more efficient.
What are the 2 types of steering systems?
There are two main types of steering gears used for most modern vehicles: the rack and pinion steering gear and the recirculating ball steering gear.
What is crab steering?
Crab steering simply put is omnidirectional steering. On your ordinary car the front two wheels are rotated clockwise or counterclockwise about their Y-axis to give you the ability to steer. Crab steering uses this concept, but instead rotates all the wheels in the same direction to move in a line in that direction.
When was recirculating ball steering invented?
General Motors pioneered this design and the first application was for the 1940 Cadillac model 72.
Why is rack-and-pinion better?
Advantages of the rack-and-pinion systems are many. First is its simplicity. With only two moving parts there is not only less friction, but the positive engagement of the system gives a very tight and responsive feel to the steering.
Do new cars have rack-and-pinion?
Modern cars use a steering system called rack-and-pinion steering. A steering wheel sits in front of the driver’s seat and is responsible for giving the driver feedback about what the wheels are doing while also allowing the driver to control which direction the wheels are pointed in by turning the wheel.
Which is better power steering or manual?
Power steering makes things much more enjoyable and lessens fatigue, allowing the driver to focus on other things or drive for longer periods. I’ve had some sports cars that have had manual steering, but they were really light cars and the steering was still relatively heavy. Racing is a different story.
What is the purpose of recirculating ball type steering gear Mcq?
Explanation: The reciprocating ball type steering gear serve the purpose of reducing the friction and wear of the gear.
Does rack and pinion affect power steering?
The power steering makes it easier to steer, but adds complexity to the compact rack and pinion system, which can make it more difficult (and expensive) to repair. Adding power steering to a rack and pinion steering system changes the design slightly.
