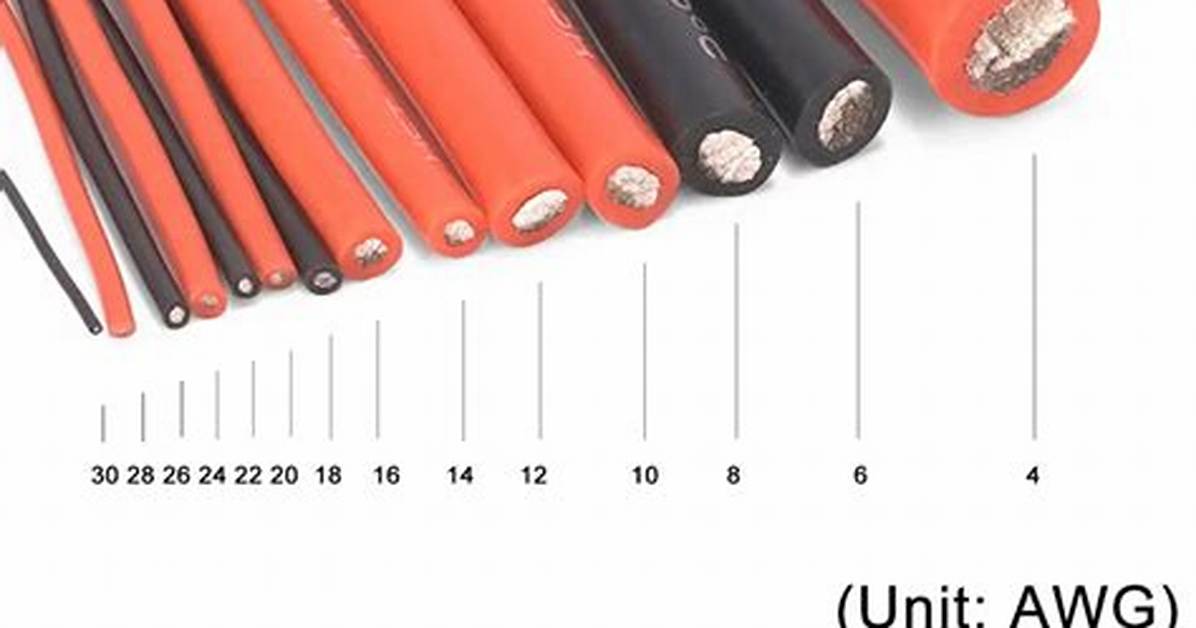

The gauge of a wire refers to its thickness. Each gauge is represented by a number, with smaller numbers representing thicker wire gauges and higher numbers signifying thinner wires.
What is 12 gauge wire used for?
12-gauge are used in kitchen, bathroom, outdoor receptacles, and 120-volt air conditioners supporting 20 amps. 10-gauge are used in electric clothes dryers, 240-volt window air conditioners, electric water heaters supporting 30 amps.
What is GA and AWG?
ga, short for “gauge” as in AWG or American Wire Gauge. same thing. the size will differ a bit depending on strand count and if you’re talking stranded or solid core.. but the sizing is standardized. Seth Lowe. Silver Member.
Can 12 gauge handle 20 amps?
The next size larger is 12-gauge wire, which can carry up to 20 Amps. The wire size that has been chosen affects the Amp rating of a circuit breaker. A 20-amp breaker is not allowed to run circuits with 14-gauge wires.
Can 12 gauge wire handle 30 amps?
You should not use a 30-amp circuit breaker on a 12-gauge wire. The circuit breaker installed on a circuit is of a specific size to protect a certain wire gauge. A larger breaker on a thinner wire will allow more current over the wire before tripping.
Is higher AWG better?
In general, a lower AWG number is better than higher AWG. AWG is of primary importance for wires that will carry electrical power — for example, home or business electrical wiring, extension cords or high-power wire in automotive or audio use.
How do I choose wire gauge?
To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.
Which is thicker 8 gauge or 10 gauge wire?
The general rule of thumb is that the smaller the gauge number, the thicker the cable. The standardized method of measuring the thickness of a cable was established in 1857 in the United States.
Should I use 12 or 14 gauge wire?
A 14 gauge wire carries a limited current load of only 15 amperes. A 12 gauge wire can handle more current without overheating, which is better than the 14 gauge wire. A 12 gauge wire is also suitable for lights because it has less resistance due to its larger diameter.
Which is better 12 gauge or 14 gauge?
The first thing to understand is the gauge system. Gauge is the measurement used to measure the thickness of steel. In the gauge system the higher the number the thinner the steel. As an example, 12 gauge steel is thicker and stronger than 14 gauge steel.
Is it OK to use 12 gauge wire on a 15 amp circuit?
Because it has even less chance of overheating, 12-gauge wire is also acceptable on a 15-amp circuit.
Is 12 AWG the same as 12 gauge?
AWG is the wire standard (ie – the way it’s made). The wire gauge simply refers to the sizing of the wire (the thickness). 12 AWG is equivelent in size to 12 gauge wire, but “12 gauge” wire can be a variety of things whereas “12 AWG” is 12 gauge wire made according to the AWG standard.
What does GA stand for gauge ??
Specifying Sheet Metal Thickness
Then we use hands for horses and “gauge,” written as “ga”, for metal. Gauge is a dimensionless number sometimes spelled “gage.” and confusingly, it works backwards. Usually a bigger number means there’s more of something but 18 gauge steel is thinner than 16ga, not thicker.
How far will 12 gauge wire carry 20 amps?
After these distances, the circuit will go over the recommended 3% voltage drop. You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.
What size wire is required for a 30 amp breaker?
30 AMP Wire Size
For a maximum of 30 amps, you’ll need a wire gauge of 10. The most common household item that requires a 30 amp circuit is a central air conditioner. Often, people living in RVs use 30, and sometimes 50, amp systems to run all the appliances in the vehicle.
How many receptacles can be on a 20 amp circuit?
The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.
