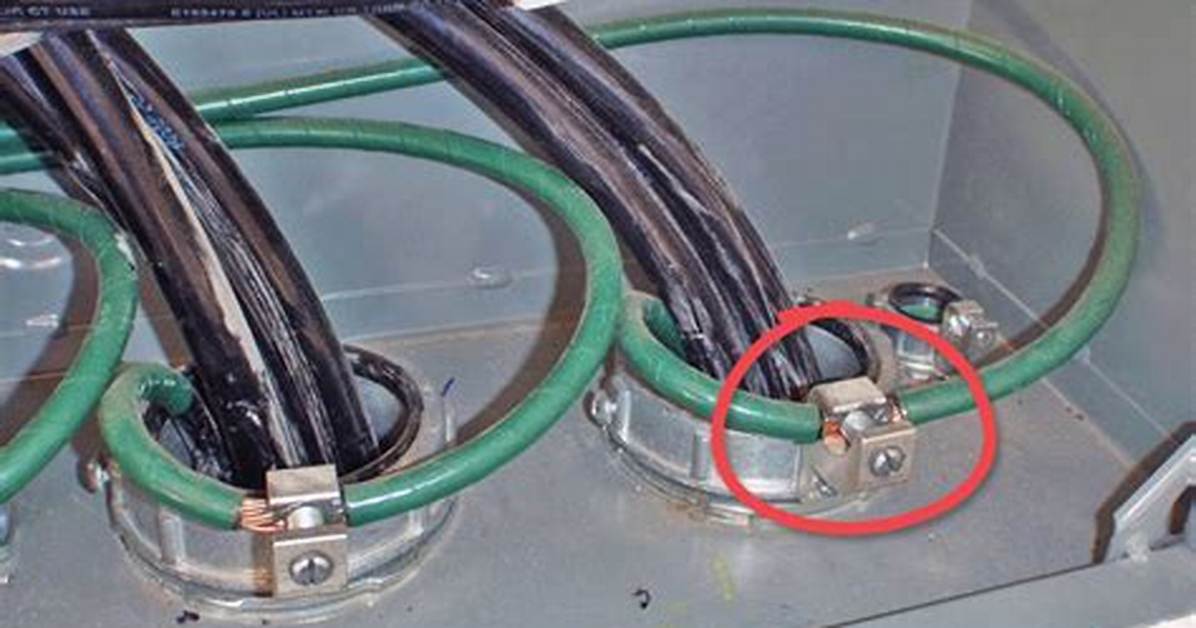

Crouse-Hinds series grounding bushings are used with threaded and threadless rigid/IMC conduit to provide a means of grounding conduit through an insulated bushing.
Where are grounding bushings required?
You need a bonding bushing if: Your raceway contains service conductors. Your raceway contains grounding electrode conductors. In fact, you may need one on both ends, for GEC performance.
Are grounding bushings required?
The National Electrical Code (NEC) Articles 250.64 & 250.92 require the use of a grounding bushing. In addition, NEC Articles 344.46 & 300.4(G) require a bushing with conductors 4AWG or larger. 1. Prepare conduit by squarely cutting the conduit to the desired length and deburring conduit end.
What is the purpose of a bonding bushing?
Bridgeport’s grounding and bonding bushings are used to properly bond and terminate service conduits to a cabinet, box or enclosure.
What is bonding vs grounding?
Bonding. Bonding is the connection of non-current-carrying conductive elements like enclosures and structures. Grounding is the attachment of bonded systems to the earth. Both are necessary to safeguard people and property from electric hazards.
Is a ground wire required in metal conduit?
Conduit (RMC, IMC or EMT) is an NEC-accepted ground path. So, if the wires are in steel conduit, no OTHER ground wire is required.
What is a grounding locknut?
3/4“ grounding locknuts are used on 3/4” threaded conduits or connectors to bond locknuts when additional locking and grounding connections are required, such as when severe vibration is encountered.
What is a bonding locknut?
Used in harsh vibration environments to fasten threaded conduit to unthreaded opening in a box or enclosure.
What is a conduit bushing?
Bridgeport’s insulating bushings are used to protect conductors inside rigid or IMC conduits when entering a box or enclosure. The edges of the bushing provide a smooth surface to help prevent damage to wire insulation.
What is the grounding electrode conductor?
Basically, a grounding electrode is a conductive object that establishes a direct connection to the earth or ground. The important part is that a grounding electrode has direct contact with ground. There are lots of conductive objects within a structure, however, not all of them establish a direct connection to ground.
What is a bushing in engineering?
But in the world of engineering, a bushing is a whole different concept – and one that keeps all kinds of machinery operating smoothly. A bushing is a cylindrical lining designed to prevent wear to moving components. Bushings are often used as a casing on machinery with rotating or sliding shafts, pins, or hinges.
What is a concentric knockout?
Concentric or eccentric knockouts • that are part of a cabinet, cutout box, junction box, or pull box, installed on an electrical system that has a voltage over 250 volts have not been investi- gated for grounding and bonding, and would therefore require a bonding jumper to be installed.
When grounding electrode conductors are installed in metal conduit for physical protection the conduit must be ___?
A 6 AWG or larger copper or aluminum grounding electrode conductor exposed to physical damage shall be protected in rigid metal conduit (RMC), intermediate metal conduit (IMC), rigid polyvinyl chloride conduit (PVC), reinforced thermosetting resin conduit Type XW (RTRC-XW), electrical metallic tubing (EMT), or cable
