Grade 9 Bolts
Grade 9 structural bolts, also known as grade 9 hex cap screws, are one the strongest structural bolts that can be used today. While the typical grade 8 bolt has a tensile strength of 150,000 PSI, a grade 9 bolt has a tensile strength of 180,000PSI.
Is a 10.9 bolt stronger than Grade 8?
Class 10.9 is stronger than class 8.8. It is commonly found in high strength automotive applications. Class 10.9 is similar to grade 8.
Is a 12.9 bolt stronger than Grade 8?
Used in high stress environments, grade 12.9 fasteners are the highest class of metric cap screws. Where Grade 8 fasteners have a 150,000 psi tensile strength, 12.9 fasteners have a 180,000 psi tensile strength, making them more durable than the grade 5.
How are bolts rated for strength?
There are several grades of bolts but the three common grades for SAE are 2, 5 and 8. The common class (grades) for metric are 5.8, 8.8, 10.9 and 12.9. Each grade has a specific bolt strength. No matter the system used to grade the bolts, the higher number means the stronger the bolt.
How do I choose a bolt grade?
Determining Bolt Grade

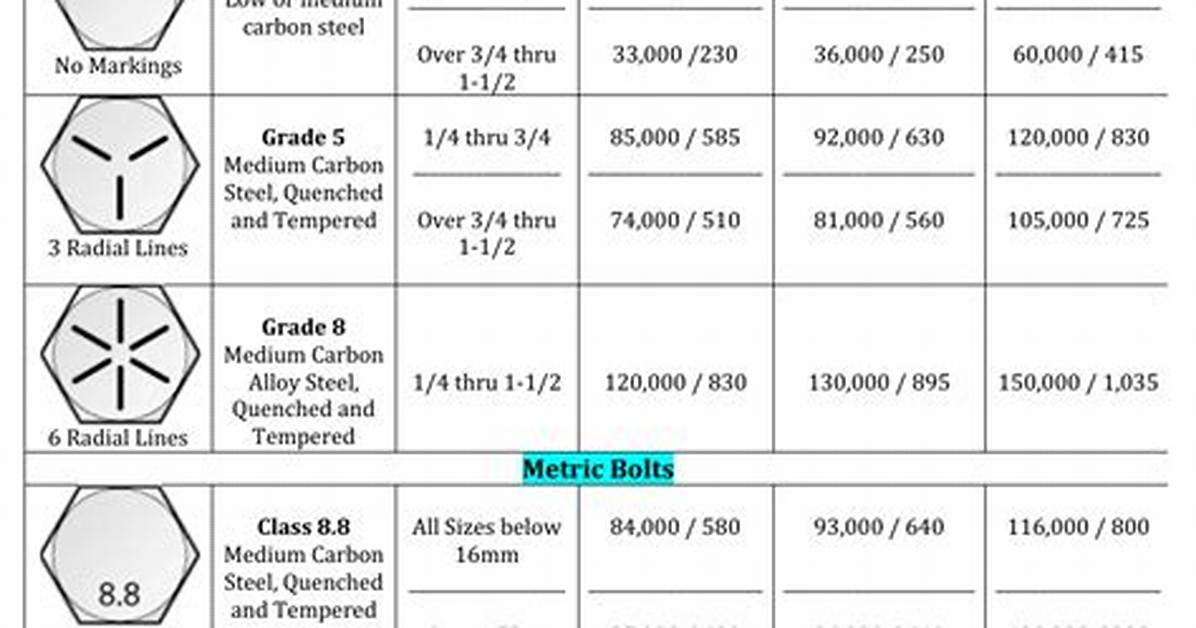

Bolts are typically marked on the head to show what grade bolt they are. For a list of the most common grade markings see our Material Grade Identification and Properties Chart. Note that, in addition to the grade marking, many bolts also have a manufacturer’s mark.
What is a grade 12.9 bolt?
Grade 12.9 Hex Bolts are high strength bolts with 1100MPa minimum yield strength and 1220MPa minimum tensile strength. Suraj Metal Corporation is a leading manufacturer and supplier of the different types such as the Grade 12.9 Hex Head Bolts and others.
What does 9.8 mean on a bolt?
Higher Number Means Stronger
The higher the ISO numbers are, the stronger the bolt. A metric bolt designated as ISO class 6.8 roughly corresponds in strength to an SAE Grade 2 bolt. Bolts of ISO class 8.8 and the slightly stronger class 9.8 roughly correspond to an SAE Grade 5 bolt.
Are Grade 8 bolts brittle?
However, the grade 8 will fail more catastrophically when it does. Basically, you will have less, if any warning, because of the brittle nature. Personally, I would use grade 8s. The chances of you noticing that your bolt is shearing isn’t good.
How do you calculate bolt load capacity?
Tensile strength is the maximum tension-applied load the fastener can support prior to fracture. The tensile load a fastener can withstand is determined by the formula P = St x As.
How much weight will a 3/4 bolt hold?
In other words, a 3/4″ diameter F1554 grade 36 anchor rod will be able to withstand 19,372 pounds force (lbf) without breaking.
Are stainless bolts stronger than Grade 8?
Stainless Steel Grades & Strength
Bolt strength is rated in PSI (pounds per square inch). A stainless steel bolt has the same PSI rating as a grade 5 bolt (125,000 PSI). A grade 8 bolt has a stronger rating with a PSI of 150,000.
What does 8.8 mean on a bolt?
So, in English, a Property Class 8.8 bolt is a bolt with a nominal tensile strength of 800 MPa and a nominal yield strength that is 80% of that nominal tensile strength, so 640 MPa.
What does 4.6 mean on a bolt?
In 4.6, The first number 4 indicates 1/100 of nominal tensile strength . Hence the tensile strength = 400 Mpa. The second number indicates 10 times the ratio between lower stress(proof stress) and nominal tensile strength(yield stress ratio) means, 10 times the yield stress = 10 x 240/400 = 2400/400 = 6.
