So, they call it the common wire to distinguish neutral wires from hot ones. In circuits, hot wires represent the source of electricity and the start of a circuit. It always carries electricity and should never be touched. While hot wires initiate the beginning, neutral wires complete the circuits.
Is red or black wire hot?
Remember, black and red wires are always hot, meaning they are source wires that carry power from the electric service panel to a destination, such as an outlet or a light.
What is the Colour code for electrical wiring?
US AC power circuit wiring color codes
The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.
What happens if you mix up hot and neutral wires?
This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it’s usually an easy repair. Any $5 electrical tester will alert you to this condition, assuming you have a properly grounded three-prong outlet.
Which wire is positive when both are black?
If the multi-colored wire is black and red, the black wire is the negative wire, while the red one is positive. If both wires are black but one has a white stripe, the striped wire is negative, while the plain black wire is positive. Look in the owner manual to determine which wires are negative in a car.
What happens if you wire a switch backwards?
This makes things like lamps and many appliances more safe to operate. But here’s the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work but the polarity will be backward.
What happens if the live wire touches the neutral wire?
In an electric iron being used in a household, the plastic insulation of live wire and neutral wire in the connecting cable gets torn. Due to this, naked live wire touches the naked neutral wire directly and the electric fuse of the circuit blows off.
What side of wire is positive?
The Round / Smooth Side is Always Positive. If the wire is Black and hooked to AC, then the Wire is Positive and White is Negative. If the wires are Red and Black (for DC Purposes), then Red is Always Positive and Black is Always Negative. 3 of 6 found this helpful.
How do you know which black wire is hot?
Place the prong of the multimeter’s black wire on the bare metal on the end of a white wire, then read the meter. If you get a reading, the black wire is hot; if you don’t, the black wire isn’t hot.
What is a hot wire?
Hot Wire. Hot wire is used as the initial power feed to a circuit. It carries the current from the power source to the outlet. Acting as the first instance of a circuit, they are always carrying electricity, meaning it is dangerous to touch a hot wire while there is a power source feeding it.
Why would an outlet have 2 hot wires?
The reason for multiple hot/neutral wires for one outlet is that the outlets are daisy-chained together. This means hot/neutral is only coming from one of the wires and it is being sent to the other wire.
Why is my neutral wire hot?
If the neutral is disconnected anywhere between the light bulb and the panel, then the neutral from the light to the point of the break in the neutral will become hot (and the device will be unpowered, because no current will be flowing through it). Look for a disconnected neutral.
Which is live red or black?
Black (neutral) Red (live) Green and yellow (earth)
Which wire is hot black or brown?
The wiring convention is black for hot, white for neutral and red for other such as a common terminal on a two-way switch arrangement (two switches control one light or outlet).

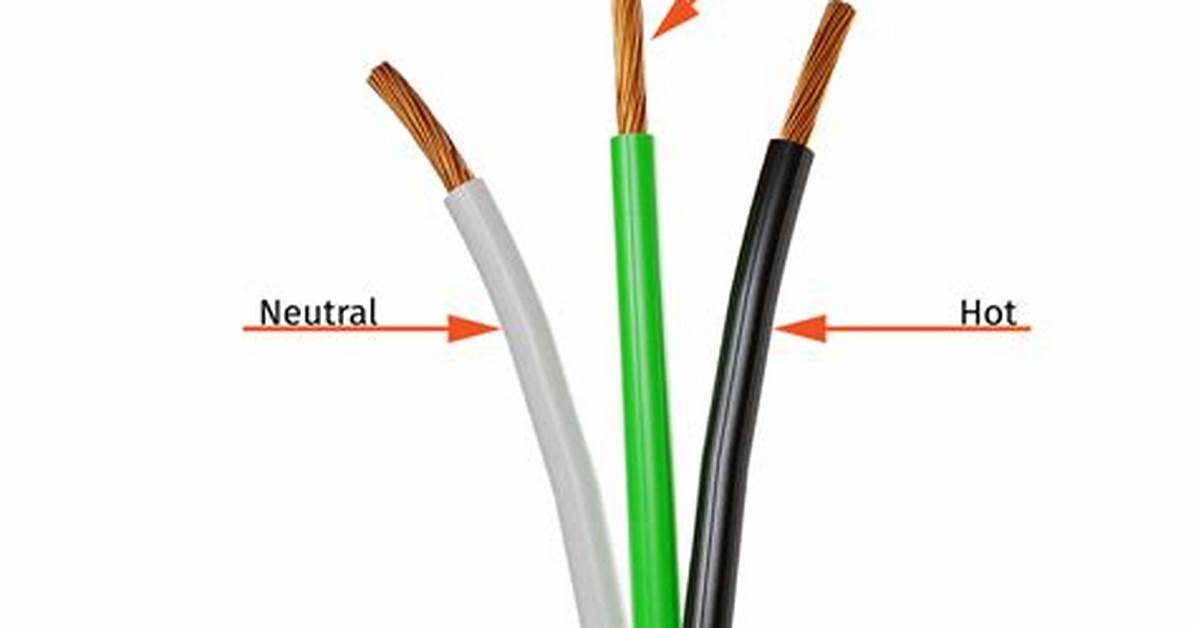

What color is hot wire in a 120 volt circuit?
Hot: The black wire is the hot wire, which provides a 120 VAC current source. Neutral: The white wire is called the neutral wire. It provides the return path for the current provided by the hot wire. The neutral wire is connected to an earth ground.
