On conventional fasteners:
Proto® spline sockets are suitable for use on 4 point, 6 point and 12 point fasteners.

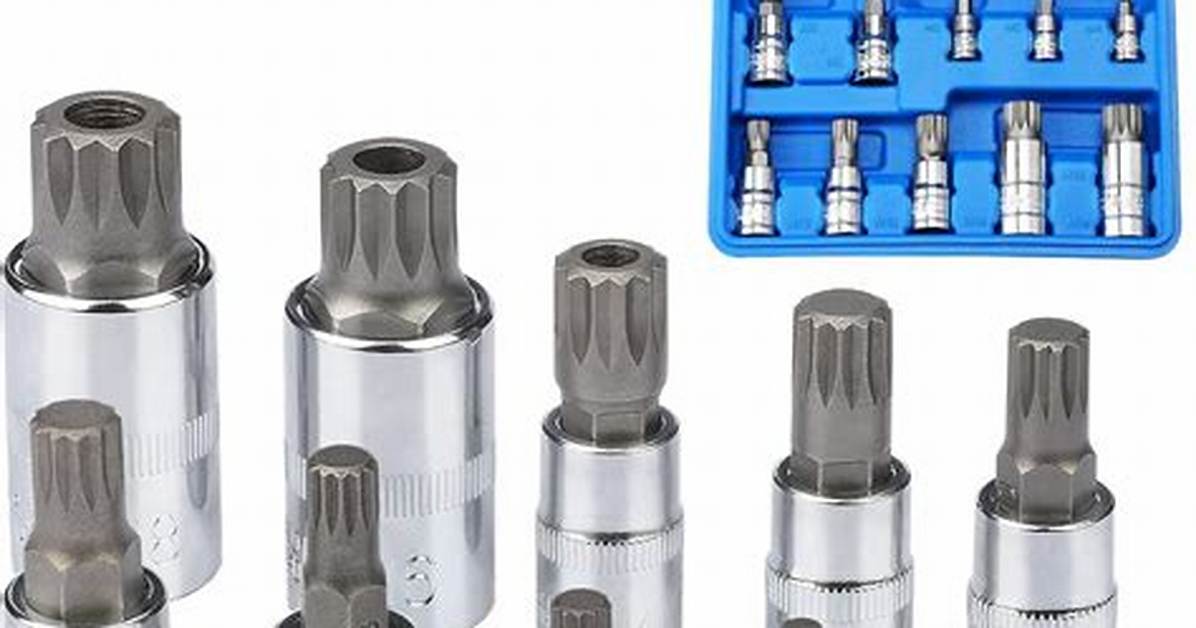

Is spline the same as Triple Square?
Super Moderator. XZN and triple square are the same thing,if you try and use a Torx bit to remove these you’ll almost certainly damage the head of it,as not only are there a different number of splines,they’re also at a different angle to Torx bits.
Are spline lug nuts good?
SplineDrive lug nuts offer a closed-end design, maximum gripping power, more stud engagement and a greater seating surface than socket style lug nuts. In addition they’re 30% lighter in weight. SplineDrive lug nuts take safety, dependability and good looks to the next level.
What do you mean by spline?
Definition of spline
1 : a thin wood or metal strip used in building construction. 2 : a key that is fixed to one of two connected mechanical parts and fits into a keyway in the other also : a keyway for such a key.
Is 12 point the same as spline?
Spline do not grip on the corners of the nut/ bolt. So there is less chance of rounding the nut/bolt compared to a 12 point. Spline is somewhat similar to Snap-On flank drive, which also do not grip on the corners of the nut/bolt, so there is less chance rounding.
What’s the point of 12 point sockets?
The additional points make these sockets easier to connect with the heads of fasteners. This is ideal if you are trying to work on a fastener that is hard to see or you cannot see at all. 12 point sockets are also great for use in tight spaces as they allow you to connect to a fastener at more angles.
Which is better 6 or 12 point socket?
Answer: It’s true that 12-point sockets are fine for most lightweight repairs, but heavy wrenching calls for a six-point socket. A six-point socket is much less likely to slip off a stubborn fastener or round over the corners. Here’s why: (1) Six-point sockets have thicker walls, so they’re less likely to flew.
What are spline bits used for?
The Spline shank bits are carbide-tipped bits used for drilling holes in concrete, brick or block base material. The tip of the bit is made out of carbide. The Spline drive carbide-tipped bits are used in electro-pneumatic hammer drills.
What are spline wrenches used for?
Proto Spline Tools are designed to service high tensile strength fasteners used widely on military and commercial aircraft and in heavy machinery applications where vibration is prevalent. They are also used in automotive and industrial areas where high performance torque needs to be achieved.
Will a 12 point socket work on a Torx bolt?
Neither a 6 or a 12 point socket will help when an E-Torx is required. You should be able to pick up a set to cover everything you’ll come across on the automotive side for $10 at the store that sells cheap tools.
Are Torx the same as spline?
paj Member. XZN is not the same as a spline drive. XZN have a 90° angle and spline 60°. XZN is used a lot on German cars.
Can you use Torx instead of triple Square?
Can Torx Be Used for Triple Square? Yes, a Torx bit can be used to drive a triple square screw but it’s not recommended. Because of the shape of the Torx head, it will not provide full torque on one of the screws.
Do spline lug nuts prevent theft?
Relying on spline drive lugs for theft protection is no protection at all. Lug Bolts – While most cars have lug studs coming out from the rotor plate, some cars, particularly BMW, will have lug bolts that thread into the rotor plate.
How many different spline lug nuts are there?
Generally, these lug nuts have a conical seat with spline grooves and they use a special kind of key. The lug nuts being shown here are made out of cold-forged steel. There are 24 different pieces included in the set. All of the lug nuts have a seven spline drive close end.
What is the difference between spline and hex lug nuts?
splines are usually narrower, and will fit more aftermarket wheels where there might not be enough width in the hole to fit a big socket over the hex lug.
