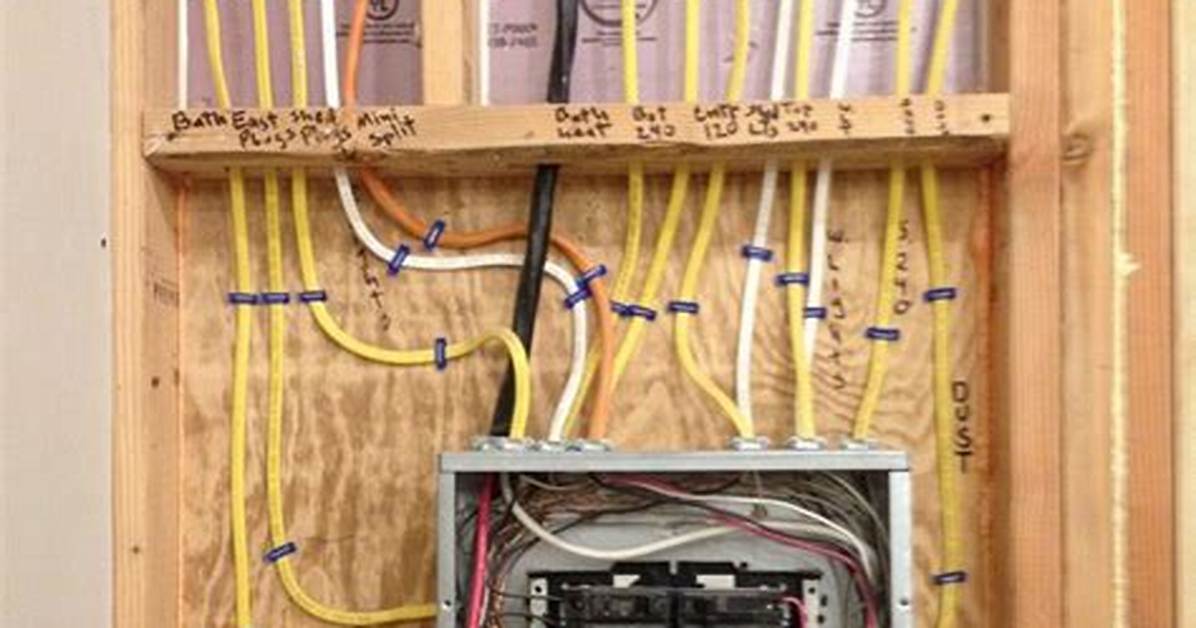

A 100-amp subpanel in a detached garage may be enough to handle high-draw appliances such as refrigerators. As for basic lighting or low-load electronic devices, a 50- or 60-amp subpanel in a detached garage may suffice.
Does a garage sub panel need a main breaker?
The subpanel may be equipped with a main breaker to allow for power interruption without having to go back to the main panel, but it is not required to have a main shutoff circuit breaker, since the feeder breaker back in the main panel serves this function.
Is 20 amps enough for a garage?
As a general guideline, you’d use 12 AWG copper conductors with a 20 ampere breaker, and 14 AWG copper conductors with a 15 ampere breaker. Since the receptacles are in a garage, they’ll have to be GFCI protected. This protection can be provided by a GFCI receptacle, or a GFCI breaker.
Can I run a 100 amp sub panel off 200 amp main?
Of course you can, you can add the 100 amp breaker to your 200 amp as long as it isn’t overloaded, to start adding the subpanel you must first calculate how many yards it will be from the main panel to the subpanel, there is a formula that calculates how much friction will be on the wire at the connecting distance,
What is the 6 breaker rule?
The “rule of six” refers to how many breakers or throws it takes to disconnect a building from the electrical supply, so if you have more than six breakers in a box at your service entrance there needs to be a disconnect upstream of it, either in the panel or upstream.
Does a subpanel need a ground bar?
Yes, any sub panel outside of the main building requires it’s own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod – only the ground wire.
Can you run a 200 amp sub panel off 200 amp main?
Is feeding a 200A sub from a 200A main legit? Yes, and you don’t even need another 200A breaker. The 200A breaker alread present in the panel will suffice, and so you can use a subfeed lug kit as DrSparks advises.
How much does it cost to add a subpanel to a garage?
The average cost of installing a subpanel is between $400 and $1,750, depending on the amperage and number of circuits installed. Typically subpanels have 4 to 20 or more circuits and between 100 and 150 amps.
How far can a subpanel be from the main panel?
The right feet would be between 4.5 to 5 feet.
The cable running from your main panel to the subpanel depends on the amperage rating. For instance, for a 30A panel, use a 10 AWG, three-wire conductor.
Can you run a 100 amp sub panel off a 100 amp main panel?
Let me try and answer some of your questions. First the panels you are looking at that are rated 100A simply means you can use them for any application up to 100A. You can for example add a 60A breaker to your existing panel and protect the new subpanel with a 100A rating.
How many wires can be in a subpanel?
A subpanel requires two hot wires connected to a 240-volt double-pole breaker in the main panel. It also needs a neutral wire and a ground wire. The cable used for this run is known as a “three-wire cable with ground.” The two hot wires, called feeder wires, will provide all of the power to the subpanel.
How many outlets can be on a 15 amp circuit in a garage?
This allowed for 10 outlets for a 15 Amp circuit and 13 outlets for a 20 Amp circuit.
How many outlets can be on a 20 amp circuit in a garage?
The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.
Should garage outlets be 15 or 20 amp?
Not all dwelling units have a garage. For those that do, whether attached or detached, if the garage is supplied with electric power, at least one 120-volt, 20-ampere branch circuit must be installed to supply garage receptacle outlets.
