TCPView is a Windows program that will show you detailed listings of all TCP and UDP endpoints on your system, including the local and remote addresses and state of TCP connections. On Windows Server 2008, Vista, and XP, TCPView also reports the name of the process that owns the endpoint.
How do I access TCPView?

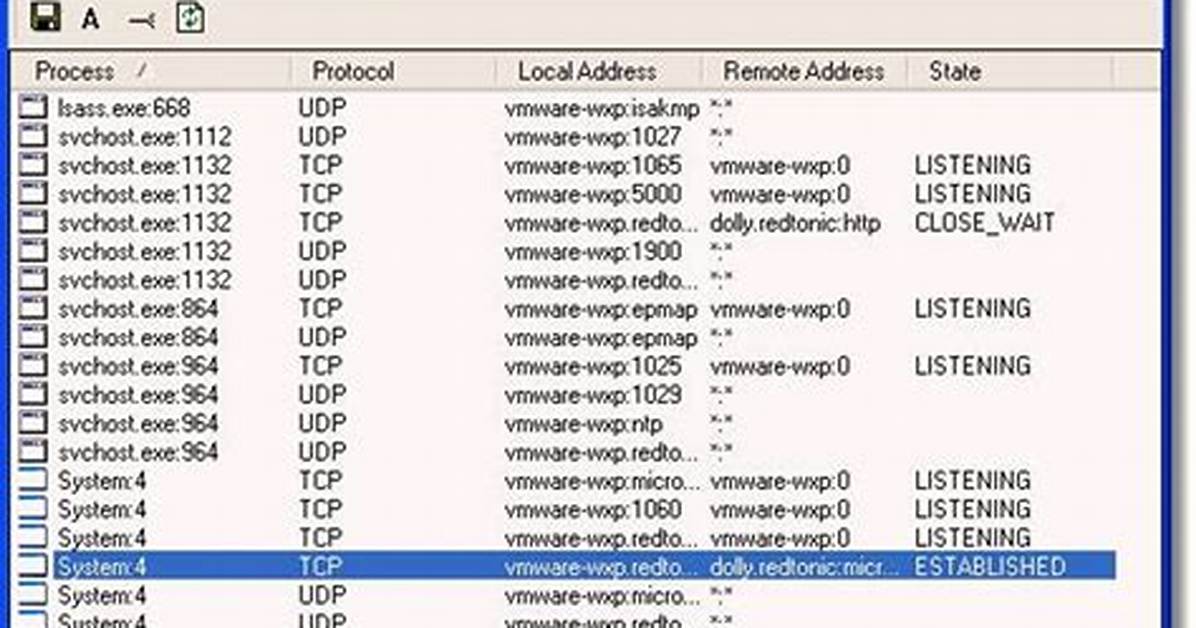

Download TCPView from Microsoft’s Sysinternals website here in a zip file. Extract the zip file and run the Tcpview.exe program to begin – a list of TCP/UDP connections is displayed along with the Process Name, Bytes Received/Sent and Remote Address etc.
What is Microsoft TCP?
Transmission Control Protocol/Internet Protocol (TCP/IP) is an industry standard suite of protocols that is designed for large networks consisting of network segments that are connected by routers. TCP/IP is the core protocol suite that is used on the Internet.
What does red mean in TCPView?
Green means “just opened,” yellow “ready to open,” red “ready to close,” and blue represents a user-selected entry. TCPView will also show you instantly what well-known port addresses (numbered 0 – 1023) are in use on your machine.
What is netstat TCP?
The Work with TCP/IP Network Status (WRKTCPSTS) command, also known as NETSTAT, is used to get information about the status of TCP/IP network routes, interfaces, TCP connections and UDP ports on your local system. You can also use NETSTAT to end TCP/IP connections and to start or end TCP/IP interfaces.
What is TCPVCon?
TCPVCon is the command-line version of TCPView. Like Netstat, TCPVCon simply displays connected TCP endpoints when you run it without specifying any command-line arguments, or it displays all endpoints when you include the -a option.
How do I find TCP ports?
On a Windows computer
Press the Windows key + R, then type “cmd.exe” and click OK. Enter “telnet + IP address or hostname + port number” (e.g., telnet 1723 or telnet 10.17. xxx. xxx 5000) to run the telnet command in Command Prompt and test the TCP port status.
How do I find Windows established connections?
To display all active connections:
Open a command prompt.Type netstat -a.Press Enter.Observe active TCP and UDP connections and listening ports, the local address and port number, the remote name or address and port number if a connection is established, and the connection status.
How do I close all TCP connections?
Use the DRop/-D command to terminate an individual TCP connection when you do not want to terminate the server itself, but want only to drop an individual connection with that server. Use the DROP/-D command to terminate old TCP connections if they prevent a server from being restarted.
What are TCP options?
The TCP Options (MSS, Window Scaling, Selective Acknowledgements, Timestamps, Nop) are located at the end of the TCP Header which is also why they are covered last.
Here’s a brief view of the TCP Options we are going to analyse:
Maximum Segment Size (MSS)Window Scaling.Selective Acknowledgements (SACK)Timestamps.Nop.
What are flags in TCP?
In TCP connection, flags are used to indicate a particular state of connection or to provide some additional useful information like troubleshooting purposes or to handle a control of a particular connection. Most commonly used flags are “SYN”, “ACK” and “FIN”. Each flag corresponds to 1 bit information.
What is TCP zero window?
A TCP Zero Window from a client will halt the data transmission from the server side, allowing time for the problem station to clear its buffer. When the client begins to digest the data, it will let the server know to resume the data flow by sending a TCP Window Update packet.
What built in Windows command can be used to determine the current running processes?
The tasklist command
Use the built in Windows tasklist command from a command prompt to display all processes, their PIDs, and a variety of other details.
