Even though it’s called a two-by-four, the most common stud measures 1 1/2 by 3 1/2 inches. It has been run through machinery to smooth the face and round the corners, giving it consistent dimensions.
How wide is a stud in Australia?
Timber wall frames are typically either 70mm or 90mm deep with 35mm or 45mm thick studs depending on load and spacing – usually 450 to 600mm.
How wide is a stud behind drywall?
Studs are vertical 2 by 4 inch beams that support the frame of your home. You can find them behind your drywall, usually spaced 16 or 24 inches apart. Since studs are made of thick and sturdy wood or metal, they can securely hold screws better than wall materials like drywall.
How thick is a standard stud wall?
How thick is a stud wall? Timber stud walls are usually just over 5 inches in thickness. This includes the combined thickness of your studs (either 70 or 100mm), two plasterboard sheets (each 12.5mm in thickness) and the skim plaster finishes.
Why are wall studs 16 inches apart?

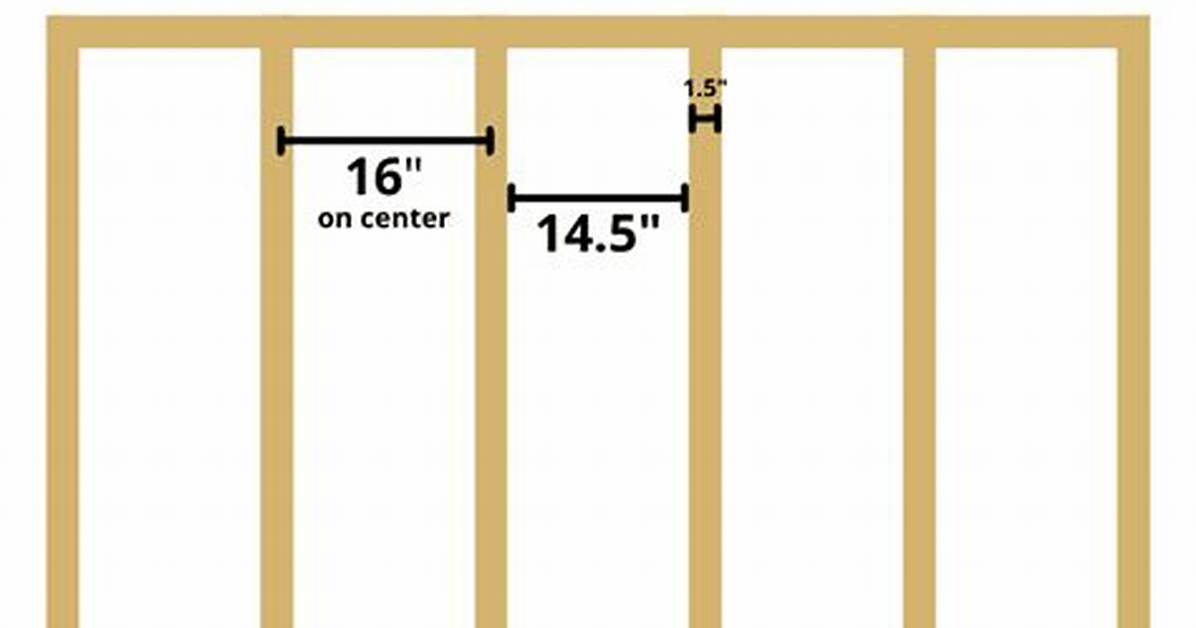

16-inch stud spacing is the industry standard for residential wall framing. The reason for this is structural but also because materials are made in 8ft and 16ft lengths. For example, drywall is attached directly to the studs and comes in 8-foot lengths.
How far apart are studs in Qld?
Vertical studs are normally spaced 450mm apart, measuring centre to centre.
What size are home studs?
Two-by-six and two-by-four are the most common dimensions of wall studs. Standard walls of 8 feet have wall studs that are 92 inches. The studs are 104 1/2 inches in homes with 9-foot walls. Pre-cut studs are used in homes with a 10 foot wall.
What size is stud wall timber?
For the studs in a stud wall, timber is available in two common sizes including 75mm x 50mm or 100mm x 50mm of sawn timber, which is used for the studs as well as the other parts of the timber frame.
What is code for stud spacing?
1. Utility grade studs shall not be spaced more than 16 inches (406 mm) on center, shall not support more than roof and ceiling, and shall not exceed 8 feet (2438 mm) in height for exterior walls and load-bearing walls or 10 feet (3048 mm) for interior nonload-bearing walls.
How far apart are interior wall studs?
Wall registers are commonly put between two wall studs. Remove a return-air grill covering, and you’ll almost always see two wall studs. The general spacing for wall studs is 16 inches on center, but they can be 24 inches.
Should I drill into a stud?
If you’re hanging shelves or mounting anything heavy to the wall, you’ll probably want to mount it directly to the wall studs. However, you should be drilling pilot holes first before driving in any screws.
How thick is an interior wall?
A two-by-four wall stud is 3 ½ inches wide, and an interior wall typically has ½-inch drywall installed on both sides, bringing the wall thickness to 4 ½ inches. Walls that contain plumbing, such as walls behind sinks, however, should be thicker than standard walls.
How wide are studs UK?
Wall studs are usually 2 inches wide and 4 -6 inches deep depending on the wall thickness. As such they offer a very sound material to screw long screws into and create a very strong fixing.
How wide is a plasterboard wall?
The standard plasterboard sheet size is 120 cm in width and from 180 to 360 cm in height. The sizes are designed to support the standard stud spacing, which is 60 cm. Plasterboard can be found in different widths depending on the manufacturer.
Are my studs 16 or 24?
When a home is framed, the wall studs are usually spaced 16 or 24 inches apart. If you start in a corner and measure out 16 inches and you don’t find a stud, you should find one at 24 inches.
Can wall studs be 24 inches apart?
To summarize, studs at 24-inch spacing will save money and resources, and are safe. With 2x6s, it’s a no-brainer for most residential construction—they’re plenty strong in nearly any configuration. With 2×4 studs you can also get by with 24-inch spacing, but walls should be 9 feet tall or less and the loads modest.
What are the two most common stud spacing?
Most wall studs are spaced 16 inches apart on center; however, they can also be spaced at 24 inches. That said, spacing isn’t always exact. Studs can bow and twist up to 1 inch in either direction as a home settles.
