What repairs can fix the P0497 code?
Reconnection of hoses or loose connectors.Wiring replacement.Vacuum.Charcoal canister replacement.Canister purge valve replacement.Gas cap replacement.Clearing of codes and retesting with a scanner to ensure the problem is fixed.
Where is a fuel tank pressure sensor located?
The fuel tank pressure sensor is part of the fuel pump assembly and is mounted on top of the tank or inside the tank. It’s part of the evaporative emissions system (commonly referred to as “EVAP”) and reads pressure in the fuel system to detect evaporative leaks, such as a loose or faulty gas cap.
What does low purge flow mean?
A P0497 code might mean that your PCM has detected a low flow condition in your evaporative emissions control system (EVAP) system. Your EVAP system is responsible for capturing fuel vapors in a closed reservoir (also called a canister) until your engine is prepared to burn them.
Is it OK to drive with EVAP leak?
Yes, you are still safe to drive. The EVAP (Evaporated Emission Control System) is used to prevent gasoline vapors from escaping into the air from the fuel tank system to control greenhouse emissions.
Where is a purge valve located?
The Canister purge control valve is most often located in the engine bay on a hose going from the intake to the canister. It can also be located near the fuel tank.
How much does it cost to replace purge valve?
The average cost for purge valve replacement is between $151 and $172. Labor costs are estimated between $42 and $53 while parts are priced between $109 and $119. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.
What is high purge flow?
OBD-II Code P0496 is defined as a Evaporative Emission System High Purge Flow. The evaporative control (EVAP) system captures any fuel vapors from the fuel tank and sends them through the vehicle’s intake to be burned in the normal combustion process.
What is a purge flow?
When you drive and certain conditions (speed, engine temperature, etc.) are met, fuel vapors are gradually purged from the charcoal canister and burned inside your engine. The code P0441 means that the purge flow is lower or higher than it should be. The purge flow is controlled by the purge valve (purge solenoid).

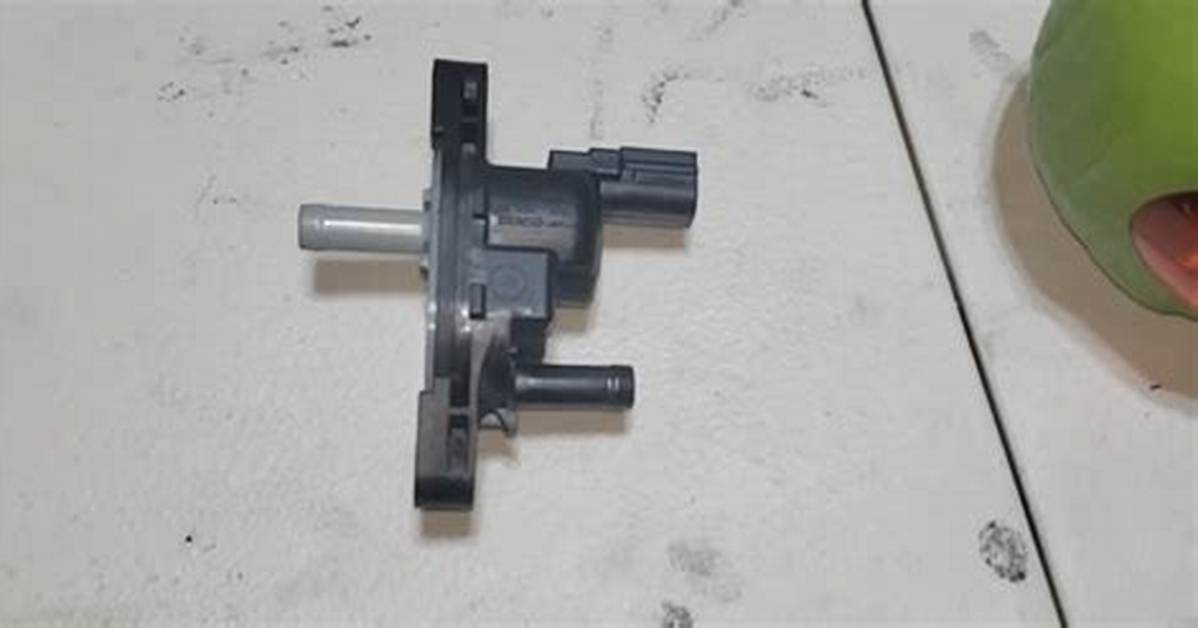

What does a purge valve do?
In particular, the canister purge valve is an emissions control component that allows the engine intake vacuum to take the exact amount of fuel vapors from the EVA canister into the engine intake manifold. In newer model vehicles the purge valve is electrically operated solenoid controlled by the engine computer.
What are the symptoms of an EVAP leak?
There are several common symptoms of an EVAP system leak, including:
Check Engine light is on.Poor fuel economy.Fuel System Service light is while driving.Engine hesitation or misfire.Low power/lack of power.You smell burning carpet or fuel in the cabin.Excessive smoke from the exhaust pipe.
Can a loose gas cap cause EVAP leak?
(EVAP) Leaks Are Usually Described As, A ( Large Leak ) Or ( Small Leak ): A large leak, such as that caused by a loose or missing gas cap; will set either a code P0455 ( Large Leak ) or a code P0457 ( Loose Gas Cap ).
What happens if you don’t fix an EVAP leak?
The EVAP controls vapor. A leak within the system can impact how well your vehicle starts and stays running. Any issue with interrupted internal combustion may cause your engine to stall or refuse to start altogether. How do you fix evaporative emission system leak detected?
