How to Tell If Your Well Pump Pressure Switch Is Bad
Your water pressure is at or above the cut-out pressure, yet the pump doesn’t turn off.Your pump doesn’t turn on at the proper cut-in pressure.You have low water pressure even though the pump is running.Your pump runs, but it cycles on and off repeatedly.
How long does a well pressure switch last?
The pressure switch can last for several years, but sometimes it can fail much sooner than you expect. To avoid being left without a functioning well, some homeowners simply have the switch replaced every year. Your well pump contractor can make this replacement when they come out for their yearly maintenance visit.
What pressure switch do I need for my well?
Most well tanks come set at 30/50. The cut-on pressure for the well pump is 30 psi, so the pressure of the tank should have a pressure of 28 psi. If your well tank is on a 40/60 pressure switch, your pressure setting should be 38 psi.
How much does it cost to replace a pressure switch on a well pump?
Common well pump repairs include replacing the pressure switch (about $20 to $40 plus a service call) or replacing the tank ($250 to $500, plus installation costs). It’s a good idea, well experts say, to schedule an annual inspection of your well and its equipment. Such a service should cost $100 to $120.
What happens when a pressure switch on a well goes bad?
What happens when pressure switches fail? As with any type of mechanical system, general wear and tear can cause the pressure switch to break down over time. The springs inside the switch could loosen, or the wire ports attached to the switch could become corroded.
What causes pressure switch failure?
A pressure switch that fails to turn on could be caused by a number of problems, including: Failure of the draft inducer motor. Restricted intake air vent. Restricted combustion air vent.
How can I tell if my pressure tank is bad?
The following are the telltale signs that your pressure tank is bad and will need to be replaced.
The Water Tank Is Waterlogged.Your Water Pump Is Short-Cycling.Jumpy Pressure Gauge Needle.No Water or Low Water Pressure.
What happens if pressure tank pressure is low?
If tank pressure drops, the bladder may have a tear or hole in it. A tank is waterlogged if it is completely filled with water or has too much water to function correctly. Waterlogged bladder pressure tanks contribute to the following problems : The pump motor cycles – turns on and off – too often.
How do you test a water pressure switch?
Then Check the Pressure Switch

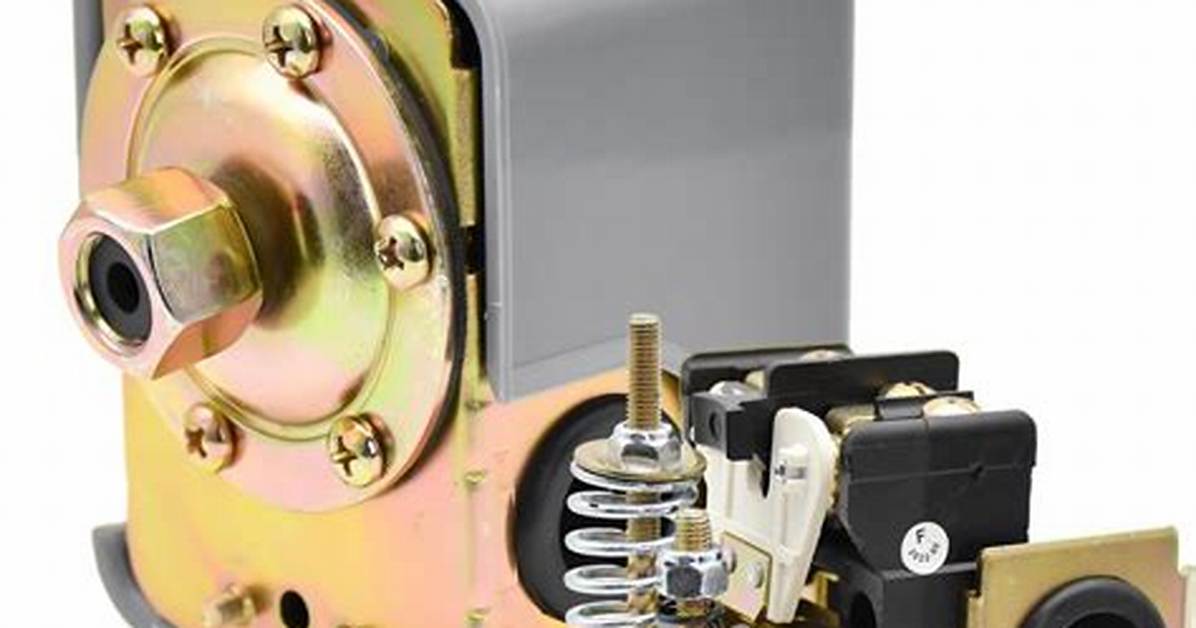

You’ll find the pressure switch mounted on a 1/4-in. tube near the pressure tank. Remove the cover and bang a screwdriver handle sharply against the tube below the switch to jar the electrical contacts.If you see a spark and the pump starts, the pressure switch is the problem.
Do I need a 30 50 or 40 60 pressure switch?
For a single level home or a two story home without water fixtures on the 2nd floor a 30/50 PSI setting may be sufficient. For two or more levels with water fixtures on more than one level you may want to use 40/60 PSI setting. It’s easier for a pump to supply the lower pressures and it’s less strain on old plumbing.
What is normal water pressure for a house with a well?
The best water pressure for a well is 40 psi to 60 psi. Having low water pressure can be caused by many different reasons, but there are just as many ways to improve it. If your well is operating at any less, call a plumber.
Is 70 psi too high for water pressure?
How High Is Too High? The ideal water pressure level is between 50-70 PSI. If your water pressure goes above 70 PSI (even occasionally), you should install a pressure regulator to your main water line.
Is a well covered under homeowners insurance?
If the well is attached to your home, it would be covered under your policy’s dwelling coverage. If it’s not attached to your home, it would be covered under your policy’s other structures coverage, which is usually 10% of the dwelling maximum. However, not all forms of well failure are covered.
How many years does a water well last?
The average lifespan for a well is 30–50 years. 2. How deep is the well? Drilled wells typically go down 100 feet or more.
What causes a pressure tank to lose pressure?
Why is my pressure tank losing pressure? 1. If you have a standard captive air bladder type pressure tank, this is almost always an indication the bladder inside the tank has ruptured. Generally, these are not serviceable, and the pressure tank must be replaced.
How do you reset a pressure switch?
Instructions to Reset Low Water Cut Off Pressure Switch
Locate pressure switch. Locate the reset lever. Locate the AUTO / START / OFF positions. Locate the pressure gauge. Move the reset lever up into the start position and hold it there.
What would cause low water pressure in a home with a well?
The cause could be clogged pipes or a clogged well casing from a buildup of sediment and minerals. It could also be an improperly placed well pump. If the pump is placed too close to the top of the well’s water level, it will reduce water flow.
Will a bad pressure switch trip the breaker?
Pressure Switch
Contacts can become degraded due to frequent cycling or get corroded. If the contacts aren’t working right or at all, it can cause a pressure relay problem that can make your system overdraw amperage that can trip your breaker.
