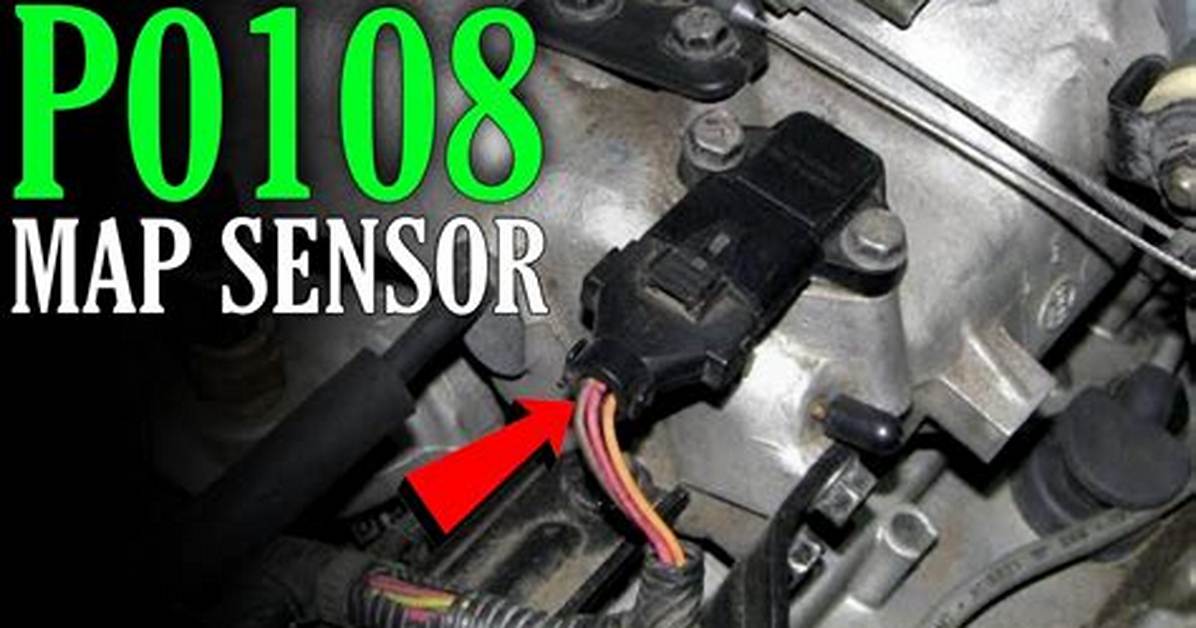

Code P0108 sets when the voltage to the PCM from the MAP/Baro Sensor Circuit stays above 4.5 volts for 10 seconds or more when the values from the Throttle Position, RPM and Oxygen sensors are changing. A vehicle with this code should be taken in to a repair shop for diagnosis.
What are the symptoms of a failing MAP sensor?
Bad MAP Sensor Symptoms
Check Engine Light. The engine control unit constantly monitors all the sensors in your car engine while you drive the car. Lean Air-fuel Mixture. Rich Air-fuel Mixture. Stalling or Rough Idle. Misfires. Increased Emission Level. Bad Engine Performance. Backfires.
What causes MAP sensor failure?
MAP sensors fail by getting clogged, contaminated, or damaged. Sometimes, engine heat “overcooks” the MAP sensor’s electronics or cracks vacuum lines.
What causes P0106 code?
P0106 can be caused by anything from a bad sensor to faulty wiring to water or dirt in the sensor. It’s impossible to give an accurate estimate without properly diagnosing the issue first.
How do I fix error P0328?
What repairs can fix the P0328 code?
Repairing or replacing the knock sensor wiring harness.Replacing bank 1 knock sensor 1.Replacing a faulty ECU.Repairing fuel issues.Repairing an overheating engine.
How do I fix code P0131?
What repairs can fix the P0131 code?
Confirm P0131 is present with a scan tool. Perform a visual inspection of the bank 1 sensor 1 wiring replacing or repairing any wiring that is found to be faulty.Check voltage and resistance of bank 1 sensor 1.If necessary replace the oxygen sensor bank 1 sensor 1 with a new sensor.
What causes code P0138?
What causes the P0138 code? The engine control module (ECM) sees the voltage of the O2 sensor for bank 1 sensor 2 above 1.2 volts when the ECM has commanded the fuel to a targeted lean condition on that bank of the engine. The ECM detects the voltage high problem and turns on the Check Engine Light.
What is code P0110 mean?
OBD-II Code P0110 is defined as a Intake Air Temperature Circuit Malfunction. The Intake Air Temperature Sensor measures the rise and fall of the air temperature inside the Intake Manifold.
Can you drive without MAP sensor?
Your vehicle will not only run less efficiently without the readings from the MAP sensor, but its engine and catalytic converter may also wear out faster. To keep your ride running smoothly for as long as possible, you should avoid driving with a bad MAP sensor unless it’s an emergency.
What is a knock sensor?
About Knock Sensor
A sensor that detects the knocking vibration of the engine with piezoelectric ceramics, used in spark advance control, will contribute to the improvement and fuel economy of the engine performance.
Can u clean a MAP sensor?
Use an electric parts cleaner on a soft rag or paper towel to clean the outside of the MAP sensor. Spray the electric parts cleaner into the sensor port — a couple of spritzes are usually sufficient. Shake out the excess and let the MAP sensor dry.
Can MAP sensor cause transmission problems?
MAP – The Manifold Absolute Pressure sensor creates a signal based on vacuum levels in the intake manifold, which indicates engine load. A faulty MAP sensor can cause late, harsh shifts, early / soft shifts, or even prevent the transmission from shifting at all.
How much does it cost to replace a MAP sensor?
The average cost for MAP sensor replacement is between $132 and $160. Labor costs are estimated between $38 and $48 while parts are priced between $94 and $112. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.
What does a 3 bar MAP sensor do?
By monitoring intake manifold vacuum MAP (Manifold Absolute Pressure) sensors are able to measure the amount of load being placed on the engine. The sensor relays engine load output to the ECU, which in turn adjusts fueling for optimum performance and economy.
What is code P0107?
P0107 is the general code for a problem with the MAP circuit sensor having too low voltage input to the Engine Control Unit (ECU). This means the voltage input to the ECU is . 5 volt or less which means that it is not in the correct lower range for proper engine operation.
How do I fix code P1101?
What repairs can fix the P1101 code?
Replace or repair any faulty, damaged, or loose wiring, connectors, or components within the MAF sensor harness.Clean or replace the air filter if it is dirty.Clean the MAF sensor with specialized cleaner. Repair any leaks within the vacuum system.
