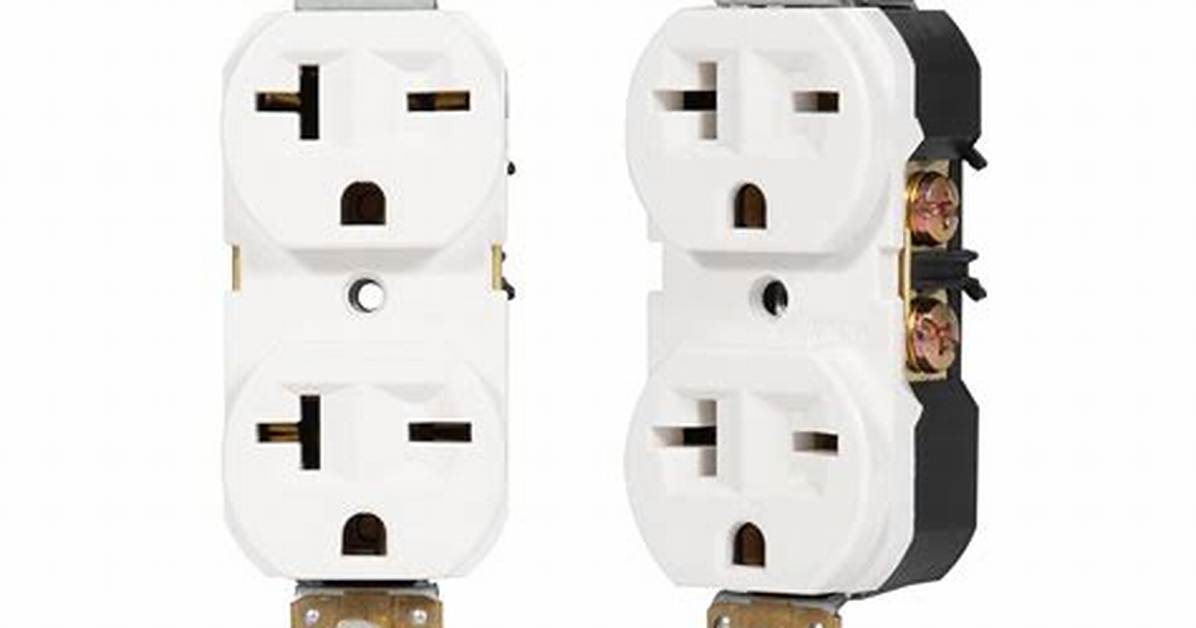

A duplex outlet provides space for two electrical receptacles, leaving you room to plug in two devices. A duplex outlet is one of the most common outlets found in homes and businesses, and its design will protect you from electrical shock hazards.
What’s the difference between a duplex outlet and a regular outlet?
A duplex outlet has two receptacles to use for power. A duplex receptacle outlet is very similar to a single outlet where it can be TR, WR, or both! Duplex receptacles have different amperages and can handle different amounts of power, so make sure to pay attention to the “Amps” your outlet can handle.
What is a double duplex outlet?
While standard duplex outlets feature two outlets on a cover plate held on by one screw, two-duplex outlets feature four outlets on the same cover plate, held on by two screws. This configuration allows for up to four oversized plugs in close proximity.
Is a duplex outlet considered 2 receptacles?
A duplex receptacle is an example of a multiple receptacle that has two receptacles on the same yoke or strap. A duplex receptacle is a single contact device with no other contact device on the same yoke or strap.
What are 4 outlets called?
The configuration whereby a pair of duplex outlets occupy the same electrical box is called a quad outlet or a quad receptacle. It allows you to keep your TV and sound system plugged in while you plug in a room light, and it still leaves a free outlet for the vacuum cleaner.
Do I need a heavy-duty outlet?
Large appliances
You’ll need a heavy-duty 240-volt electrical outlet for these appliances. There are both 3-prong and 4-prong varieties. Check your electric cord to make sure you get the right one. Note: Both of these electrical outlets should be on a dedicated circuit.
Can I use a 15A receptacle on a 20A circuit?
You cannot push a 15 Amp plug into a 20 amp receptacle. 20Amp plugs are typically assigned to devices like air compressors and saws that require a lot of power. For the most part, you don’t have to worry about overloading your 15 Amp outlet by plugging a 20 Amp device into it.
How is a duplex receptacle wired?
Wiring a duplex receptacle at circuit end
Just attach incoming wires directly to the receptacle as shown in the photo at far right. As with pigtail wiring, connect the ground wire first, then the neutral, then the hot wire. The preferred way to wire a mid-circuit receptacle.
What is a duplex switch?
A duplex switch contains two switches on one body. They come in single pole and 3-way. Two of the common terminals are connected together with a removable metal tab. These terminals are usually connected to line voltage and can be black or bronze color depending on the manufacturer.
Does a duplex receptacle count as one outlet?
If there is one outlet, two outlets (most common) or 3 outlets it is still counted as 180 VA. If there are (4) or more outlets then it is counted as 90 VA per outlet. What you are describing, a double gang box, with (2) duplex outlets will equal 360 VA.
How many receptacles can be on a 20 amp circuit?
The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.
Is a duplex receptacle a single receptacle?
Since a duplex receptacle contains two contact devices, it is a multiple receptacle, not a single one. Receptacles installed on 15- and 20-ampere branch circuits must be of the grounding type unless meeting the provisions in 210-7(d).
What does S3 mean in electrical?
Control wiring circuit
Resolution: The S1, S2, and S3 are switch designations in the recommended wiring schemes. When these switches are wired as indicated the S1 is for freewheel stop operation, S2 is for soft start operation FWD, and S3 is for soft start REV.
What does a triangle mean in electricity?
Electrical circuit diagram symbols
Amplifiers (denoted by triangle shapes) increase the output signal in your circuit. Capacitors (parallel lines) store energy in your system, while resistors (zigzag lines) reduce current flow.
What is the symbol for GFCI?
The GFI or GFCI outlet symbol describes a Ground Fault Circuit Interrupter protected outlet. The GFCI outlets is found in areas such as the kitchen and bathroom. The switched outlet symbol generally refers to an outlet that is controlled by a switch. Switched outlets are typically found in bedrooms.
