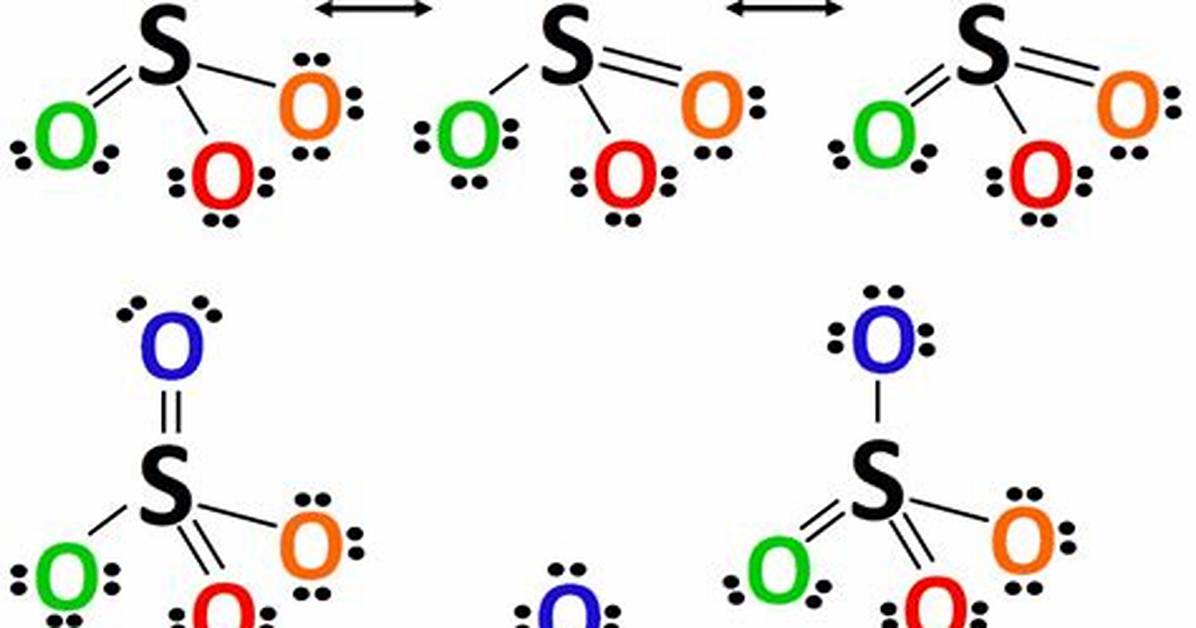

It actually has 6. If you draw out the S with 4 oxygens bonded to it, 2 of those oxygens have double bonds, the other two carry an anionic charge. Hold one double bond still and move the other to the remaining two oxygens and you have 3 resonance structures.
What is the structure of so42?
Sulphate Structure [SO42-]
The sulphate ion is mainly composed of sulphur and oxygen atoms. Here, sulphur is the central atom and it is surrounded by four oxygen atoms that are located at equal distances in the plane. As for the bonding, 2 of the oxygen atoms form S=O. bonds and the other two form S-O- bonds.
How do you determine resonance structures?
Using Formal Charges to Identify viable Resonance Structures
The greater the number of covalent bonds, the greater the stability since more atoms will have complete octets.The structure with the least number of formal charges is more stable.The structure with the least separation of formal charge is more stable.
Does sulfate exhibit resonance structures?
There isn’t a most favorable resonance of the Sulfate ion because they are all identical in charge and there is no change in Electronegativity between the Oxygen atoms.
Which is the resonance hybrid of sulphate ion?
The sulfate ion is a resonance hybrid of six equivalent contributing structures. The bond orders of the S-O bonds in any one contributor are 2, 2, 1, and 1. The bond orders of the S-O bonds in the hybrid are an average of these numbers. The greater the bond order, the shorter the bond length.
Why is so4 2 an exception to the octet rule?
Sulfur will have a charge of plus two. A different way to draw the structure would include double bonds between sulfur and two of the oxygen atoms. That structure would have less charge separation than the other structure. However, the sulfur would have twelve electrons in its valence shell, not eight.
What is the resonance structure of co32?
Like ozone, the electronic structure of the carbonate ion cannot be described by a single Lewis electron structure. Unlike O3, though, the actual structure of CO32− is an average of three resonance structures. 1. Because carbon is the least electronegative element, we place it in the central position: 2.
How many resonance structures can SO3 have?
There are seven resonance structures for SO3 .
Why is SO42 tetrahedral?
(four oxygen atoms are surrounding the central S), N stands for the bonding and non-bonding pairs of electrons. What is this? Here, if we consider the A and X, we get the resultant formula to be AX4. So, according to the chart, we can see that SO42- has a tetrahedral structure.
How many lone pairs are in SO42?
There are two S=O. bonds and two S-O bonds in sulfate ion lewis structure. Sulfur atom is the center atom and four oxygen atoms are located around sulfur atom. There are no lone pairs in the last shell of sulfur atom.
What is an example of a resonance structure?
The benzene ring has two resonance structures which can be drawn by moving elections in a cyclic manner. Conjugated double bonds contain multiple resonance structures.
How many resonance structures are there?
Each structure is called a resonance structure, and they can be connected by the double-headed resonance arrow. There are total three equivalent resonance structures for CO32-, and the actual structure of CO32-is the hybrid of the three resonance contributors.
Which resonance structure is the best?
Remember, the best resonance structure is the one with the least formal charge. This is why formal charges are very important. Atoms that are missing one or more electrons will have a positive charge. An atom with many electrons will have a negative charge.
How many resonance structures can one write for the sulfate ion in which the sulfur atom has a formal charge of 0?
SO_{4} Charge. Resonance structures are a group of two or more Lewis structures that represent a single polyatomic species. Sulfate has six resonance structures.
What is the hybridization of so4 2?
Answer: SP3 hybridization
Sulphate is basically a chemical compound that is composed of sulphur and oxygen atoms. Sulphate forms salts with a variety of elements including potassium, sodium, calcium, magnesium and barium. The number of sigma bond and lone pair electrons provides details regarding ion hybridization.
