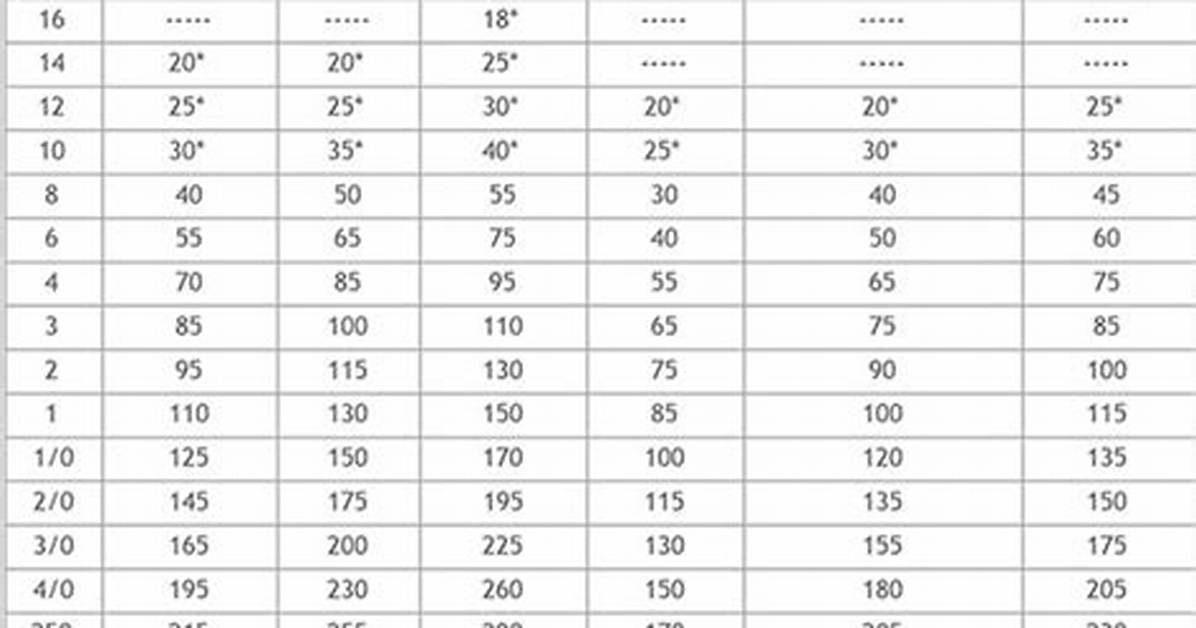

A single circuit of 50A is allowed to use #8 THHN, if the terminations at both ends are rated for 75C temperature. You cannot use #8 NM or UF cable at 50A, because it is not allowed to go to 75C temperature.
Can 8 gauge wire handle 60 amps?
An 8-gauge copper wire can handle 50 amps at 167 degrees F but an 8-gauge aluminum wire at the same ambient temperature rating will only carry 40 amps. Overall, you need a 4-gauge wire or greater to handle 60 amps.
Will 8 gauge wire carry 40 amps?
The minimum wire size you can use with a 40-amp circuit breaker is 8-AWG. An eight-gauge wire is rated to handle the current that a 40 amp breaker handles. You can use larger gauge 6-AWG wire for future-proofing, but a lower gauge wire will render the electrical system non-compliant with the NEC.
What wire do I need for 50 amp 220?
Wiring a 220 Plug End
You need six-gauge wires for a 50-amp circuit. That’s beefy wire and it’s difficult, if not impossible, to wrap it around a terminal screw.
What size wire do you need for 50 amp breaker?
For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances.
Will 8 gauge wire carry 50 amps?
Up to a point, the higher the temperature, the higher the current the wire can handle. An 8-gauge wire can handle a current of 50 amps at a temperature of 90-Celsius or 194-Fahrenheit.
What wire size do I need to go 100 feet for a 60 amp service to a workshop?
What size wire should I use for a 60 amp subpanel? You can get away with 6 AWG when you have a short run of wire, however, due to voltage drop, if you ever decide you want to go more than 100 feet then a 4 AWG is the size you should choose.
What size wire do I need to run 60 amps 200 feet?
For 60 ampere breakers, electricians and professionals suggest using a wire size gauge ranging from 6 AWG to 4 AWG. All household wires have a rating of at least 600V, so only amperage really matters when it comes to determining wire gauge. Therefore, the wire size for 60 amp 220v, for example, is still 6 to 4 AWG.
What size wire do I need for 30 amps at 200 feet?
A 4 AWG wire is ideal for conducting 30 amps of current over 200 feet.
What size wire do I need for 80 amps?
80-amp service requires a 2-gauge wire. If you exceed 80 amps, you should jump to 1 gauge. The next size after 1-gauge is 2/0, followed by 3/0. It should be noted that you can only use 2 or even 3-gauge wire if the material is copper.
What size wire do I need for 100 amp?
For 100 AMP service, you’ll need a #4 AWG copper wire or #2 AWG aluminum or copper-clad wire. Make sure to limit your voltage drop to 3% regardless of distance.
How far can you run 8 gauge wire for 30 amps?
For 30 amp service 100 feet away you would need a wire that can handle at least 45 amps. Luckily, the #8 AWG wire has a 50A ampacity. You can use the #8 AWG wire for sub panel 50 feet, 100 feet, and even 150 feet away.
What is 8 AWG wire used for?
This wire is 8 AWG, good for 55 Amp when used in conduit with less than 3 conductors. This wire is rated for use in dry or wet locations, raceways, or conduit. It can be used outside exposed to the weather as well, though the insulation is not 100% UV-proof and installation in conduit is recommended.
What gauge wire do you need for 40 amp breaker?
The rule of thumb that techs will usually go by is that for a 30 amp circuit breaker, 10-gauge wire is the right one to go with. For a 40 amp, you need an 8-gauge wire. For a 20 amp, you will need a 12-gauge wire.
Can you feed a 100 amp sub panel with a 50 amp breaker?
Just wire it up. There is no problem using a sub panel that can take more current than you will ever feed it. Points to note: The cable to your hot tub will be rated for 50A (not 100A); therefore you must not upgrade the breaker in your main panel to 100A.
How far can you run 6 gauge wire for 50 amps?
For every 100 feet, voltage drops by 20%.
Example: 50 amp wire is usually the 6 AWG (we require at least 62.5A and 6 AWG can handle 65A). If you have to power an electric device 100 feet away, you need 20% amps more.
What wire is needed for 220V 60 amp?
60 amp wire size is either 6 AWG or 4 AWG wire (AWG stands for American Wire Gauge; standard wire sizing is the US) for 220V voltage. An amateur will use a 6 AWG wire size for 60 amp 220V. A professional will always use 4 AWG wire size for 60 amp 220V.
