Securing MC Cable. MC cable must be secured at intervals not exceeding 6 ft. Cables that contain conductors no larger than No. 10 AWG must be secured within 12 inches of every box, cabinet, fitting, or other cable termination.
How do you secure a MC cable?

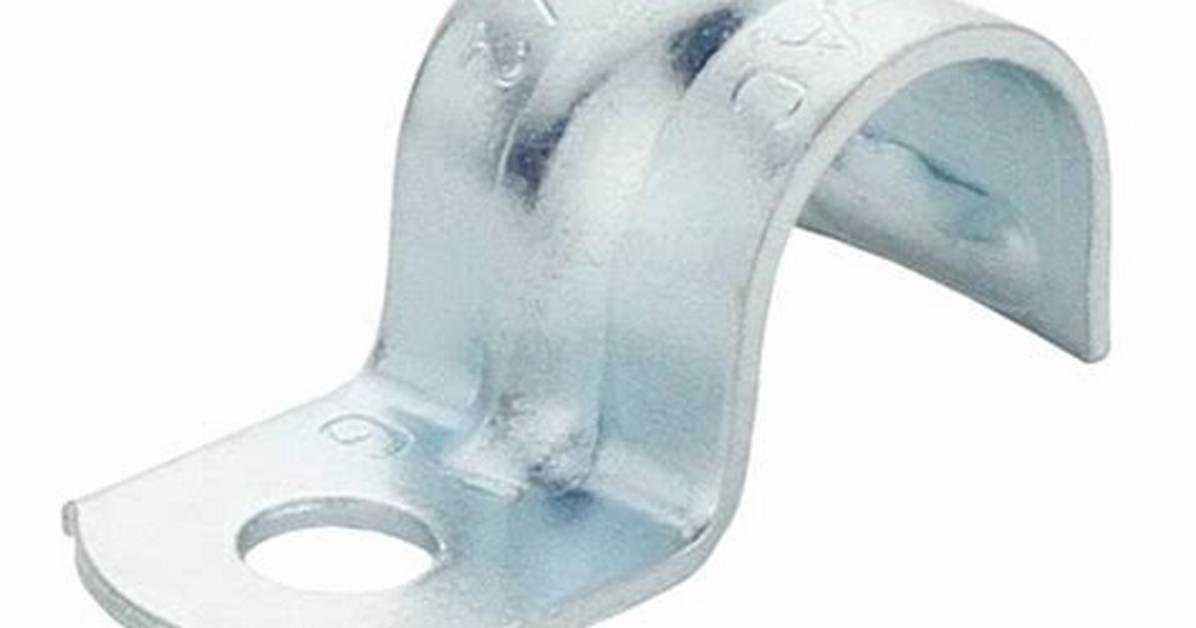

Type MC cable must be supported and secured by staples, cable ties, straps, hangers, or similar fittings, designed and installed so as not to damage the cable. Type MC cable, with four or less conductors sized no larger than 10 AWG, must be secured within 12 in.
What is MC cable?
MC Cable, by most common definition, is a factory assembly of one or more insulated circuit conductors enclosed in an armor of interlocking metal tape or a smooth or corrugated metal sheath.
Can you support MC with zip ties?
Yes, cable ties are permitted.
What’s the code for strapping MC?
According to NEC Article 330.30, MC cable must be supported and secured at intervals of 6 feet or less (unless routed through a framing member) and cables containing four or fewer conductors sized no larger than 10 AWG must be secured within 12 inches of every termination.
What is the code for strapping Romex?
Romex Wiring Support, NEC 336-18: Stapled, in a manner that does not damagethe cable, within 12″ of electric boxes; every 4-1/2 ft. intervals, and clamped to box. Cables run through holes in studs, rafters of floor joists are considered supported at those points.
What is the minimum burial depth for rigid conduit?
If the wiring method is rigid metal conduit (RMC) then that column only requires a 6 inch burial depth (even without meeting column 4), unless we are in a location such as a one family driveway then the minimum burial depth is 12 inches If the circuit is in RMC under the same driveway without meeting all the conditions
Can MC cable be exposed in garage?
Type MC Cable without an outside nonmetallic jacket can be installed in an “other space used for environmental air” in accordance with Section 300.22(C). These cables can be installed either indoors or outdoors and in exposed and concealed locations.
Are anti shorts required for MC cable?
Anti-short bushings that may be supplied by MC Cable manufacturers are for optional use by the installer, however they are not required.
Is MC cable better than Romex?
Safety: Compared to Romex, MC cable is safer to install due to its metallic sheath. This sheath helps protect against accidental shearing and penetration, reducing the risk for accidental wire exposure. Romex sheathing is easily penetrated or sheared, making it less safe unless run through protective conduit.
Where is MC cable not allowed?
330 of the NEC mentions that MC cable can be used indoor and outdoor but does not make mention of it being allowed or disallowed for use in damp environments. It does state that when used in wet locations there must be a corrosion-resistant jacket to protect the conductors.
What’s the difference between MC and AC cable?
The main difference between the AC wire and the MC wire is that the metal-clad cable has a standard ground wire, whereas the AC cable relies on a jacket in combination with a wire or thin strip to secure the grounding. The metal armor can also act as a part of the earth grounding in combination with the bonding wire.
Can I use MC cable instead of conduit?
Type MC armored cable can be installed in cable tray, racks, hangers, or as a cost-effective replacement for conduit and wire where specified per the National Electrical Code (NEC).
Are Type 21 cable ties plenum rated?
Agency Approvals & Self Certifications Products which are UL Listed as noted in the Typical Data section meet UL Standard 62275 for Cable Management Systems, TYPE 21 or TYPE 21S, and are suitable for use in Air Handling Spaces (plenums) in accordance with Section 300.22 of the National Electric Code.
Is tie wire UL listed?
UL considers a cable tie a “cable positioning device” and certifies them to UL 62275.
When armored cable run parallel to the sides of rafters studs or floor joists in an accessible attic The cable shall be protected with running boards?
Where run across the top of floor joists, or within 2.1 m (7 ft) of the floor or floor joists across the face of rafters or studding, the cable shall be protected by guard strips that are at least as high as the cable.
