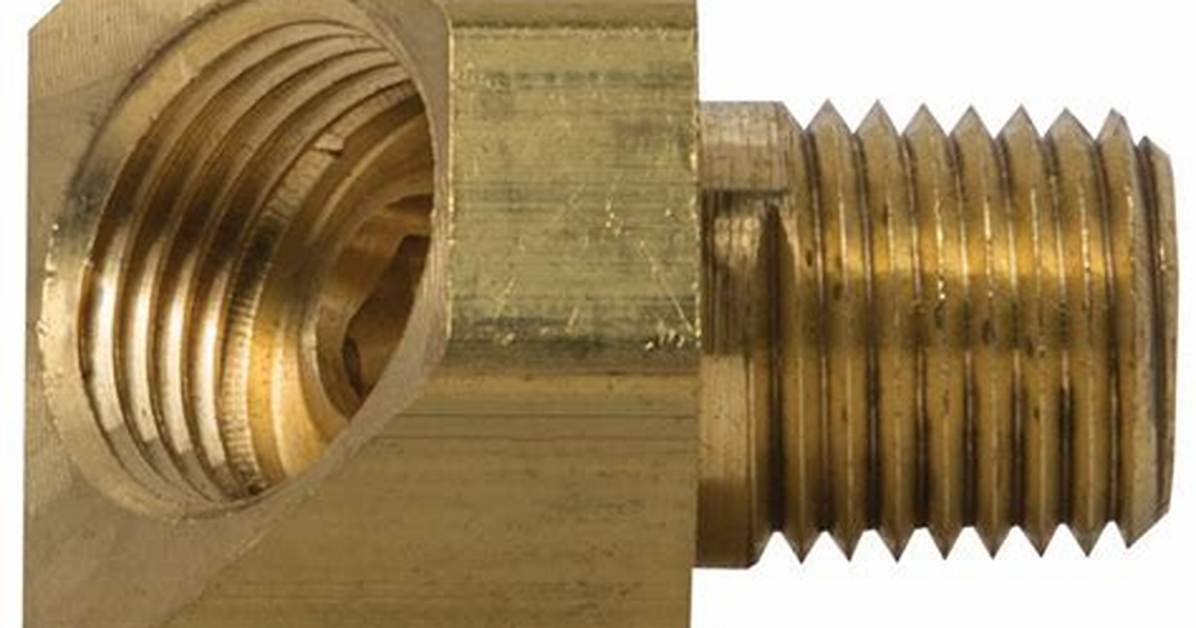

What’s inverted flare? Inverted Flare Hydraulic Fittings are widely used in hydraulic brake, power steering, fuel lines and transmission cooler lines. Inverted flare fittings are inexpensive and reusable. Inverted flare provides excellent vibration resistance. Seats and threads are internal and protected.
Is inverted flare the same as double flare?
Inverted flare is another name of double flare. Double flare brake lines are the most commonly found in American and Asian cars.
Are there different types of flare fittings?
The most common flare fitting standards in use today are the 45° SAE flare, the 37° JIC flare, and the 37° AN flare. SAE 45° flare connections are commonly used in automotive applications as well as for refrigeration and air conditioning. SAE fittings are typically made from brass.
What are the two types of flares used on brake lines?
There are two basic types of flares used on OEM automotive brake systems throughout the world. The SAE/double (inverted/45degree) flare and the DIN/ISO bubble flare. We will refer to them as SAE or DIN flare. The most common is the SAE flare.
Can I use a double flare instead of a bubble flare?
Can you use a bubble flare instead of a double flare? The simple answer is no. The line and port are completely different and will not come close to sealing. When doing brake lines, you need to determine what type of flare you need for your car.
What type of flare is best for brake lines?
All brake lines need to be double flared, due to the high hydraulic pressure. If your brakes leak or the hoses crack, it could prove to be fatal. Single flared lines are suitable for low-pressure lines in other applications, but not your vehicle’s brakes.
Can I use a compression fitting on a brake line?
Do not use a compression fitting on your brake system. When you are on the road not only your safety but the safety of others is at risk if you have a compromised brake system. When you press your brake pedal the PSI (pounds per square inch) exerted on your brake system is great often over 1,000 PSI in normal braking.
Are brake lines 37 or 45 degree flares?
Original equipment brake line with an inverted flare (i.e. Mustang brake lines) uses a 45° double flare (SAE standard). 37° single flare is ONLY for AN fittings. If AN fittings are used, only STEEL AN fittings are acceptable for brake lines. correct!
Are all flare fittings the same?
AN 37° flare and industrial 37° flare fittings function identically. In many cases they appear to be functionally interchangeable, but they are not. What this means is that while the products may look similar, you must not use an industrial 37° flare fitting design as a direct substitution.
What is better flare or compression fittings?
Generally speaking, compression outlets are used for water and compressed air lines, where slight leakage isn’t going to cause too much of a problem. Flared outlets are used for gas and high-pressure lines, where even a little leakage can cause major problems if left unattended.
Is JIC the same as flare fittings?
JIC fittings are dimensionally identical to AN (Army-Navy) fittings, but are produced to less exacting tolerances and are generally less costly. SAE 45-degree flare fittings are similar in appearance, but are not interchangeable, though dash sizes 2, 3, 4, 5, 8, 10, 14, and 16 share the same thread size.
What kind of SAE flare is most often found on cars inverted or standard?
Inverted FlareOne of the most common types of fittings found on automobiles is the SAE double inverted flare. It is unique in that the flare is doubled, or folded back on itself, for increased strength and resistance to cracking.
What are 37 degree flares used for?
Defined by MIL-F-18866 and SAE J514 standards, these flare fittings have been machined to have a 37° flare seating surface. These fittings are most commonly used in fluid power and fuel delivery applications, especially those using high pressure.
Can you mix dot three and Dot four brake fluid?
Can you mix Dot 3 and Dot 4 Brake Fluid? Yes, Dot 3 and Dot 4 brake fluid can be mixed. It’s because both these are glycol-based brake fluids, which means that they are compatible with each other. If your car has Dot 4 from the factory, it’s not recommended to fill it with Dot 3, though; but the other way is fine.
