Overall, it’s a great Comet TAV2 aftermarket replacement that has similar qualities and specifications as the Moonsun Torque Converter. The AcPulse Torque Converter is compatible with 3/4″ crankshafts and a great fit for Predator 212cc engines.

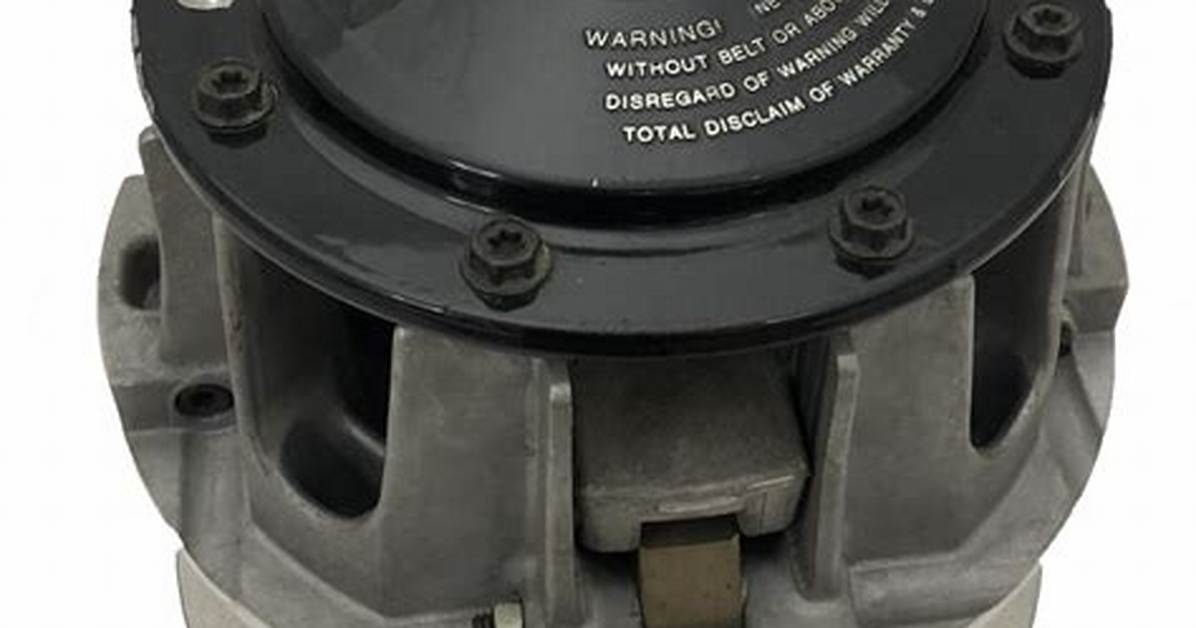

What is a comet torque converter?
Comet has been manufacturing torque converters for recreational vehicles for over 60 years. Our torque converters are designed and built to withstand the extreme rigors of rough applications.
Is Comet clutches still in business?
Comet clutches continue to be an optimal aftermarket option in all powersports segments. Known mostly for its penetration into the snowmobile and go-kart marketplaces, Comet maintains continued growth thanks to improvements in size and staffing at its Edgerton, Wisconsin, manufacturing facility.
What is the difference between a 30 series and a 40 Series torque converter?
The 30 series is rated for 2-8hp Engines and the 40 series is for 8-18hp engines. So if you’re using an unmodified predator 212 or other honda clones with a max power of 6.5hp or lower, then 30 series is for you, if you’re using a more powerful engine such as the Predator 420 then go for the 40 series.
How much HP can a 30 Series torque converter handle?
Comet 30 Series Torque Converter System (Asymmetrical)
Comet 30 series torque converter system is for 2 or 4 cycle engines up thru 8 hp. The model 30 uses a 3/4″ top width asymmetric belt. Drive clutches are available for both 3/4″ and 1″ bore (with 3/16-1/4 keyway).
Is a torque converter better than a centrifugal clutch?
The Centrifugal clutch is ideal for high-speed Go-karts with small wheels on flat tracks. Or to put it more technically, Torque converters are useful when you require more torque (for example: driving uphill) and will give a better take-off.
Who makes Comet clutch?
Hoffco/Comet was purchased by Certified Parts Corporation in 2009. Comet delivers high performance solutions for OEM and aftermarket applications with a wide variety of centrifugal and industrial clutches, torque converters, belts and disc brakes.
Does a torque converter make a mini bike faster?
Mini Bikes with Torque Converters are faster than Mini-Bikes with Clutches. Speed mainly depends on 4 factors, Gear Ratio, Engine’s RPM, Power lost in transmission, and wheel size. (There are other factors such as weight of driver, road, etc that will have a small impact).
How do I know if I have a comet clutch?
Identify the Shape. A V shaped belt indicates the unit is a TC88, 20, 40 or 44 Series – SYMMETRICAL Type. If the angles of each side of the belt are different, almost flat on one side – 2 1/2 degrees and angled 18 degrees on the other side, you have a 30 Series or an older CAT99 Series – ASYMMETRICAL Type.
Where are Comet clutches made?
All manufacturing is done in our 200,000+ sq. ft. plant in Edgerton, WI. Ownership may have changed over the years, but Comet’s dedication to quality has not diminished.
What is a 40 Series torque converter?
Comet 40 Series and Comet 44 Series are Mid Range Torque Converter Components for 8 to 18 horsepower applications. The 40 Series Driver Clutch fits 1″ engine crankshafts with a 1/4″ keyway. The 44 Series Driver Clutch is available for 3/4″ crankshafts with a 3/16″ keyway and 1″ crankshafts with a 1/4″ keyway.
What is a comet clutch?
Comet Industries has been manufacturing centrifugal clutches for snowmobiles, ATV’s/UTV’s, go-karts, golf carts, lawn & garden equipment, mini bikes, and industrial and finishing equipment for over 60 years.
Can you upgrade a torque converter?
There are other modifications that can be made to improve the performance of an automatic transmission, but swapping torque converters is by far the easiest and packs the most bang for the buck. As a rule, stock torque converters are too large in diameter and too heavy.
Can you adjust a Go-Kart torque converter?
Many people are unfamiliar with the fact that you can actually adjust a torque converter so that it delivers more torque. So, how do you adjust a torque converter on a go-kart? The short answer is that you’ll need to adjust the spring on the torque converter by moving it to one of the pre-drilled and numbered holes.
How do you measure a torque converter Go-Kart belt?
Simply take a measuring tape and hold it against the outer plate of the pulley. Measure from one side of the plate to the opposite side. If you’re running a standard torque converter the diameter will either be 6-inches, 7-inches, 7.5-inches or 8.5-inches.
What is a jackshaft on a go-kart?
In a Go-Kart or a Mini Bike, a jackshaft is a shaft between the Axle and the Engine’s Crankshaft. It is used as an intermediary in the power transmission from the engine to the wheel.
What does a small engine torque converter do?
torque converter is the use of a fluid coupled to propel loads in a rotating manner by pushing rotation. Torque converter is used with automatic transmission to transmit the load.
