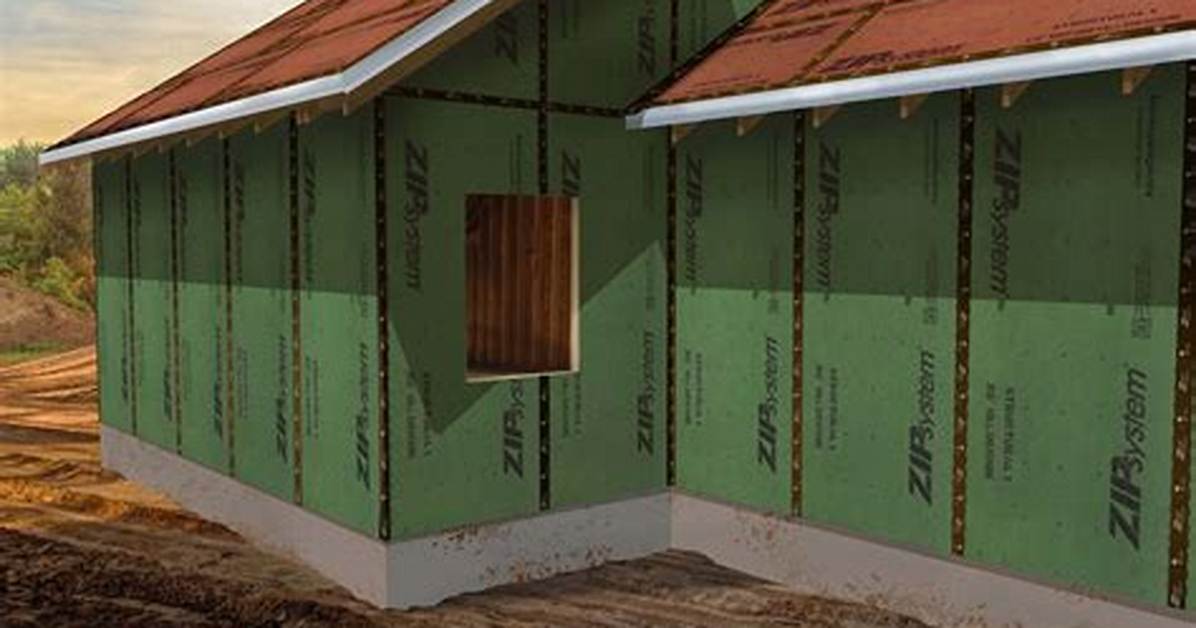

ZIP Sheathing Is Highly Energy-Efficient!
ZIP Sheathing is a one-of-a-kind structural panel that makes the roofs and walls highly energy efficient. Comes with a built-in barrier, it manages to prevent air leakage and keep heat, water, and moisture out of the walls and roof, ensuring you a comfortable home.
What is ZIP System sheathing used for?
ZIP System sheathing and tape forms a tight barrier against unwanted air leakage, for a durable building envelope that helps promote energy efficiency and increase interior comfort.
Is Zip plywood waterproof?
Huber manufactures the premium OSB products such as Advantech sheathing, which many builders prefer over plywood, due in part to quality problems they were seeing in plywood. Zip Sheathing can provide a very tight, weatherproof shell in one step.
How long does zip sheathing last?
The UV rating for ZIP System is three months, and Tyvek® is four months. Potential damage due to exposure to the sun’s rays is less for Barricade® Building Wrap than ZIP System and Tyvek® HomeWrap®.
How long can zip board be exposed to weather?
How long can ZIP System sheathing and tape be exposed to weather? ZIP System building enclosure products have a 180-day Exposure Rating.
Is Zip wall fire rated?
ZIP System sheathing can be utilized in any fire rated assembly that references a wood structural panel with corresponding thickness. However, wood structural panels are not always a specified component of fire-rated wall assemblies.
What type of foam is in zip R Sheathing?
Zip System R-Sheathing combines the strength, weather-resistive, and air barrier qualities of ZIP System Sheathing with the thermal resistance of polyisocyanurate foam insulation.
Can zip system be used for shear walls?
ZIP System® R-Sheathing panels may be used in the construction of wood shear walls when the design is in accordance with Table 2 and 2015, 2012, or 2009 IBC Sections 2305 and 2306, as applicable.
Can zip panels get wet?
With the ZIP System sheathing, the water-resistance relies on the sealing tape adhesive that seals the joints. The tape is guaranteed for only 30 years and relies on the strength and longevity of the adhesive. If it fails, water can penetrate.
Do I need ice and water shield on zip system?
These products are typically a peel- and-stick type of sheet membrane that is installed on the eaves and also in the valleys on roofs. ZIP System sheathing is not a replacement for these types of membranes. Ice and water membranes need to be installed according to code if ZIP System sheathing is installed.
Is Zip sheathing an air barrier?
ZIP System sheathing and tape creates a durable, rigid air barrier to protect against both air infiltration and exfiltration to help achieve a tight building envelope.
How much more expensive is zip sheathing?
Plywood can range from $16-$24 per sheet and $2,800-$4,200 for the whole house. While ZIP can be $16-$26 per sheet, leaving you with $2,800-$4,700 for the whole house. Aside from cost, there are also other factors to take into account when debating which type of sheathing will be better for you.
Can you use zip on roof?
ZIP System® sheathing may be used for roofs and walls in Type V construction, in Type III construction as roof sheathing only, and other construction permitted under the International Residential Code.
How do you fasten zip R Sheathing?
ZIP System® R-Sheathing – Tape Installation
Apply ZIP System™ tape after ZIP System® R-Sheathing panels are fully fastened to wall framing. Only ZIP System tape should be used to seal the seams of ZIP System R-Sheathing. Make sure that the panel surface is dry and free of sawdust and dirt prior to taping.
Is Zip better than Tyvek?
d.
The Tyvek Wrap products are vapor permeable at 54 perms, allowing the building walls to dry quicker than ZIP Sheathing, which is permeable at 16 perms.
Is OSB better than plywood?
Wood fiber is used more efficiently in osb. Osb is stronger than plywood in shear. Shear values, through its thickness, are about 2 times greater than plywood. This is one of the reasons osb is used for webs of wooden I-joists.
