Wireways are designed to protect cables from environmental contaminants such as dust, dirt, oil, and moisture. Wireways—sometimes known as “troughs” or “gutters” within the electrical contracting field—are commonly used to control wiring in environments where contaminants may cause problems.
What is a Wireway used for?
Wireways protect conductors by preventing kinks and damage from elements like dust or water. They route electrical wiring, electrical feeders, branch circuits, and other groups of conductors.
What are the different types of Wireway?
Wireway is designed to house runs of power, control and communication and are available in a number of NEMA types.
NEMA Type 1 screw cover lay-in wireway.NEMA Type 1 quick-connect hinge cover lay-in wireway.NEMA Type 3R lay-in EnviroShield wireway.NEMA Type 12 lay-in wireway.NEMA Type 12 feed-through wireway.
How do you calculate Wireway size?
Wireway selection
List cables by size and types.List cable cross sectional areas.List the number of each size of cable.Multiply cable cross sectional areas by number of each cable.Sum the total cross sectional areas of each cable type to obtain the total cross sectional areas for the conductors.
What is a wire raceway?
A raceway (sometimes referred to as a raceway system) is an enclosed conduit that forms a physical pathway for electrical wiring. Raceways protect wires and cables from heat, humidity, corrosion, water intrusion and general physical threats.

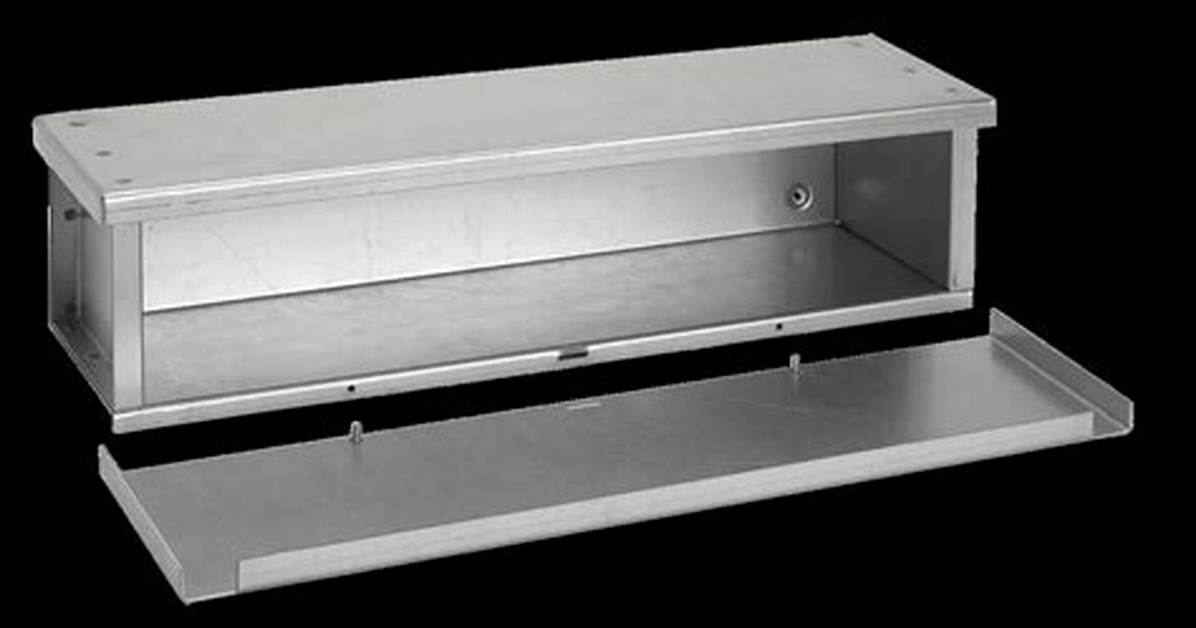

What is a metal Wireway?
Sheet metal troughs with hinged or removable covers for housing and protecting electrical wires and cable and in which conductors are laid in place after the raceway has been installed as a complete system.
What is the maximum wire fill for a metal Wireway?
The maximum number of conductors in a wireway is limited to 20% of the crosssectional area of the wireway [376.22]. Splices and taps must not fill more than 75% of the wiring space at any cross section [376.56].
What is the difference between electrical raceway and conduit?
is that raceway is a place where races are held a racetrack while conduit is a pipe or channel for conveying water etc.
What is the maximum number of wires permitted in any given cross section of a Wireway?
The maximum number of conductors or cables permitted in a wireway is limited to 20% of the cross‑sectional area of the wireway [Sec. 376.22(A)]. Splices and taps must not fill more than 75% of the wiring space at any cross section [Sec.
What is Channel cable tray?
Channel cable tray is a sort of fully enclosed cable tray made from stainless steel, carbon steel, FRP, aluminum alloy. Channel cable trays have powder coated, hot-galvanized and electro galvanized surface mainly used to support computer cables, communication cables, thermocouple cables and other control cables.
Where splices and taps are made up in a Wireway at the point of the splice the Wireway Cannot be filled to more than?
splices and taps, shall not fill the wireway to more than 75 percent of its area at the point of a splice or tap.
When conductors are installed in parallel they must generally be size and larger?
Parallel conductor installations are covered in NEC 310.10(H) and are permitted for each phase, polarity, neutral, or grounded conductor in sizes 1/0 AWG and larger. Joining conductors in parallel is like having two or more smaller conductors connected at each end to make one larger conductor.
What is the difference between cable tray and Raceway?
That said, raceways generally mount on a wall in a room where power and communications cables are terminated. Cable trays are usually overhead or under raised floors but carry open wiring. They are used to distribute cables from the source to the point of use.
What is a cable runner?
Cable runners are workers who install and repair telecommunications lines such as fiber optic cables and other cables used to send television and Internet signals.
How do cable raceways work?
Cable raceways provide a surface-mounted pathway for wiring that completely encloses the cables and protects them from heat, dust, light and even moisture. Cable raceways are also a great tool for routing wiring and for concealing cables that would otherwise be exposed.
