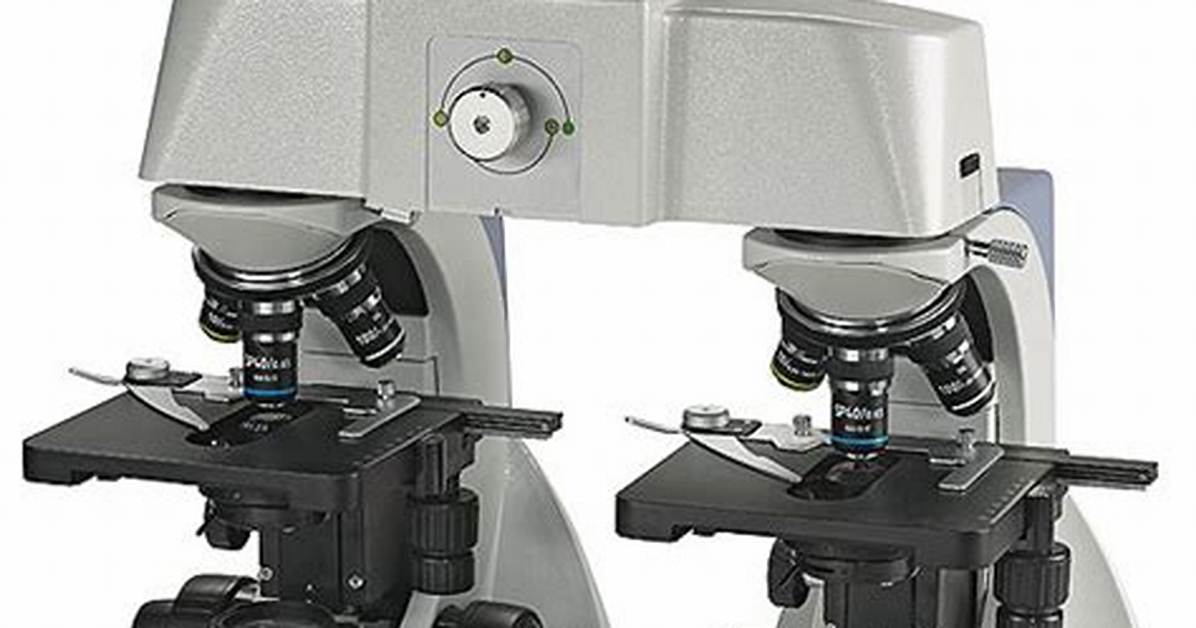

A comparison microscope is a device used to analyze side-by-side specimens. It consists of two microscopes connected by an optical bridge, which results in a split view window enabling two separate objects to be viewed simultaneously.
What is a comparison microscope forensics?
The comparison microscope is the mainstay of forensic science allowing two objects or samples to be compared side by side. While the primary use of this type of instrument is criminology as in ballistics, other scientific fields including paleontology and archaeology utilize these special compound microscopes.
Who discovered the comparison microscope?
Phillip O. Gravelle developed the comparison microscope for use in firearm investigations with the assistance of Colonel Goddard in the early1920’s. An optical comparison microscope consists primarily of two relatively low powered, two-dimensional (2D) compound microscopes joined by an ocular unit or optical bridge.
Why is a comparison microscope a useful tool in forensic investigations?
The comparison microscope is used in forensic sciences to compare microscopic patterns and identify or deny their common origin. Without this device, the identification of toolmarks and firearms would be such a cumbersome process that it would be carried out on a very limited basis.
What are some issues with using a comparison microscope?
Problems associated with this approach included these:
The evidence items were examined in sequence, not simultaneously.The evidence items could only be simultaneously compared using photographic prints.The photographs taken were two-dimensional representations of three-dimensional objects.
Is a comparison microscope used to study firearms?
Forensic comparison microscopes are used for viewing bullet/fragments, shrapnel, firearms, cartridge case, opaque specimens and other specimens that need identification, origin, and comparison.
Which of the following is true regarding a comparison microscope?
Which of the following is TRUE regarding a comparison microscope? It’s really two microscopes joined together. It’s made of one stage and one field of view. It’s used to compare items sequentially.
What is a stereoscopic microscope used for?
A stereomicroscope, sometimes called a dissecting microscope or a binocular inspection microscope, is a low-power compound instrument used for a closer examination of three-dimensional specimens than is possible with a hand lens (Figure 1).
Who was the first to employ the use of a comparison microscope?
The use of the comparison microscope to perform side-by-side analysis of hairs collected from a crime scene and hairs from a suspect or victim first occurred in 1934 by Dr. Sydney Smith. This method of comparison helped solve the murder of an eight-year-old girl.
What type of microscope do investigators use to compare bullets and casings?
Stereo microscopes are used to determine basic class characteristics of fired bullets, bullet fragments and cartridge/shotshell cases. A comparison microscope is used for the examination of fired bullets, bullet fragments and cartridge/shotshell cases.
What did Calvin Goddard microscope allow him to do?
Forensic scientist named Calvin Goddard linked bullets from the crime scene to Tommy guns found at the home of one of Capone’s men. 2. That microscope had a split screen that allowed Goddard to compare bullets or cartridge cases, the metal cases a gun ejects after firing a bullet, side by side.
How the comparison of tool marks is carried out by comparison microscope?
A comparison microscope, which consists of two microscopes connected with which two objects can be observed simultaneously with the same degree of magnification, or a stereomicroscope is then used to compare the comparison tool marks and the tool markings under study.
What two people invented the comparison microscope?
2: The first comparison microscope, produced in 1911 by the Optical Institute of Wilhelm and Heinrich Seibert in Wetzlar.
What kind of microscope is used for fluorescence imaging?
Most of the fluorescence microscopes used in biology today are epi-fluorescence microscopes, meaning that both the excitation and the observation of the fluorescence occur above the sample. Most use a Xenon or Mercury arc-discharge lamp for the more intense light source.
What features will criminalist look when comparing paint evidence under microscope?
What characteristics does a criminalist’s look for when comparing paint chips under a microscope? Which of these characteristics is most important in evaluating the significance of paint evidence? Color, surface texture, and color layer texture. Color Layer Sequence is the most important.
What is a comparison Macroscope?
The new Leica FS C motorized comparison macroscope is a modular system for all comparison applications in the forensic laboratory—whether for comparing marks on fired ammunition parts, tool marks, or documents. It combines an innovative, intelligent automation concept with outstanding ergonomic features.
What is bullet comparison?
Comparison of bullets involves “class” and “individual” characteristics. These characteristics are based upon “striae” left on the bullet as it passes through the barrel. Class refers to the type of caliber and rifling. Rifling pattern may turn to the right or left, with a given rate of twist.
