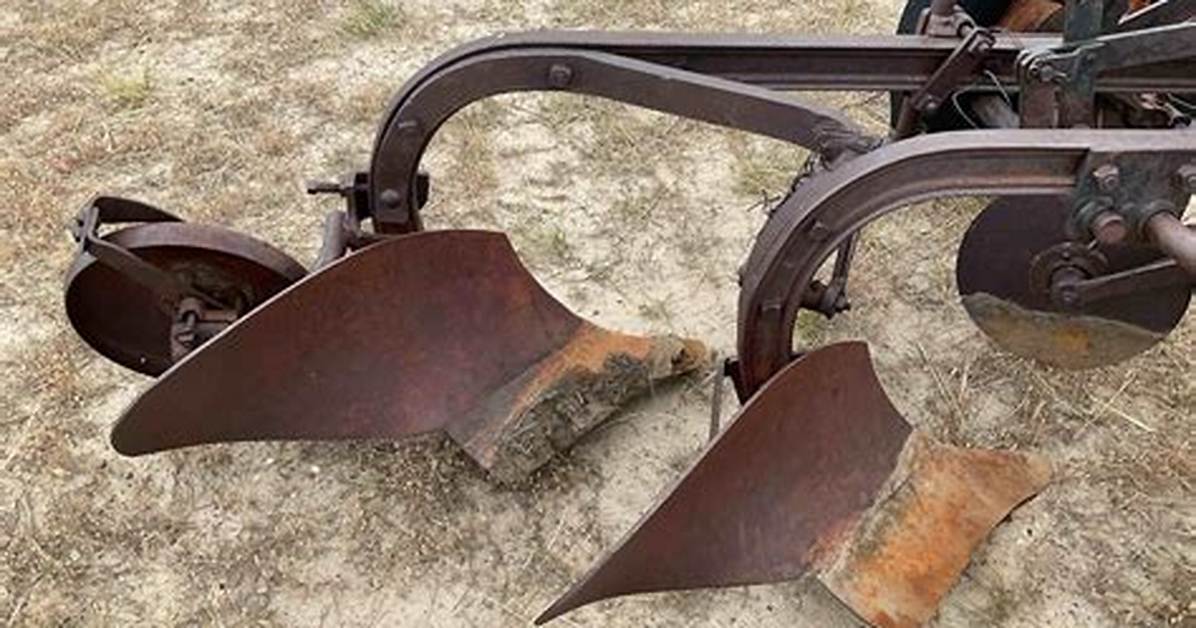

Bottom plows are ideal for use on flat ground and adequately break up clay or heavily compacted soil. They do not create a ridge between rows as middle buster plows do.
How much horsepower do I need for a two bottom plow?
The general rule for a plow is 20-25 hp per bottom. 4 wheel drive and whether or not the engine is gas or diesel will also effect the tractors ability to pull the plow.
What are the different types of plows?
Types of Plows According to the Number of Furrows
Single furrow plow.Double furrow plow.Multiple furrow plow.
Can you plow with a middle buster?
Middle busters are also known as potato plows. If you are interested in disturbing the top 6-to-8 inches of soil to make it easier to move with a bucket, it seems the middle buster might be best.
What is a 4 bottom plow?
The bottom plow has four basic parts. The moldboard turns the soil; the plow point cuts the bottom of the furrow; the plow shear cuts the side of the furrow; and the tag wheel helps support the plow.
What is a chisel plow?
description. In agricultural technology: Primary tillage equipment. The chisel plow is equipped with narrow, double-ended shovels, or chisel points, mounted on long shanks. These points rip through the soil and stir it but do not invert and pulverize as well as the moldboard and disk plows.
What are the parts of a bottom plow?
The principle parts are the share, shin, moldboard, landside, frog, and brackets (Figure 2a,b). The tip of the share is pointed downward, causing the plow to run into the ground. This is called ‘suction’; it literally sucks the plow into the ground. The share cuts the furrow bottom, while the shin cuts the furrow wall.
What do you do after you plow?
Always clean your moldboard after plowing. You don’t have to dry it like fine china, but if it’s going to stand around without being used for a while, it should be covered thoroughly with grease to prevent rust.
Which direction do you plow a field?
The most logical way of plowing terraced land is to use a two-way plow. Begin on the down-hill side of the terrace, throw all furrows up hill, and continue back and forth until the channel of the next terrace down hill is reached.
Can a 40 hp tractor pull a 3 Bottom plow?
The “rule of thumb” is 15 horsepower per bottom. 45 horsepower should handle a 3 bottom plow in most soil conditions.
How many HP does it take to pull a 3 Bottom plow?
As with the other comments, there are a lot of variables, but I saw one published rule of thumb of 1 HP for each inch of plow. So a 3 bottom with 12″ plows would need 36 HP.
Can a 8N pull a 2 bottom plow?
A Ford 8N will pull a two bottom plow with no problem.
What is a subsoil plow?
Definition of subsoil plow
: a plow without a moldboard that is used for stirring without turning over the deeper soil usually beneath previously plowed furrows.
What kind of plow do I need?
The bigger the plow, the heavier it is. For commercial work, since you will probably require a larger plow, you will need at least a ¾ ton pickup truck whose FGAWR can handle the weight of larger plows. For personal plow use, a ½ ton truck, or in some cases even smaller, should be ample for your needs.
