Replacement windows have no nailing fins or flanges. They are smooth-sided for easy insertion.
How can I waterproof my windows without a flange?
How to Install a Window Without Nailing Fins
Measure the dimensions of the window with a tape measure and frame the rough opening to be 1/2 inch wider and 1/2 inch longer. Seal the sill with tarpaper or with a vinyl sill sealer. Close the window you are going to install.
What is the difference between a fin window and a flange window?
Nailing fins, sometimes called mounting flanges, are the thin strips installed on the exterior sides of a window. Unlike a “front flange” which is a decorative trim piece, a nailing fin is usually set back from the outer edge of the window frame and has fastener holes punched into it.
How do you install a nail flange on a window?
Turn the window frame a quarter turn. Place the other two nail fin strips on the top and bottom of the window, with the hole-side face down just as you did the other sides. Screw the other two nail fin strips on just as you did the first two. The window is ready to install into the frame opening.
What is a flush flange window?
What is a flush fin frame window? Flush fin (also known as Z-Bar) frames are designed to replace aluminum frame windows while preventing damage to stucco and interior dry wall. It consists of a vinyl fin that surrounds the perimeter of the window frame and is flush with the exterior frame of the existing window.
What is a Florida flange window?
Florida Flange is a large exterior fin, used on windows in concrete applications with block openings. The Florida Flange is attached to the wooden framework or buck, and sealed to the masonry wall. This is done to conceal the existing frame and to give a clean finished look.

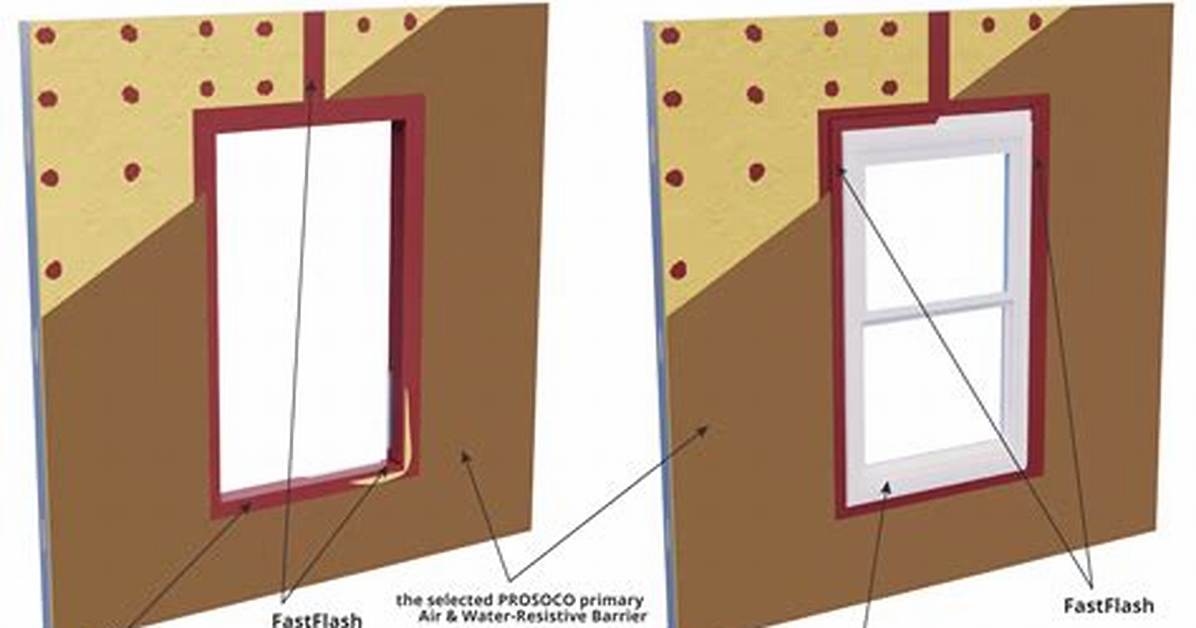

What is window flashing tape?
What is Flashing Tape? By definition, flashing tapes are thin continuous impervious materials that prevent water and air infiltration within the building envelope.
What is a sill adapter?
Sloped Sill Adapters are designed to fill in the exterior gap between the bottom of a vinyl window and an existing sill. They come pre-taped and pre-scored, allowing for a quick and easy install.
Can I install a replacement window in a rough opening?
Replacement windows are not designed to be installed in rough openings. They are designed to be installed inside of an existing window opening with the sashes removed. If the exterior side of the wall has been stripped down to the sheathing, you would want to use a new construction window.
Can you use a new construction window for a replacement?
Can New Construction Windows Be Used for Replacement? New construction windows can be used for replacement window projects in two ways. Remember, the only difference between a new construction window and a replacement window is the nail fin.
How do you replace Windows without removing siding?
How to Replace a Window Without Removing the Siding in 12 Steps
Tools You’ll Need.Measure the Window.Prepare Your Workspace.Remove the Old Window.Remove the Casing (If Applicable)Inspect the Siding/Window Frame.Add a Flashing Tape or Other the Window.
