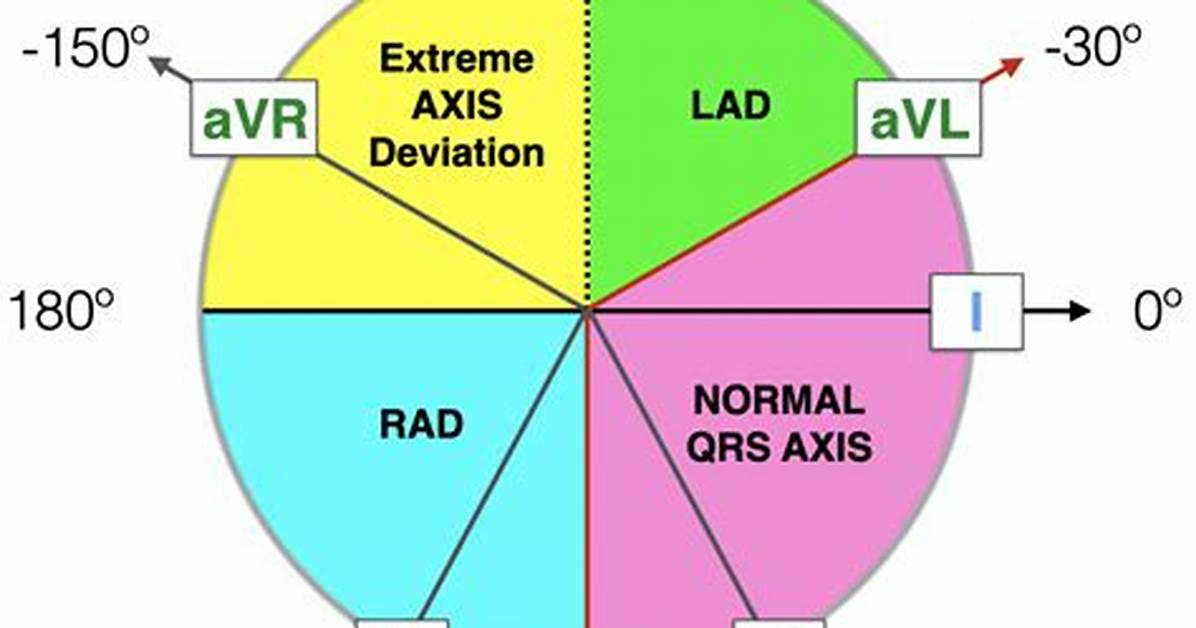

The axis of the ECG is the major direction of the overall electrical activity of the heart. It can be normal, leftward (left axis deviation, or LAD), rightward (right axis deviation, or RAD) or indeterminate (northwest axis). The QRS axis is the most important to determine.
What is the normal range of Axis?
P-wave axis was automatically measured on study electrocardiogram and visually confirmed, with the normal range being between 0° and 75°.
Why is axis deviation important in ECG?
Right axis deviation (RAD) involves the direction of depolarisation being distorted to the right (between +90º and +180º). The most common cause of RAD is right ventricular hypertrophy. Extra right ventricular tissue results in a stronger electrical signal being generated by the right side of the heart.
What is a good T axis?
The frontal plane T-wave axis was estimated from 12-lead electrocardiograms obtained on admission and categorized as normal (15 degrees to 75 degrees ), borderline (75 degrees to 105 degrees or 15 degrees to -15 degrees ), and abnormal (>105 degrees or
What is abnormal P axis?
Abnormal P-wave axis is defined as any value outside 0–75° (Figure 1) (31).
What causes axis deviation?
Some of the causes include normal variation, thickened left ventricle, conduction defects, inferior wall myocardial infarction, pre-excitation syndrome, ventricular ectopic rhythms, congenital heart disease, high potassium levels, emphysema, mechanical shift, and paced rhythm.
Does left axis deviation mean heart disease?
The results were that the development of left axis deviation in men 40 to 59 yr of age, independent of blood pressure is a significant predictor of ischemic heart disease events that are usually manifest 5 to 10 yr after the onset of this electrocardiographic abnormality.
What is right axis deviation ECG?
Right axis deviation occurs when the QRS axis is shifted between 90 and 180 degrees. A number of things can result in right axis deviation which include lung disease, right sided heart strain, right bundle branch block, and right ventricular hypertrophy. See the section on determining axis for more details.
How serious is left axis deviation?
In conclusion, among patients with left bundle branch block, those with left axis deviation have a greater incidence of myocardial dysfunction, more advanced conduction desease and greater cardiovascular mortality than those with a normal axis.
How serious is right axis deviation?
Although not a dangerous finding in and of itself, axis deviation may be an indication of a serious underlying condition. A careful history to elicit acute cardiac injury is therefore of utmost importance.
What does abnormal T wave axis mean?
The axis of the T-wave on the electrocardiogram (ECG) is a marker of ventricular repolarization that, when deviated from normal by more than 60 degrees in either direction in the frontal plane, has been strongly associated with an increased risk of fatal and non-fatal cardiac events in older adults (1) as well as all-
What is abnormal ECG?
An abnormal ECG can mean many things. Sometimes an ECG abnormality is a normal variation of a heart’s rhythm, which does not affect your health. Other times, an abnormal ECG can signal a medical emergency, such as a myocardial infarction /heart attack or a dangerous arrhythmia.
What is an abnormal T wave?
T-wave abnormalities are common electrocardiographic occurrences in patients with non-ST-segment elevation acute coronary syndromes. Although these abnormalities are considered relatively benign, physicians use them to guide therapies.
Is left axis deviation serious?
Left axis deviation (LAD) is the most common “abnormality” in adults, occurring in over 8% of patients. It can be part of the criteria for LVH, but in isolation it has little significance. Marked LAD (45% or more) is calledleft anterior hemiblock orleft anterior fascicular block.
Does left axis deviation mean heart disease?
The results were that the development of left axis deviation in men 40 to 59 yr of age, independent of blood pressure is a significant predictor of ischemic heart disease events that are usually manifest 5 to 10 yr after the onset of this electrocardiographic abnormality.
What can cause axis deviation?
causes of right axis deviation
normal finding in children and tall thin adults.right ventricular hypertrophy.chronic lung disease even without pulmonary hypertension.anterolateral myocardial infarction.left posterior hemiblock.pulmonary embolus.Wolff-Parkinson-White syndrome – left sided accessory pathway.
Is right axis deviation serious?
Right axis deviation is a strong indicator of pulmonary hypertension in a risk population.
