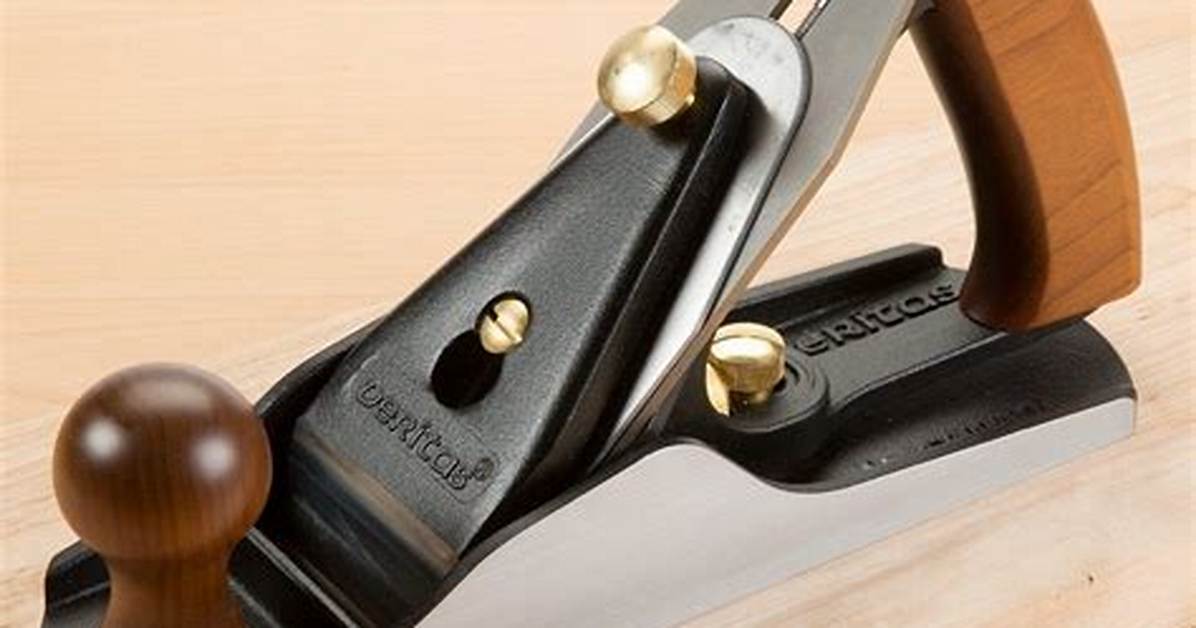

A smoothing plane or smooth plane is a type of bench plane used in woodworking. The smoothing plane is typically the last plane used on a wood surface, removing very fine shavings to leave a smooth finish. When used effectively it quickly produces a finish that equals or surpasses that made by sandpaper.
What is the difference between a jack plane and a smoothing plane?
In the case of smoothing a large workpiece such as a tabletop, the traditional method involves starting with a jack (or jointer) plane in both diagonal directions before going with the grain to remove any high spots. Then, you switch over to a smoothing plane to “further smooth” the surface.
Do I need a smoothing plane?
Having a small smoothing plane is tremendously beneficial. You’ll be able to finish the surface beautifully whilst removing as little material as possible, because it won’t be making any attempt to flatten.
What is the difference between a scrub plane and a smoothing plane?
A smoothing plane relies on a tight throat opening next to the cutting edge to reduce tear out, but a scrub plane needs plenty of room to clear the large chips it produces. You might get lucky and determine that your plane already has a wide enough throat opening.
What angle is a smoothing plane?
The cutting angle of a standard metal smoother is fixed at 45° by the plane’s frog, as shown at left. This cutting angle, along with a bevel angle of between 25° and 30°, will produce good results in most woods.
Can you use a jack plane for smoothing?
Set it up with a minutely cambered iron and take a light shaving and you can use the jack as a long-ish smoothing plane.
What is a No 4 plane used for?
Comes with a high carbon steel blade and has an adjustable frog. The No. 4 is a standard smoothing plane, and is typically used just prior to sanding, scraping or finishing. It is 9-3/4” long x 2-1/2” wide with a 2” wide iron.
Can you smooth with a block plane?
long, a block plane is designed to be used with one hand, and it can fit easily inside a tool pouch. For projects such as cabinets, these small planes have a variety of uses: chamfering, cutting end grain, leveling corner joints, trimming miters, cleaning up saw cuts, and smoothing straight and curved edges.
What is a No 6 plane used for?
The No. 6, also called a “fore” hand plane is good for jointing edges and flattening and smoothing large surfaces, such as table tops, panels and workbench tops, where you might not want or need the length or weight of a larger plane.
What plane is used for finishing?
Smoothing plane: This tool is used to prepare the wood for finishing.
What’s a jack plane for?
A jack plane is a general-purpose woodworking bench plane, used for dressing timber down to size in preparation for truing and/or edge jointing. It is usually the first plane used on rough stock, but for rougher work it can be preceded by the scrub plane.
Why is a jack plane called a jack plane?
How did the Jack Plane get its name? Its name is related to the saying “jack of all trades”, as jack planes can be made to perform some of the work of smoothing, fore and jointer planes, especially on smaller pieces of work.
What is a scrubber plane?
The scrub plane is a type of plane used to remove large amounts of wood from the surface of lumber, such as when eliminating cup or twist in the first stages of preparing rough stock, or when reducing the thickness of a board significantly.
What is a block plane best for?
A block plane is a small metal-bodied woodworking hand plane which typically has the blade bedded at a lower angle than other planes, with the bevel up. It is designed to cut end grain and do touchup or finish work. It is typically small enough to be used with one hand.
Does Stanley still make hand planes?
Hand Planes (20) Our large lineup of specialized hand planes includes lock planes, smoothing planes, jack planes, leveling planes, and more. From jointing and truing to smoothing and leveling, we have the hand plane you need for the job.
What is a smoothing plane used for in construction?
A smoothing plane is a woodworking tool used for the final stage (usually), of making a piece of wood smooth, often used after a jack plane has been used.
What is a scrub plane used for?
A scrub plane is designed to quickly remove large quantities of wood. Based on the Stanley 40 1/2, the open throat and curved blade allow you to take deep cuts with ease. Our Scrub Plane can quickly thickness rough sawn boards or cut stock to width before following with a Jack or Smoothing Plane.
How big is a smooth plane?
But the 4 is the most common size of smoothing plane, and it has a good balance of sole length and iron width for most furniture work (and most people probably can reach that depth-adjustment knob while planing).
