The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture.
What size ceiling rafters do I need?
Though there is no standard joist size for the ceilings in all buildings, most average homes use ceiling joists in a board size of 2-by-6 inches. The range of joist sizes used in homes varies though, between 2-by-4 inches and 2-by-12 inches.
What are 3 types of rafters?
The most common types of rafter include:
Principal rafter: Usually the largest type of rafter located at the ends of a roof structure.Common rafter: Smaller rafters located in between the principals at both ends.Auxiliary rafter: Less common but can be used to support and reinforce a principal rafter.
What are the different types of rafters?
The seven types of roof rafters are often used in combination. There are basically seven different types of roof rafter designs used to create a roof: common, hip, hip jack, valley, valley jack, cripple jack and flying hip.
What are roof rafters called?
A roof truss is a pre-manufactured roofing component — what you’d typically consider to be the rafters of a roof. Trusses are manufactured offsite, and then shipped already assembled to a construction site to reduce on-site labor and speed the building process along.
Do I have trusses or rafters?
One of the main differences between truss roofs vs. rafters is the fact that trusses are prefabricated wooden structures while rafters are usually built on-site. For trusses, the triangular webbing of structural pieces not only provide support for the roof, but they also tie the outside walls of the home together.
How far apart are ceiling rafters?
Ceiling joists are usually installed either 16 or 24 inches on center, which means roughly 16 or 24 inches apart. Once you’ve located the first one, the others are easier to find.
Do rafters need ridge boards?
Yes, either a ridge board or a ridge beam is necessary, and required by the building code, where roof rafters meet at the the center of their span.
Can you use 2×4 for ceiling joists?
A 2×4 can span a maximum of 6′ 7” when spaced 16” apart and used as a floor or deck joist. When used as a ceiling joist or a roof rafter, a 2×4 can span up to 7′ 3” spaced at 16”, and 6′ 4” when spaced 24” apart. Due to the small spans of 2x4s, they often are not used in horizontal load-bearing capacities.
Can I use 2×6 for rafters?
You can use either 2×6 or 2×4 rafters for roofs with a 3/12 pitch or greater, but it depends on the overall size of your shed. For roofs that won’t experience heavy snow loads, a gable roof can span up to 22′ with 2×4 rafters.
How much weight can a 2×4 rafter hold?
While a standard 8-foot 2×4 can support about 1,000 pounds vertically and up to 300 pounds horizontally (when placed on edge), It’s important to remember that not all 2x4s are the same. Factors such as wood species, moisture content, and grade impact how much load a 2×4 can hold vertically or horizontally.
Can I use 2×8 for rafters?
But first, generally, how far can a 2×8 span without support? Depending on various factors, the maximum span for a 2×8 floor joist is 16′ 6”. The maximum span for roof rafters is 23′ 9”. For headers, the maximum span is 11′ 2”.
How thick is a rafter?
In general, a 2-by-4 roof truss will support as much roof load as a 2-by-6 or 2-by-8 rafter. Standard roof sheathing consists of 4-by-8 plywood or oriented strand board, or OSB. It is 1/2-inch thick and attaches to the roof rafters or trusses.
How are rafters supported?

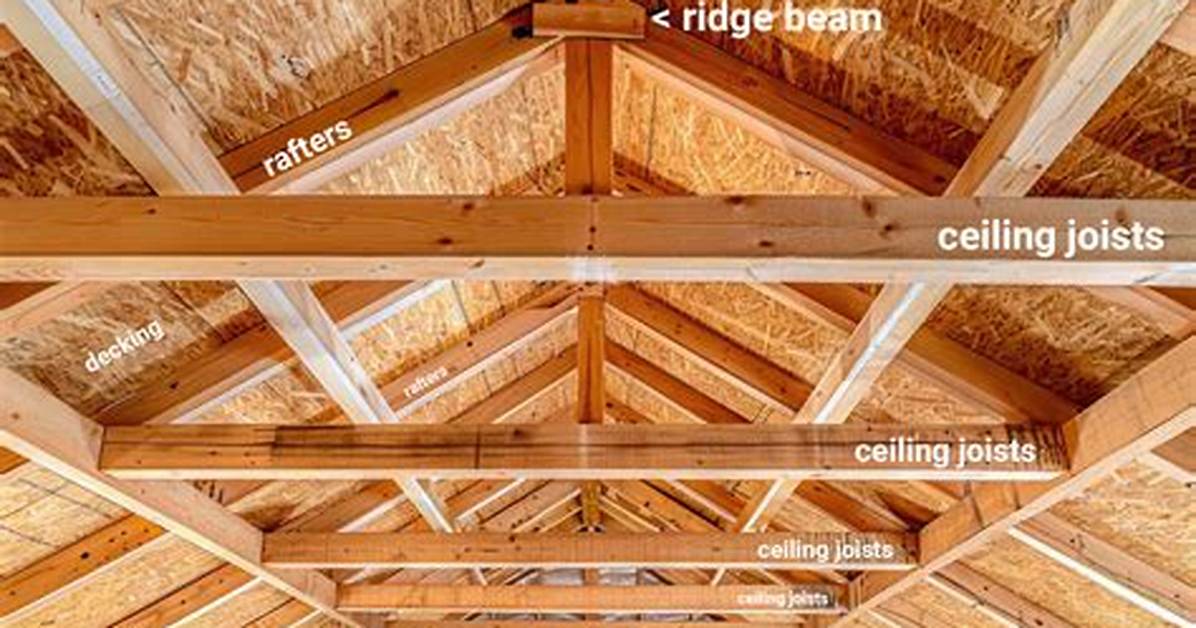

In homes with flat ceilings and an attic space, the bottoms of opposing rafters should be fastened together with ceiling joists, which form “rafter ties.” When rafters have been installed perpendicular to the ceiling joists, rafter ties typically rest on top of the ceiling joists.
What is the difference between a rafter and a purlin?
The rafters are the beams of wood angled upward from the ground. They meet at the top of the gable at a ridge beam, which has extra bracing to attach it to the rafters. The purlins are the large beams perpendicular to the rafters; from this shot, it appears that there are three purlins on either side of the roof.
What is the difference between rafters and trusses?
rafters is the fact that trusses are prefabricated wooden structures while rafters are usually built on-site. For trusses, the triangular webbing of structural pieces not only provide support for the roof, but they also tie the outside walls of the home together.
Which is better trusses or rafters?
At the end of the day, it all comes down to your own needs. If you plan on increasing the amount of room or storage space in your attic, rafters are the right choice. If you’re looking to keep your attic the way it is and want stronger support and quicker roof construction, we recommend installing roof trusses.
What is the end of a rafter called?
Rafter Terms
Plumb cut, typically called the ridge cut, at the top end of the rafter. Birdsmouth, which consists of two cuts – a horizontal seat cut and a vertical shoulder cut.
