The power factor of an AC circuit is defined as the ratio of the real power (W) consumed by a circuit to the apparent power (VA) consumed by the same circuit. This therefore gives us: Power Factor = Real Power/Apparent Power, or p.f. = W/VA.
How is apparent power factor calculated?
Apparent power, also known as demand, is the measure of the amount of power used to run machinery and equipment during a certain period. It is found by multiplying (kVA = V x A). The result is expressed as kVA units. PF expresses the ratio of true power used in a circuit to the apparent power delivered to the circuit.
What is apparent power?
Apparent Power is the Total Power Flowing
The total power flowing is known as the “apparent power” and is measured as the product of the voltage and current (V * I).. For example, if 208 volts and 5 amps are measured – the apparent power is 1040VA (VA means volt-amps – the measurement unit of apparent power).
What is apparent power in AC operation?
Apparent power is a measure of alternating current (AC) power that is computed by multiplying the root-mean-square (rms) current by the root-mean-square voltage.
How do you calculate apparent power in single phase?
P = V x I (In DC circuits) P = V x I x Cosθ (in Single phase AC Circuits)
How do you calculate VA?
VA = VRMS x IRMS (4)
You can calculate the apparent power in volt-amperes for ac circuits by multiplying the measured RMS voltage times the measured RMS current. A standard multimeter usually can make both of these RMS measurements.
What is apparent and real power?
Real power is the power actually consumed due to the resistive load and apparent power is the power the grid must be able to withstand. The unit of real power is watt while apparent power unit is VA (Volt Ampere) Real, reactive and apparent power comparison.
How do you calculate 3 phase apparent power?
Line voltage and phase voltage are the same in a delta connection, and the line current is equal to √3 times the phase current. Hence, for both delta and star connections, the apparent power is: S = √3 × Vline × I.
What is the formula for power factor 12?
The power factor (cosφ) is the ratio of resistance and Impedance of an ac circuit i.e, Power factor, cosφ=ZR.
What is apparent power in AC operation Mcq?
Power factor is defined as the ratio of active power to apparent power. Active power is I*R or VIcosθ. Apparent power is I*Z or VI. 60 times per second.
What are the units for apparent power?
Apparent power is conventionally expressed in volt-amperes (VA) since it is the simple product of rms voltage and rms current.
What is the formula of power in 3 phase?
A = 1000 × kW / (3 × PF × V)
For a 3-phase power supply calculation, you need to multiply 1000 by the power (kW), divided by three times the power factor times line-to-neutral RMS voltage (V).
What is apparent and real power?
Real power is the power actually consumed due to the resistive load and apparent power is the power the grid must be able to withstand. The unit of real power is watt while apparent power unit is VA (Volt Ampere) Real, reactive and apparent power comparison.
What is apparent power in AC operation Mcq?

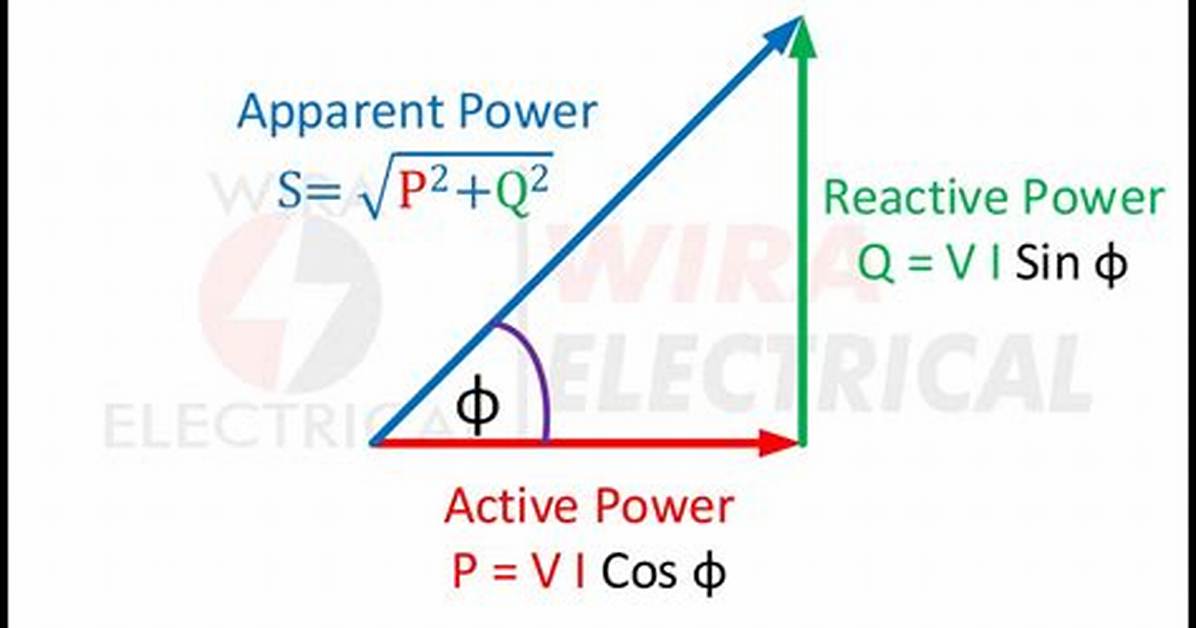

Total power in an AC circuit, both dissipated and absorbed/returned is referred to as apparent power. Apparent power is symbolized by the letter S and is measured in the unit of Volt-Amps (VA). These three types of power are trigonometrically related to one another.
What is active and apparent power?
Active power does do work, so it is the real axis. The unit for power is the watt (symbol: W). Apparent power is often expressed in volt-amperes (VA) since it is the product of RMS voltage and RMS current. The unit for reactive power is var, which stands for volt-ampere reactive.
