General. While both RNAV navigation specifications (NavSpecs) and RNP NavSpecs contain specific performance requirements, RNP is RNAV with the added requirement for onboard performance monitoring and alerting (OBPMA). RNP is also a statement of navigation performance necessary for operation within a defined airspace.

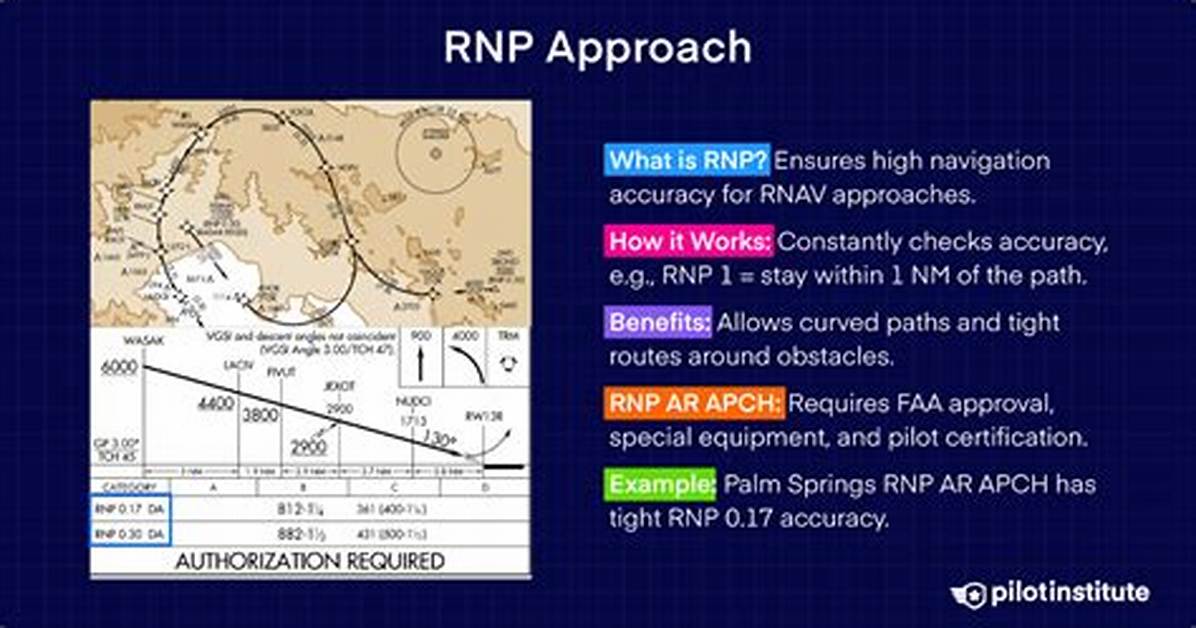

What is required for an RNP approach?
Required Navigation Performance ( RNP ) is similar to Area Navigation ( RNAV ); but, RNP requires on-board navigation performance monitoring and alerting capability to ensure that the aircraft stays within a specific containment area.
Is an RNP approach a precision approach?
They are non-precision approaches although they provide the crews with cues and procedures similar to those used on precision approaches.
Can you fly RNAV without GPS?
The term “RNAV” allows pilots to use various means of area navigation, including but not requiring GPS. They enable specific VOR/DME RNAV equipment to create waypoints on the final approach path by virtually “moving” the VOR a specific DME distance along a charted radial.
What is PBN and difference between RNAV and RNP?
RNAV refers to ‘area navigation’ and it is slightly different to an RNP system (the monitoring and alerting requirements). PBN requires an RNAV or RNP system, while and RNP APCH specifically requires an RNP system.
What is RNAV approach?
RNAV is a method of navigation which permits the operation of an aircraft on any desired flight path; it allows its position to be continuously determined wherever it is rather than only along tracks between individual ground navigation aids.
Is autopilot required for RNAV?
All RNAV approaches must be flown with autopilot and flight director unless no ILS is available and both autopilots have failed, then a manual FD RNAV is permitted. RNAV approaches only use one autopilot. Second autopilot will not engage. Only use approach from database, do not manually build approach.
What is a PBN approach?
Performance Based Navigation ( PBN ) is comprised of Area Navigation ( RNAV ) and Required Navigation Performance ( RNP ) and describes an aircraft’s capability to navigate using performance standards.
Is an RNAV approach a precision approach?
While these next two levels of RNAV minimums are not technically precision approaches (they do not meet international standards to be called such), they can be considered “precision-like.” The familiar localizer performance with vertical guidance (LPV) approaches are in almost no material way different from an ILS,
What does RNAV mean in aviation?
Area navigation (RNAV) is a method of navigation that permits aircraft operation on any desired flight path within the coverage of ground- or space-based navigation aids, or within the limits of the capability of self-contained aids, or a combination of these.
What is the relation between PBN and the RNAV system?
Under RNAV, the equipment used to achieve the navigation accuracy is specified. Under PBN, the Required Navigation Performance is specified and it is up to the operator to achieve that performance.
What is RNP approach with Baro VNAV?
RNP APCH to LNAV/VNAV is a vertically guided approach that can be flown by modern aircraft with VNAV functionality using barometric inputs. Most Boeing and Airbus aircraft have this capability meaning that a large part of the commercial air transport (CAT) fleet is equipped.
What is an RF leg on an RNP approach?
An RF leg is defined as a constant radius circular path, around a defined turn center, that starts and terminates at a fix. An RF leg may be published as part of a procedure.
Does RNAV use VOR?
Area navigation (RNAV) equipment includes VOR/DME, LORAN, GPS, and inertial navigation systems (INS). RNAV equipment is capable of computing the aircraft position, actual track, groundspeed, and then presenting meaningful information to the pilot.
Can you use RNAV on VOR approach?
“Use of a suitable RNAV system as a means to navigate on the final approach segment of an instrument approach procedure based on a VOR, TACAN or NDB signal, is allowable. The underlying NAVAID must be operational and the NAVAID monitored for final segment course alignment”.
Does RNAV have vertical guidance?
Vertical guidance is not provided. When the aircraft reaches the final approach fix, the pilot descends to a minimum descent altitude (MDA) using the onboard barometric altimeter (aka “dive and drive”).
