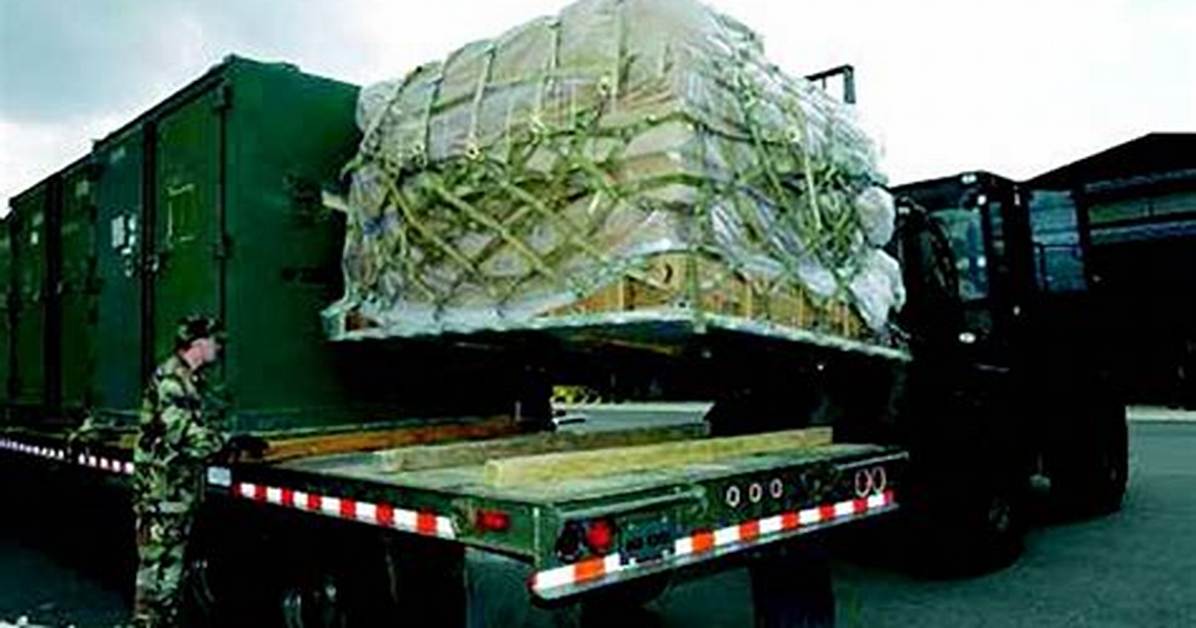

HCU 463L Air Cargo Pallet (HCU-6/E) Specs & Capabilities: Dimensions: 108″ W x 88″ L x 2-1/4″ H. Tare Weight: 290 lbs. Capacity: 10,000 lbs.
Why is it called a 463L pallet?
The “SS” represents Support System, the “463” represents an assigned general system category, 400–499 series for “Support Systems”, and the suffix “L” also represents “Support Systems”. The “463L” does not stand for the period that the pallet was initiated (April 1963); it is the name of the system.
How many 463L pallets fit on a c130?
The C-130 can accommodate up to six 463L pallets. Usable surface dimensions of a 463L pallet are 84 inches long by 104 inches wide.
How much does a 463L pallet cost?
“The 463L pallet and net system cost $1,700 per set and the (proposed) cost of the AIP system is $400,” Blackford said.
How many 463L pallets fit on a 747?
Loading cargo through the nose of a 747-400
That’s about as much as five semi trucks can haul. The 747-400 can hold 30 pallets of goods on the main level. The pallets are 96 by 125 inches (2.4 m by 3.2 m) and up to 120-inches (3.05-m) tall.
What is a NATO pallet?
NATO PALLET 1200mm x 1000mm
The use of columnar ribs in the case walls can support a much taller pallet stack than corrugated boxes. This takes advantage of overhead cargo space that would otherwise be wasted. Handles on all ISP2 Cases will enhance the speed of deployment over conventional containers.
How many 463L pallets fit on a c17?
The full C-17 payload can consist of a maximum of eighteen 463L cargo pallets. Normal troop seating is accomplished with 54 fixed sidewall seats and / or 48 centerline cargo floor seats. For special configurations a maximum seating combination using sidewall seats and 9 seat pallets will support up to 188 passengers.
How many pallets can a Chinook hold?
Each 463L holds up to four wooden pallets, and the COOLS is designed to load three of the 463L system. COOLS can also load a combination of both large and small pallets.
How many pallet nets make a set?
Three nets make up a set. Two side nets are attached to the rings on the pallets and go around the sides of the load, and a top net goes over the top of the cargo.
How wide is an average pallet?
Pallet FAQs
The standard pallet size is 48″ X 40″ with each deck board being 3 ½” wide 5/16″ thick. There are other pallet sizes that are standard across different industries but the above described GMA pallet is the most common and makes up more than 30% of all pallets used in the USA.
What are the minimum dimensions for dunnage?
The dunnage consists of a minimum of three 4- by 4- by 88-inch pieces of lumber equally spaced under the 463L pallet. This aids the movement of the pallets by forklift and protects the lower surface from damage.
How many pallets can a c5 hold?
The C-5 Galaxy routinely carries 73 troops and 36 standard 463L pallets. The aircraft is able to carry two M1 Abrams main battle tanks, or one Abrams tank plus two M2/M3 Bradley fighting vehicles, or six AH-64 Apache/Apache Longbow attack helicopters. Also, the C-5 is able to carry as many as 15 HMMWV (humvees).
How many c5 does the Air Force have?
The C-5M is a modernized version of the legacy C-5 designed and manufactured by Lockheed Martin. Currently the U.S. Air Force owns and operates 52 C-5B/C/M. They are stationed at Dover Air Force Base, Delaware; Travis AFB, California; Lackland AFB, Texas; and Westover Air Reserve Base, Massachusetts.
What is aircraft pallet?
A platform or pallet (in air freight usually from 3/4″ to 2″ thick) upon which a unitized shipment tests or on which goods are assembled and secured before being loaded as a unit onto aircraft. Most carriers offer container discounts for palletized loads.
What is the fuel limit in vehicles loaded on the KC 10?
The hose and drogue refuelling system can transfer fuel at the maximum rate of 470 gallons (1,786l) per minute. The automatic load alleviation system and independent disconnect system offers safety and aids in refuelling operations.
