A spade bit is a wood-boring drill bit that is flat with two sharp lips. The spade bit was invented by the Irwins tool company in 1968 and its design allows for it to scoop material out of a bore-hole quickly.
Are spade bits and paddle bits the same?
The spade bit has a shape similar to—you guessed it—a spade. Some people may also call them “paddle bits.” They have two flat blades with a sharp point in the middle, which spin rapidly and chip away at the wood to create a hole.
What sizes do paddle bits come in?
Spade bits are usually available in metric sizes ranging from 6mm to 36mm and imperial sizes ranging from 1/4″ to 1 1/2″. The size of the bit is usually engraved onto the body of the spade itself so that each bit can be easily identified.

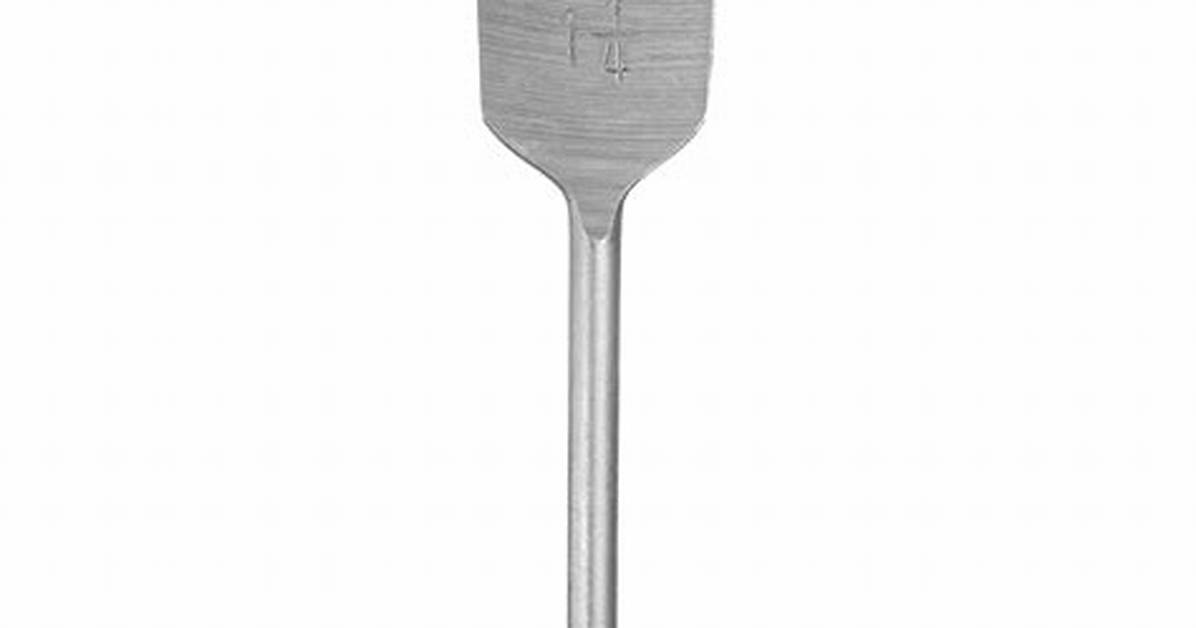

What does a paddle bit look like?
These bits look like their name suggests: Each steel shaft terminates in a spade-shaped blade. The spade is flat, with a sharp point at the center. The point acts as a guide, centering the hole and leading the way, but the bulk of the drilling is actually done by the honed cutting edge at the shoulder of the spade.
Are spade bits good for drywall?
While best suited to drilling softwoods, spade bits can also be used on hardwood, chipboard, fibreboard (such as MDF), plasterboard (used in walls), acrylic and plastic-laminated wood. They can be used in drills, for general use, or impact drivers, if drilling holes in tree stumps or thick, tough wood.
How do you use a paddle bit?
Mark the center point of the hole to be drilled on the wood, and chuck the shank of the bit into the drill. Align the point of the pilot tip of the bit with the mark on the wood, and adjust the angle of the handheld drill so that the shank of the bit is square and perpendicular to the surface of the wood.
Why is it called a Forstner bit?
Another example eponymous product, the Forstner bit, was named for Benjamin Forstner (1834—1897). This bit– it forms flat-bottomed holes — is widely used by woodworkers.
What is a Forstner bit?
Forstner drill bits
The Forstner drill bit, named after its 19th-century creator, Benjamin Forstner, is designed to drill a flat-bottomed hole in wood. It has the same tip spur as a brad-point bit for precision drilling, but the body of the bit is designed to drill a flat-bottomed hole.
What does a spade bit do?
Spade drill bits can be used on wood. Useful for drilling holes in wall studs for framing, electrical, plumbing and fine woodworking projects. Bores holes with a large diameter.
Can I use a spade bit on metal?
no. no, don’t use a spade bit, aluminum has a way of grabbing a drill bit and that can lead to an accident. If you have a drill pess that stands on the floor instead of one of the very small ones, you can purchase a 3/4-inch twist drill bit.
Can you use a paddle bit on a drill press?
Spade bits can be used both in a drill press or a hand-held drill, and there are two ways to regulate hole depth when you’re drilling by hand.
Can You Use a hole saw with an impact driver?
If you want to use a hole saw in your impact driver you can do that too. Dewalt’s Impact Hole Saws have a tooth configuration which is optimised for fast drilling into metal and each one has an integrated hex shank and slug ejection spring for quick and easy use every time.
When would you use a brad point drill bit?
Brad point drill bits are specially designed to drill and bore clean holes in hard and soft woods without wandering. These drill bits have been designed with a center pin as seen in the images below and on the right. A Brad Point Drill Provides a clean, straight, and accurately sized hole in wood.
What is the best drill bit to use for drywall?
If you are finding a brad point drill bit that can dig a perfectly clean hole in the drywall with lots of options in your hand, you can give the steel D1034 a chance. Moreover, it comes with the excellent build quality. The drill bit set has 25 pieces. Any craftsman or DIYer will love the durable design.
What kind of drill bit do I use for drywall?
Drywall really dulls drill bits. I would use a masonry bit if you need to drill a lot of holes. Any bit. Its soft stuff so you can use just about any drill bit to go through it.
Can you drill into sheet rock?
Use a drywall bit if the wall is sheetrock or plasterboard.
For drilling a simple hole into this type of wall, a drywall bit is your best bet. You can purchase drywall bits and other types of drill bits at most hardware or home improvement stores.
