Does PEX Pipe Need To Be Insulated? Yes, although PEX pipes can withstand freezing temperatures better than other pipe materials – but they are not freeze proof!

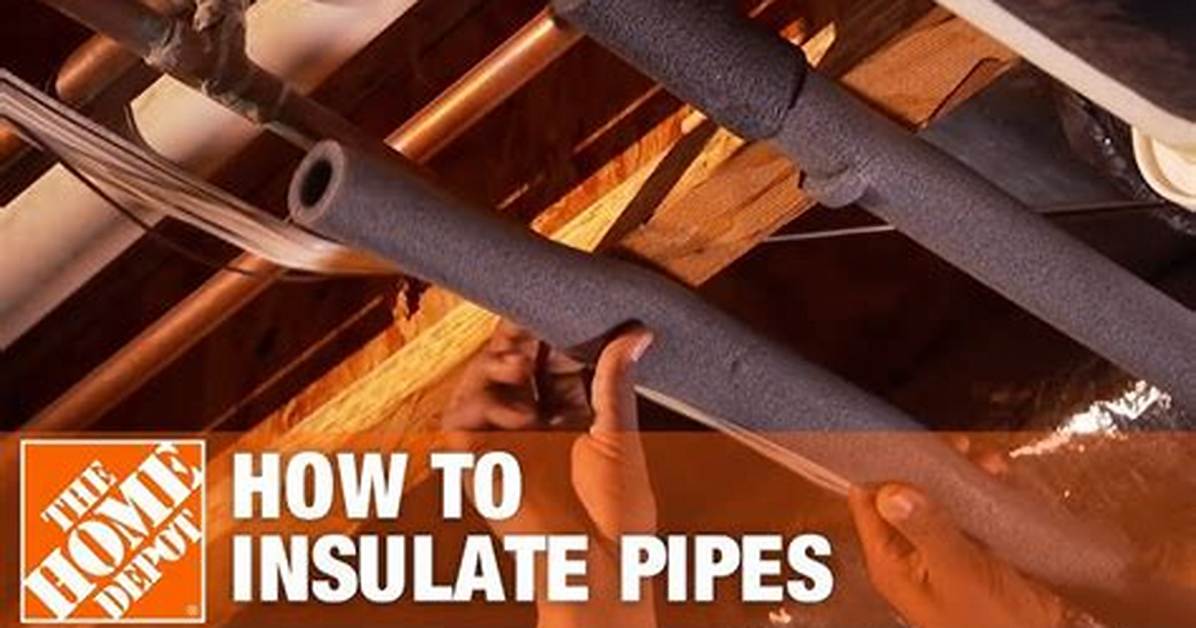

Can you put insulation around PEX pipe?
Because PEX piping is flexible, it is often used in angles, loops, or other non-linear shapes, which makes it imperative to have equally flexible insulation material. Foam is used most commonly, and generally works well.
How do you keep PEX from freezing?
Ways to Keep PEX Pipe from Freezing
Keep the room temperature above 55 F.Add insulation to particularly cold places such as attics, garages and basements.Drip faucets to keep water moving in the pipes.Shut off the water to outside hose bibbs (spigots) & drain the pipes.Install frost-free sillcocks.
Will PEX freeze and burst?
PEX pipes, just like any pipe, can freeze when the temperature drops too low. Because the pipes are designed to be flexible, PEX has the ability to expand. Although it is still possible for them to burst, this means PEX pipes are less likely to rupture after freezing.
Does PEX insulation better than copper?
PEX can also insulate water better than metal, which means hot water will lose less heat than it would in copper. PEX piping also doesn’t suffer from scale buildup or chlorine damage the way copper can, and it can resist freezing conditions that would crack copper.
Will spray foam hurt PEX?
The pex we use here are rated for 200-something psi at 40psi. The sprayfoam should not be a problem.
What temp will PEX pipe freeze?
How To Keep Pex Pipes From Freezing. Generally, if the temperature falls below 20 degrees Fahrenheit ice will form in water lines and pipes will freeze.
What size pipe insulation do I need for 3/4 PEX?
ID = Insulation Inside Diameter = Maximum Pipe OD (Outside Diameter). For example, 5/8″ ID insulation works for 1/2″ copper/PEX/CPVC pipe (5/8″ OD size), 7/8″ ID works for 3/4″ OD copper/PEX/CPVC pipe (7/8″ OD), etc.
Can I put heat tape on PEX?
No. You should not use any type of adhesive material on PEX pipe as over time the adhesive material can interact with the PEX and leech into your water. You can use a heating strip wrapped around the pipe so long as it has no adhesive material.
Will PEX freeze in attic?
While PEX does not ordinarily burst in the cold, the water in the pipes can still freeze. It is important to insulate PEX pipe in an attic, particularly in cold-weather areas.
How long does PEX pipe last?
Additionally, long-term testing programs on PEX have shown that it has a potential lifespan of more than 100 years. So, while copper systems may have to be re-piped every few years or decades due to corrosion and pinhole leaks, a PEX system can last 10 times longer — or more.
Is PEX better than PVC?
When a connection to copper or other metal pipes is required, PEX works better than PVC because crosslinked polyethylene won’t corrode. – Price. When you compare the material costs of PEX vs PVC, PEX comes out more expensive. (However, balance this factor against the lower labor cost to install PEX.)
Is White PEX OK for hot water?
White PEX pipe can be used for either hot or cold water. Gray PEX pipe, like white, can be used for either hot or cold water (although not all DIY centers carry gray).
What is the max temp for PEX tubing?
2) 180°F is the maximum fluid temperature for PEX tubing.
As the temperature increases the max operating pressure drops. Most PEX tubing will be rated for: 160 psi at 73°F.
Can PEX be used underground?
In slab and underground
Some plumbing contractors may be surprised to know that PEX is approved for use in underground as well as in-slab applications.
Where should you not use PEX?
PEX can’t be installed in high heat areas.
You can’t install PEX in high heat areas like near recessed lighting. This also means you can’t connect PEX directly to a hot water heater, but you can use a connecting material to do this.
What are the disadvantages of PEX?
What are the disadvantages of PEX plumbing? Since it is a plastic material, rodents seem to like to chew on it. Also, it can’t be used outdoors because it doesn’t like the UV rays or the cold weather, as well as it can’t be recycled (although you can paint the portions that are exposed to sunlight).
What type of pipe insulation is best?
Pipe insulation materials, such as fiberglass, are best for pipes exposed to hot temperatures, while foam and rubber are a better fit for cold water pipe lines but work in hot pipes as well.
