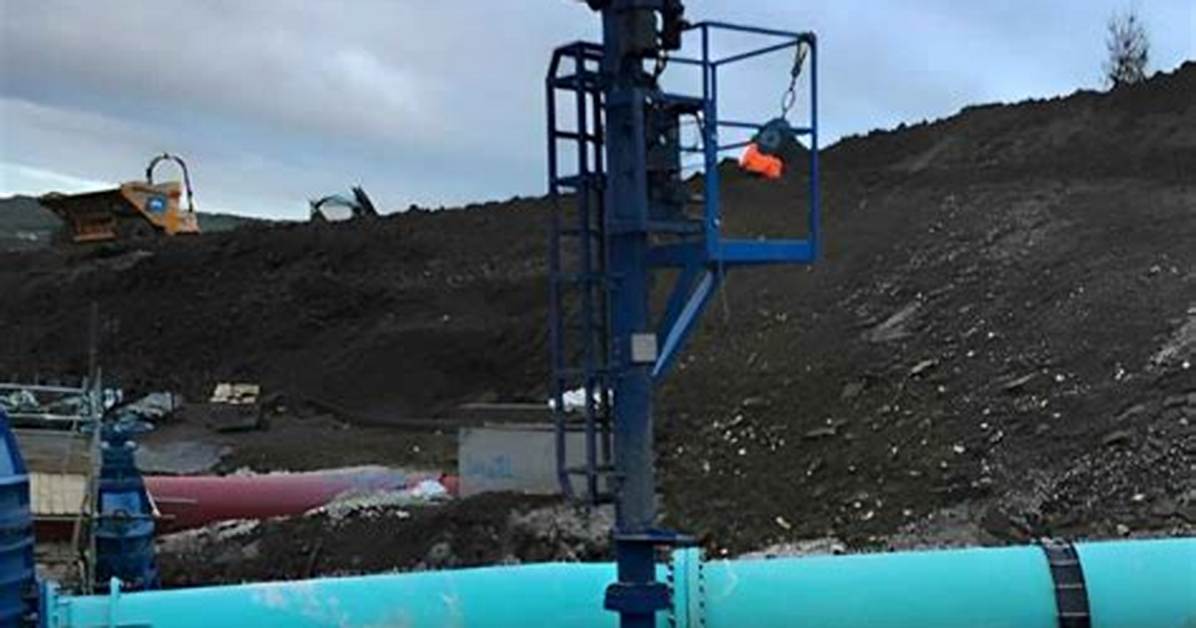

The hot tap procedure involves attaching a branch connection and valve on the outside of an operating pipeline, and then cutting out the pipe-line wall within the branch and removing the wall section through the valve. Hot tapping avoids product loss, methane emissions, and disruption of service to customers.
What is difference between cold tapping and hot tapping?
HOT TAP / COLD TAP PIPELINE
This is done via a coring process on the existing operating pipeline without any interruptions to the flow of medium and system. Cold tap is used for system that carry flammable medium. Cold tap prevents ignition, especially fuel line..
What is the advantage of hot tapping?
Hot tapping is a process that allows pipeline repairs or expansion to be completed without disrupting normal operations or depressurizing the system. The benefit of hot tapping is that sections of pipeline can be isolated and flow can be stopped with minimal downtime and without stopping production.
What is hot tapping and line stopping?
A controlled method to isolate a section of pipeline through inserting a line stop plug into the pipeline while the system continues to operate normally allowing repairs and/or maintenance of critical components downstream.
What is cold tapping?
Cold Tapping is a term used to describe a method of tapping into a live tank, pipeline, tubing, or well casing without the need to do any welding or hot work. Cold taps could be used to safely check for or release unknown pressure or fluid in piping.
What is tie in and hot tapping?
Hot Taps or Hot Tapping is the ability to safely tie into a pressurized system, by drilling or cutting, while it is on stream and under pressure. Typical connections consist.. Tapping fittings like Weldolet®, Reinforced Branch or Split Tee. Split Tees often to be used as branch and main pipe has the same diameters.
How do you hot tap water lines?
You place a hot tap service saddle or sleeve onto the line. You add a valve and test the connection under pressure with a hydrostatic pump. Then you place the hot tap machine onto the value through a water tight packing gland, open the valve and lower the cutter and retention pilot down until it touches the pipe.
Can you hot tap a natural gas line?
Hot Taps can be performed on most any type of pipe, ranging from carbon steel to PVC. Taps are done on lines containing water, oil, gases, fuels, steam, and many other chemicals. Pressures up to 1440 psig at 100º can be Hot Tapped safely with no interruption of service.
What is Live tapping?
Live tapping eliminates these downfalls.
This straightforward process gives you the added benefit of not shutting down service to clients while tapping into a main during normal operational hours as well as virtually unaffected water pressure, keeping your customers happy.
Can you hot tap same size pipe?
Welding of Hot Tap Fitting
The size of set-on branch shall be at least one pipe diameter smaller than the diameter of the run pipe. Full size hot tap connections are not recommended as there is a possibility for the hot tap cutter to cut into the run pipe.
What is a Stopple fitting?
STOPPLE® Fittings are full-branch split tees designed for use with TDW plugging machines. The design has undergone extensive strain-gauge and pulsation testing. The average cyclic lives of the fittings are 30% greater than other designs tested.
What is a gas Stopple?
1. n. [Production] A procedure used in the repair of a pipeline to isolate a section of line in the absence of a shutoff valve.
What is hot tapping in oil field?
Hot tapping, also known as pressure tapping, is a method of connecting (either by drilling or cutting) to a pressurised system, such as a pipeline or pressure vessel, without removing the pipe or tank from service.
How does a Linestop work?
A line stop is performed while the existing main is under pressure. A size-on-size tap is made on the top of the main and a rubber plug or stopper is inserted into the line. The plug is then pumped into the main using a hydraulic ram (the main is supported by the line stop sleeve) which shuts off the water flow.
What is a line stop in a water line?
Line Stop. Line Stops are used to temporarily shut down a pipeline system to complete modifications or repairs. Line Stops allow a system to operate as usual without any interruption of service. Line Stops can be performed on almost any kind of pipe with pressures or product under pressure.
What are pressure taps?
A pressure tap, or static pressure trap, is an opening within the barrier or wall that binds the flow of a material. This material being stopped by the tap may be a gas or liquid that is used to gauge and measure the amount of pressure pushing the material through the system.
