In general, solid cables are better electrical conductors and provide superior, stable electrical characteristics over a wider range of frequencies. They are also considered more rugged and less likely affected by vibration or susceptible to corrosion since they have less surface area than stranded conductors.

Can stranded wire carry more current than solid wire?

Because of its thickness, solid wire has a decreased surface area that reduces dissipation. Because of the given thickness of stranded wire, i.e., it’s thinner, there are more air gaps and a greater surface area in the individual strands of wire. Therefore, it carries less current than similar solid wires can.

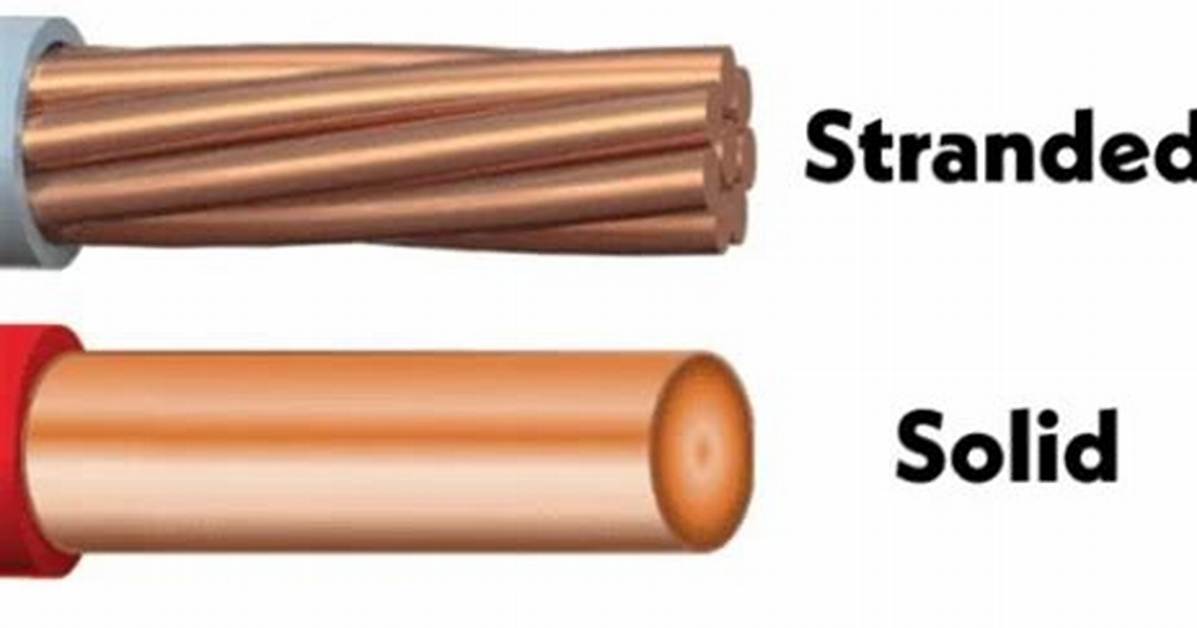

What’s the difference between solid wire and stranded wire?

Solid conductors are more likely to break if subjected to frequent flexing than stranded conductors. Stranded conductors are made of multiple small strands, which group together to make up a single conductor. It is more flexible than a solid conductor, but less durable.

Can I use stranded wire with solid wire?

It is possible to mix a solid and a stranded wire but that does not necessarily mean that you should do it. Connecting a solid copper wire to a stranded wire is a relatively complex process. There is a significant chance that something may go wrong.

Why do houses use solid wire?

When choosing between solid or stranded wire for house wiring, the solid wire offers higher current capacity. Routing. Stranded wires offer superior bendability and flexibility, making them easier to route around obstacles than solid wires. Flexibility.

What is solid wire used for?

Solid wire, also called solid-core or single-strand wire, consists of one piece of metal wire. Solid wire is useful for wiring breadboards. Solid wire is cheaper to manufacture than stranded wire and is used where there is little need for flexibility in the wire.

Is stranded or solid wire more expensive?

Stranded cables are far from perfect. Their diameter is quite large yet they provide a similar carrying capacity as solid cables. They are also more expensive as their production costs are considerably higher than solid cables.

Can stranded wire be used for ground?

The grounding conductor can be bare or insulated, stranded or solid, and must be securely fastened in place and run in a straight line from the discharge unit to the grounding electrode (Photo 2).

Can you use stranded wire on a circuit breaker?

When installing a circuit breaker to protect a circuit, many installation factors must be considered. One of these decisions is to choose the best suited means of connecting the circuit breaker to the load. For molded-case circuit breakers, the most common connection means are solid and stranded wire conductors.

What type of wiring is used in houses?

Wire Gauge

The most common sizes you’ll find in residential work are 14-gauge and 12-gauge. Larger appliances such as electric stoves, electric water heaters, electric dryers and central air units will often use 10-, 8- or even 6-gauge wire.

Does stranded copper wire carry more current than solid?

Current Carrying Capacity of Solid & Stranded Wire

If the diameter of both wires are the same, the solid wire will carry more current than the stranded wire. This is because the cross sectional area of the solid wire is bigger than the stranded wire as there is air-gap between the strands of the conductor in it.

Does stranded wire have less resistance than solid wire?

Stranded wire will have higher resistance than solid wire of the same diameter because the cross-section of the stranded wire is not all copper.

Why are US homes wired using solid wire rather than stranded wire?

Solid wire is cheaper as compared to stranded wire due to its complex process of production. Solid wire carries more power than stranded wire if the diameter of both wires are the same. In other words, for the same size, the ampacity or current carrying capacity of solid wire is more than the stranded wire.

Can you use stranded wire for a light switch?

The stranded wire will be fine. Twist the stranded end of the wire before wirenutting/clamping it together with the solid wire. I’m assuming that it is copper wire, being joined to copper wire with a clamping connector like a wirenut. If you’re using stab-in connectors, you’ll need to use solid wire instead.

What does AWG stand for?

AWG (American Wire Gauge) is a U.S. standard set of non-ferrous wire conductor sizes.

Should you twist stranded cable?

One thing to bear in mind is that twisting strands together can result in the terminal biting onto the conductor as if it was a solid circular conductor (i.e. with a certain amount of space left in the terminal) – any later disturbance can result in the strands re-arranging themself a little and filling some of the

What are the limitations of solid type cables?

The voltage limit for solid type cables is 66 kV due to the following reasons : (a) As a solid cable carries the load, its conductor temperature increases and the cable compound (i.e., insulating compound over paper) expands. This action stretches the lead sheath which may be damaged.

Can I use stranded wire for AC?

Purpose. Solid wires are most commonly used for AC applications that require higher voltage, but stranded wires work best for lower-voltage DC applications. For instance, solid wires are found running through walls to send the highest levels of electrical current to power areas.
