The arterial wave is a rather complex waveform and it can be expressed as a summation of harmonic waves based upon Fourier theorem calculations. To report these pressure changes, the monitoring system must have a frequency response that exceeds the natural frequency of the arterial pulse (1e2.
What is normal arterial waveform?
Pumping by the heart results in the development of pressure in the aorta and the arteries. If the pressure in the aorta is recorded, a pressure wave can be observed.
What information can be gained from the arterial waveform?
Arterial waveforms may provide a deeper insight into overall haemodynamic status. An understanding of the principles of ventricular-vascular coupling is essential. Vasodilatation usually causes lower systolic/diastolic pressures associated with a wide pulse pressure (PP) and delayed dicrotic notch.
What are arterial lines for?
An arterial line is a thin, flexible tube that is placed into an artery. It helps your doctors and nurses check your blood pressure and take blood samples. It is used in operating rooms and intensive care units (ICUs). You may hear it called an “art-line” or “A-line.”
What is arterial line monitoring?
Arterial pressure monitoring is a form of invasive blood pressure monitoring and is done through the cannulation of a peripheral artery. This form of monitoring is commonly utilized in the management of critically ill and perioperative patients.
What is Dicrotic notch mean?
The dicrotic notch is a prominent and distinctive feature of the pressure waveform in the central arteries. It is universally used to demarcate the end of systole and the beginning of diastole in these arteries.
What is a normal arterial line pressure?
Doctors usually consider anything between 70 and 100 mm Hg to be normal. A MAP in this range indicates that there’s enough consistent pressure in your arteries to deliver blood throughout your body.
What does the Dicrotic wave represent?

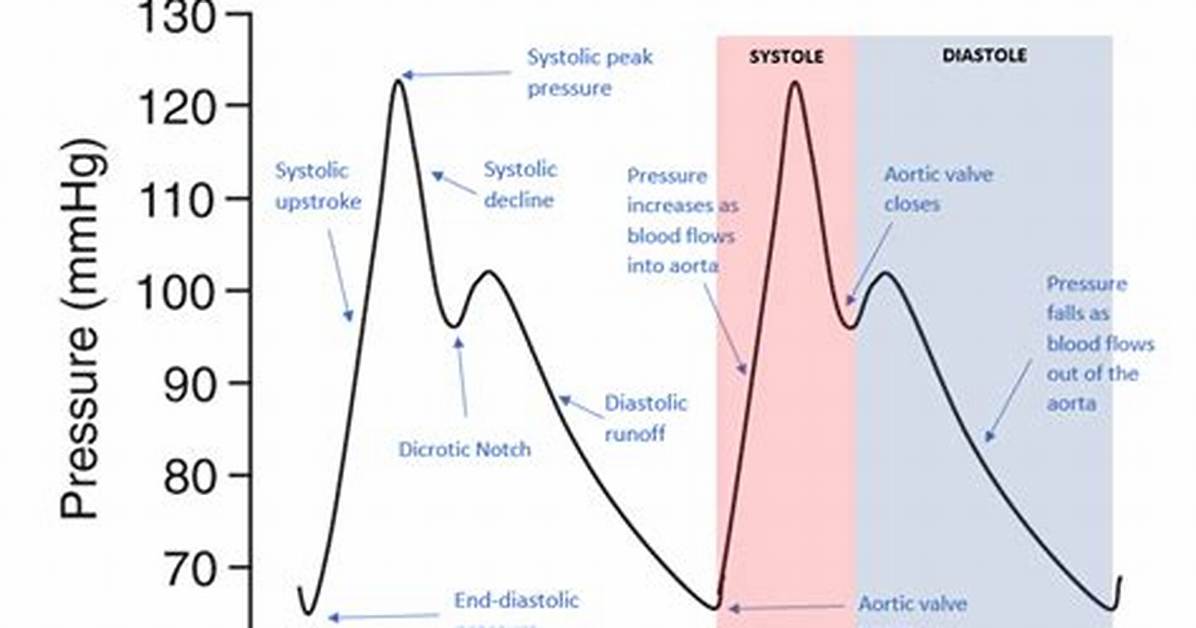

The arterial pulse waveform
The dicrotic notch, which is widely believed to represent the closure of the aortic valve, (but in fact) The diastolic phase, which represents the run-off of blood into the peripheral circulation.
When do you zero arterial line?
The device is zeroed when the air-fluid interface is opened to atmospheric pressure (otherwise it would read diastolic blood pressures of ~ 760mmHg).
What determines arterial blood pressure?
Measurement of arterial pressure is one of the most basic elements of patient management. Arterial pressure is determined by the volume ejected by the heart into the arteries, the elastance of the walls of the arteries, and the rate at which the blood flows out of the arteries.
What does a low Dicrotic notch mean?
A low dicrotic notch is seen in hypovolaemic patients. [v] The slope of the diastolic decay indicates resistance to outflow. A slow fall is seen in vasoconstriction.
What is the difference between a central line and an arterial line?
Arterial lines are different from central lines in several ways. The most obvious difference is that the cannulation is of an artery instead of a vein. As with central line insertion, there are clear indications for the insertion of arterial lines.
Can you give IV fluids through an arterial line?
Why Do I Need Arterial Catheterization? blood pressure can be treated by giving IV fluids (fluid given intravenously or “by vein”) and, in some instances, giving medications to help increase blood pressure (vasopressors, sometimes referred to as “pressors” in the ICU).
Where is arterial line placed?
Arterial lines can be placed in the radial, ulnar, brachial, axillary, posterior tibial, femoral, and dorsalis pedis arteries. In both adults and children, the most common site of cannulation is the radial artery.
