Flow occurs as the fluid “moves” from a state of higher potential energy (head) to lower potential energy (head). Conversely, the opposition to flow created by the pump’s increased head/pressure is measured and expressed as the system-head curve.
What is delivery head in pump?
Expressed more simply, the delivery head is equal to the pressure measured at the discharge port minus the inlet pressure applied at the suction port. The delivery head is generally specified in m. Generally speaking, the delivery head is represented together with the flow rate in the form of the QH curve.
What is pump design head?
There is such a criteria and it is called TOTAL HEAD, and it is defined as the difference in head between the inlet and outlet of the pump. You can measure the discharge head by attaching a tube to the discharge side of the pump and measuring the height of the liquid in the tube with respect to the suction of the pump.
What is pump head flow rate?
Head is the height above the suction inlet that a pump can lift a fluid. It is a shortcut measurement of system resistance (pressure) which is independent of the fluid’s specific gravity. It is defined as the mechanical energy of the flow per unit weight.
What is the head of a fluid?
Fluid head is the height of a column of fluid exerting on its base a pressure equal to the pressure in question.
What is pump head pressure?
What is Head Pressure? Head pressure is a specific type of pressure used in pump systems. It is a measurement of the height difference between the fluid being moved and the discharge point.
What is head in centrifugal pump?
Head—Resistance to Flow
In Newtonian (true) fluids (non-viscous liquids, such as water or gasoline), the term head is the measurement of the kinetic energy that a centrifugal pump creates. Imagine a pipe shooting a jet of water straight into the air. The height that the water reaches is the head.
What is total head in a pump?
The total head of the pump is the difference between the total discharge head (point 2) and the total suction head (point 1). The term “total” indicates that it includes the static pressure head (h), the velocity head (hv), and the elevation head (Z). The equation for total head (pump) can be expressed in Equation 2.
What is pump suction head?
Suction head is the term used to describe liquid pressure at pump suction in terms of height of liquid column. When vapor pressure is also expressed in terms of equivalent height of liquid column, and subtracted from the suction head, the difference is npsh available at the pump suction.

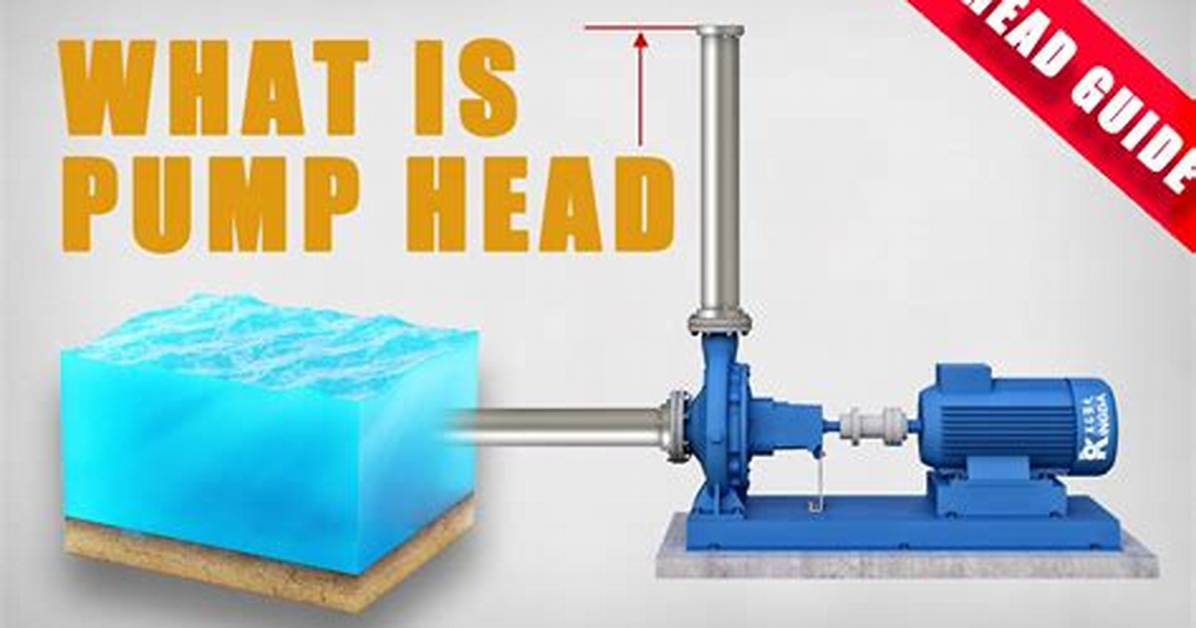

What is pump head height?
The terms “head height” or “lift” are used to indicate this vertical height, measuring how high the water can be pumped for a particular application. Each pump has a published graph showing its flow rate at various heads.
What is impeller in pump?
An impeller is a rotating iron or steel disc with vanes in a centrifugal pump. Impellers transfer energy from the motor that drives the pump to the fluid being pumped by accelerating the fluid radially outwards from the centre of rotation.
What is meter head?
Definition of head meter
: a flowmeter whose operation is dependent upon change of pressure head.
What is Max head on a pump?
Max Head refers to a pump’s capability to push water upwards (also known as ‘vertical lift’). What is often overlooked is that at its max head lift, the pump will deliver zero flow!
Why is pump head a function of flow rate?
The maximum head (shut-off head) is achieved at a flow rate of zero. Increasing flow rate introduces friction into the system as the liquid travels along the pipes from the suction tank to the pump and from the pump into the discharge pipe. This friction reduces the amount of total head that the pump can produce.
