2G plate and Pipe Welding Position
In this position, the workpiece is placed parallel to your body when welding. Thus the workpiece remains in front of you when welding. This position can be used to achieve either a fillet or groove weld. For a fillet weld, the torch will be held at a 45-degree angle.
What welding position is 4G?
4: Overhead
With this key in mind, what 4G mainly covers is Overhead Groove Welding. Meaning, the ability of welding metals to be joined together in an overhead position. Since this is the fourth, that most likely means that it is the hardest to do from the rest of the welding positions.
What position is a 3G weld?
Welding in a 3G position means moving the torch vertically, up and down across a surface. This is in contrast with 1G (flat surface welding), 2G (horizontal welding), and 4G (overhead ceiling welding).
What is 5G welding position?
5G Pipe Welding Position. 5G welding position is a situation where the pipe is in the horizontal or X-axis position, but the pipe is stationary or cannot be rotated. The welder performs the welding while moving it around the pipe. This situation is almost the same as the 1G situation; only the pipe cannot be rotated.
What is 2G welding test?
A 2G weld test checks your proficiency at producing welds that meet specific criteria for the finished weld and includes: Welding two horizontal beveled plates. Proper setup. Making the weld with or without a backer plate.
What do 2G welding symbols mean?

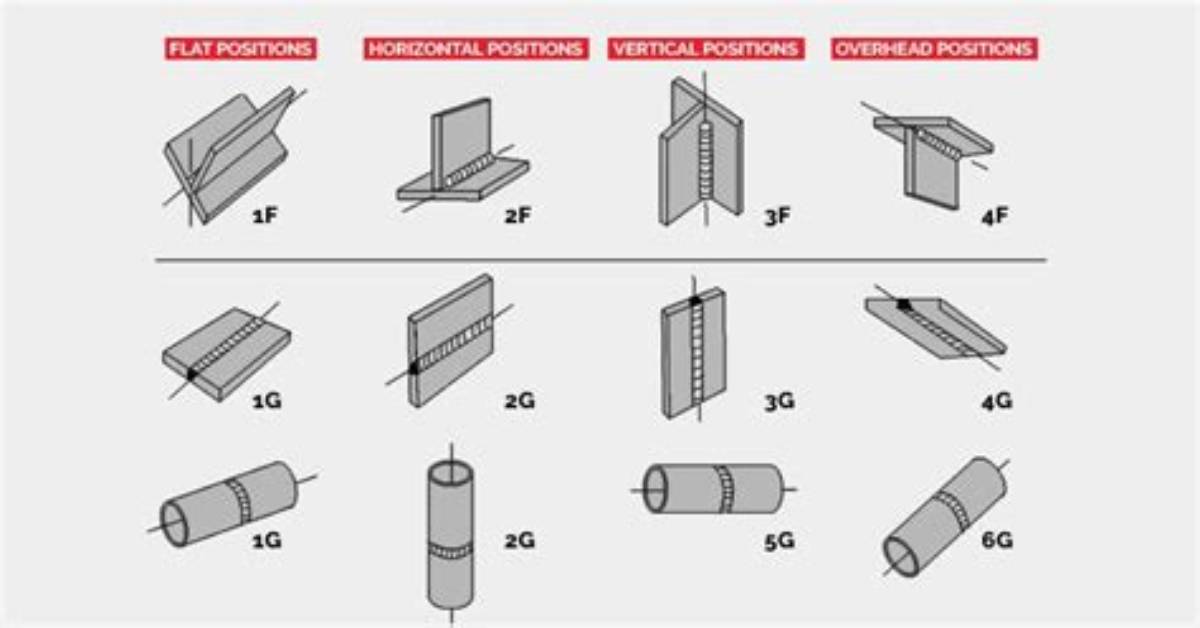

Aside from that, there are specific letters for fillet and groove welds like positions 1F, 2F, 3F, and 4F are used for fillet connections, whereas 1G, 2G, 3G, and 4G are used for groove connections. The 2G welding position is one in which the pipe is vertical and the weld axis is horizontal.
What is 1G 2G in welding?
The positions of groove welds are divided into 1G, 2G, 3G, 4G, 5G and 6G, respectively indicating flat welding, horizontal welding, vertical welding, overhead welding, horizontal fixed welding of pipeline and 45 °inclined fixed welding of pipeline.
What is 6G in welding?
The 6G pipe weld is one of the most difficult weld certification tests to pass because the pipe is at a 45-degree angle and immovable. Welders performing the 6G certification test must weld in all positions including horizontal, vertical and overhead, and may have to weld both right-handed and left-handed.
What is 2F and 3G means in welding?
2 refers to a horizontal position – either 2F or 2G. 3 is a vertical position – either 3F or 3G. 4 is an overhead position – either 4F or 4G.
What is 8g welding position?
Perform welds using GMAW. Gas metal arc welding (GMAW) to code standard carried out using a range of materials. The person would work autonomously or in a team environment using predetermined standards of quality, safety and welding procedures.
What is 5G & 6G weld?
Different Pipe Welding Positions
There are mainly four types of pipe welding positions- 1G – Horizontal Rolled Position. 2G – Vertical Position. 5G – Horizontal Fixed Position. 6G – Inclined Position.
What is a 3G weld test?
The 3G welding certification qualifies a welder to weld flat, horizontal, and vertical or 1G, 2G, and 3G positions, also includes the 1F, 2F, and 3F positions without having to take the 1G and 2G certification. This one test qualifies you for three positions. These are the positions most commonly used in welding shops.
What is the hardest welding test?
The hardest and most advanced welding test is the 6G Pipe Weld. This requires a great deal of technical expertise as you’ll be required to move around the pipe as you weld. The pipe is placed in a fixed position and tilted at an angle of 45 degrees.
What is a 4G welding test?
1 4G welding certification certifies you to do fillet welds in the 1F, 2F, and 4F test positions plus groove welds in the 1G, 2G, and 4G positions but it does not certify you to weld in the 3F and 3G positions.
