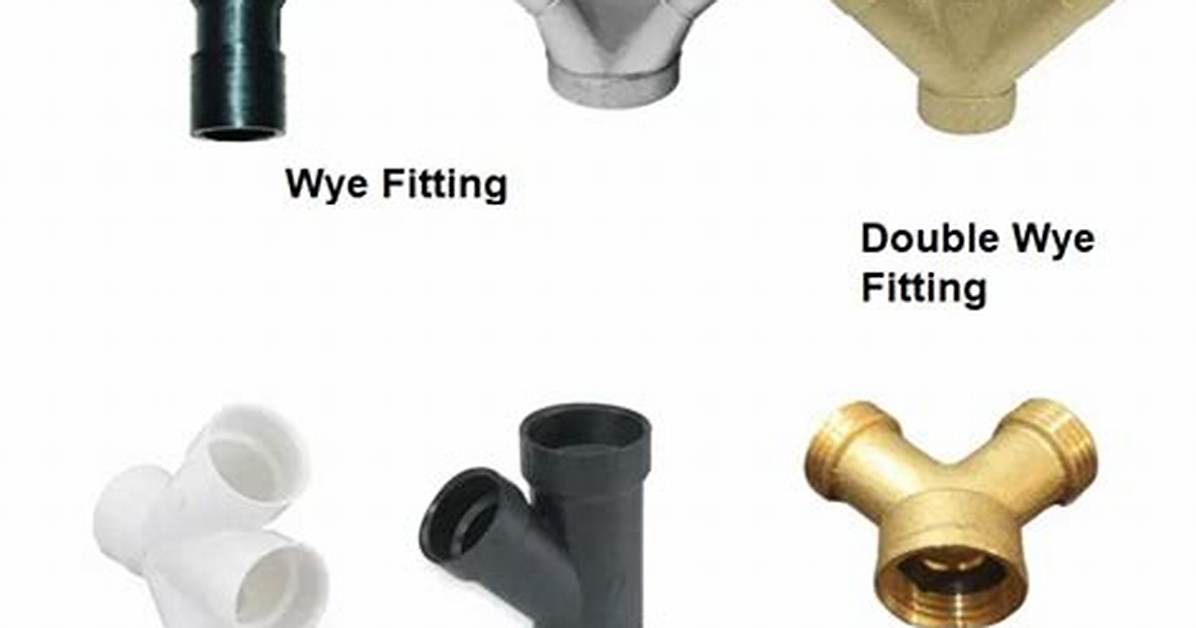

A fitting with three openings, a wye is used to create branch lines. It is a type of tee fitting which has the side inlet pipe entering at a 45° angle, or an angle other than 90 degrees. A standard wye is a “Y” shaped fitting which allows one pipe to be joined to another at a 45 degree angle.
Why is it called a wye fitting?
A fitting with a trunk coming up that splits to a 45º branch left and right is called a TRUE WYE, because it resembles a “capital letter Y” as we learned to draw it in grade school. Plumbers work extensively with PVC and ABS.
What is the difference between a sanitary tee and a Wye?
Sanitary tees are used to connect horizontal lines to vertical lines. But wyes are used to connect vertical lines to horizontal lines. You can also use wyes to combine or split horizontal lines.
What is Wye in piping?
Pipe wyes are used to to allow one pipe to join another pipe at some degree or angle. As the name suggests, the pipe wyes are Y-shaped pipe fitting devices. They are a popular type of pipe fitting used in various industrial applications. Pipe wyes and pipe tees: Pipe wyes are similar to pipe tees.
Can a Wye lay on its side?
Horizontal Drains Can Combine Through Wye Laying Flat, Or Can’t They? Bookmark this question. Show activity on this post. IPC TABLE 706.3 “fittings for change of direction” says wye is okay for horizontal to horizontal.
Should I use a wye or a tee?
Sanitary tee is used for horizontal to vertical transition, and Wye is used for combining 2 lines into one horizontal line to maintain a flow without causing clogging. Both of these fittings have different usage and can not be switched.
Can a wye be used vertically?
Connecting a trap to a vertical drain with a wye fitting and a 45-degree elbow seems like a good idea. But it’s not. As water drains down the steep slope at the wye, it can create a siphon effect such that water will be sucked out of the trap. And the empty trap will allow sewer gas to flow into your home.
What angle is a Wye?
A wye joins branch lines. The side inlet pipe enters at a 45 degree angle. One pipe can be joined to another at a 45 degree angle with a standard wye.
Can a toilet drain into a tee?
Answer: You can use your tee for a toilet but in certain cases. You have to make sure all the toilets are vented and the tee is used to vent. Otherwise, it will cause the water to flow on the opposite side.
What is a double wye used for?
Double Wye HxHxHxH
Installed in a vertical PVC DWV piping system to allow for a smooth transition from two horizontal branch lines into the vertical drainage line. Often used with a threaded fitting cleanout adapter and plug, to allow access to the piping system.
What is cross pipe fitting?
Pipe crosses, also known as four-way fittings, have one inlet and three outlets and often feature solvent-welded socket, or female-threaded ends. The ends are positioned at 90-degree angles and the threads are designed to create a stable grip and secure connection to male pipe fittings.
What is a lateral fitting?
A lateral pipe tee means a pipe fitting which is similar to a tee but has a side opening outlet branch at a 45 degree angle. It is a kind of steel pipe tee,but the branch direction is different with the straight tee.
What is AP trap?
In a nutshell, a p-trap is a u-shaped bend in the waste pipe that connects a sink’s drain to a home septic tank or to a municipal sewer system. Under normal circumstances, p-traps always contain some water.
Can a double wye be used horizontally?
A double-wye fitting may be used in horizontal drain lines.
Can you use a sanitary tee for horizontal drain?
A sanitary tee should be used when connecting a horizontal run, such as a waste arm to a vent stack or vertical riser.
Can you use a sanitary tee on its back for a vent?
Sanitary tee can be on its back for dry vent, but the vent has to be a vertical dry vent.
