A manometer is an instrument used to measure and indicate pressure.
What is the equation for differential manometer?
To calculate the difference in pressure, multiply the difference in height by the density of the gas and the acceleration due to gravity. The final units should be in pascals.
What is the formula for gas pressure?
The equations describing these laws are special cases of the ideal gas law, PV = nRT, where P is the pressure of the gas, V is its volume, n is the number of moles of the gas, T is its kelvin temperature, and R is the ideal (universal) gas constant.
What is G in PGH?

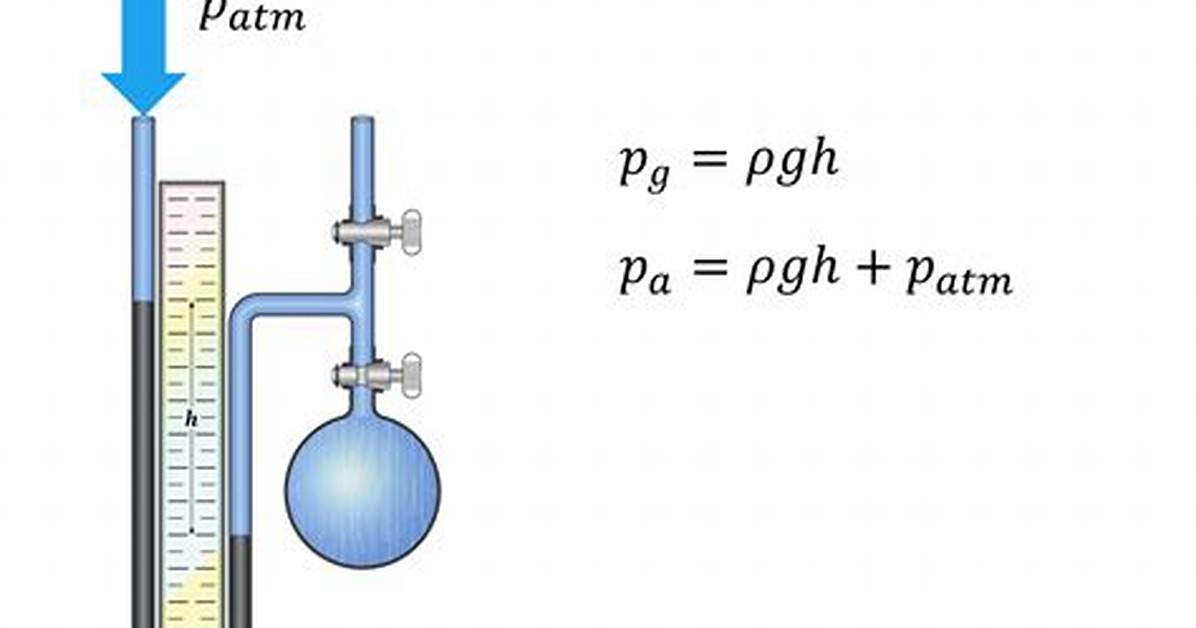

P = F/A = pgh
Where F is weight of the liquid in the container, p is liquid density, g is gravity. Note that this equation can also be derived from the Bernoulli’s Equation. Also note that that pressures of the fluid at different depths are different does not go against Pascal’s principle.
What is a manometer chemistry?
A manometer is a device similar to a barometer that can be used to measure the pressure of a gas trapped in a container. A closed-end manometer is a U-shaped tube with one closed arm, one arm that connects to the gas to be measured, and a nonvolatile liquid (usually mercury) in between.
Where are manometers used?
What are the applications of a manometer?
It can be used for pressure monitoring applications.It can also be used to monitor the air and gas pressure for the compressor.A manometer can be used to measure the static pressure and vacuum.Mercury absolute manometers are used in power plants.
What is simple manometer?
SIMPLE MANOMETER
A simple manometer consists of a glass tube having one of its ends connected to a point. where pressure is to be measured and other end remains open to atmosphere.
What is total pressure and Centre of pressure?
The total pressure is defined as the force exerted by a static fluid on a surface (either plane or curved) when the fluid comes in contact with the surface. This force is always normal to the surface. The center of pressure is defined as the point of application of the resultant pressure on the surface.
What is single column manometer?
Single column manometer is a modified form of a U-tube manometer in which one side is a large reservoir and the other side is a small tube, open to the atmosphere. There are two types of single column manometer: 1- Vertical single column manometer. 2- Inclined single column manometer.
